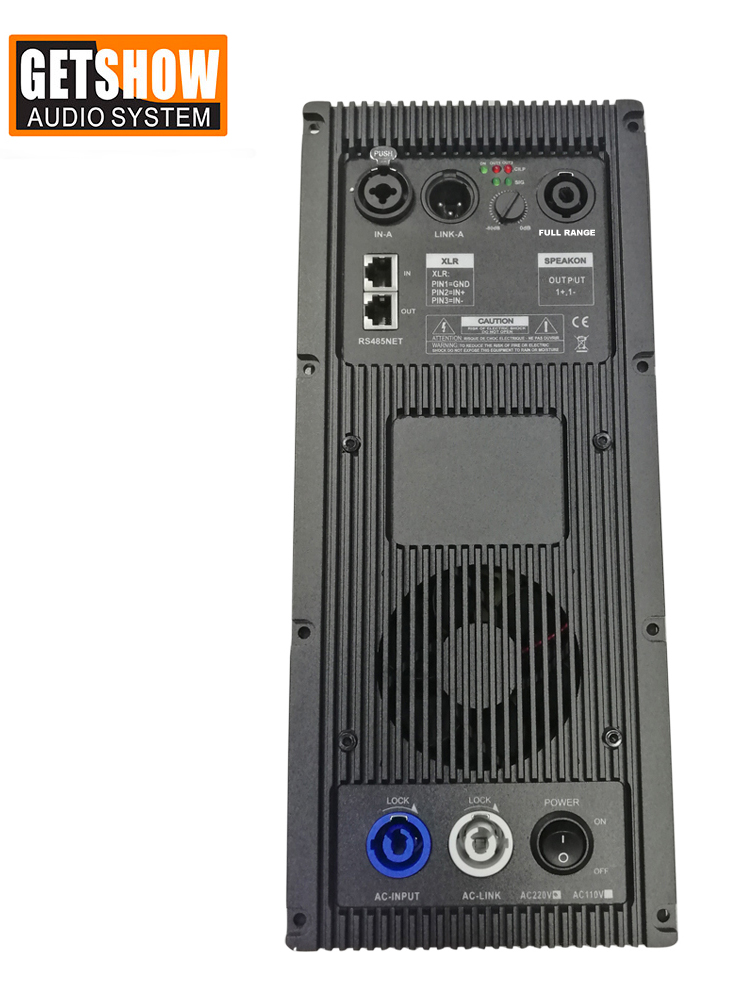

800W+300W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP

*Professional CLASS-D amplifier.

*Built-in high-performance 48KHZ DSP audio processor, RS485 online or network adjustment.

* Free Software is offered

*110-230v general working voltage

*Full sealed with the box, can be installed without a partition.

*Widely used in professional speaker, line array speaker

Specification:
Model:DSP830
Rated power 8Ω :400w+150w
Rated Power 4Ω :800w+300w
Frequency Response :DSP Control
THD 1KHZ :≤0.5
Damping Factor :>200
Slew Rate :>20V/us
S/N >95dB
Sensitivity :0.775V
Input Impedance :Balance 20K, Unbalance 10K
Output Topology :CLASS-D
Protection :Short circuit, DC, Overheat, Peak Pressure Limit, Soft Start
Voltage :AC110-240V/50Hz-60Hz voltage-selected switch
