Amplifier
Specification
Design for Pros, Musicians, DJs----the best Class D amplifier module to fit your sound system.
With RCE Audio amplifiers Modules, creating a sound stage has never been so easy...
| Specification | ||
| LF | HF | |
| Rated Power@8ohm/1KHz : | 800W | 300W |
| Rated Power@4ohm/1KHz : | 1200W | 500W |
| Frequency Response : | 20Hz-20Hz±1dB | 20Hz-20KHz±1dB |
| THD% 10%Rated power,1KHz : | <0.05% | <0.05% |
| Slew Rate Rated Power,1KHz : | >40v/μs | >40v/μs |
| Damping Factor Rated Power,1KHz : | >400 | >400 |
| Dynamic Range : | ≥95dB | ≥95dB |
| S/N : | ≥95dB | ≥95dB |
| Sensitiy Range Power,1KHz : | 1.2V | 1.2V |
| Input Impedance : | Balance 20K/Unbalance10K | Balance 20K/Unbalance10K |
| Protection : | DC,Overheat,Short Circuit,Pressure Limit | |
| CooIing : | Smart Fan Cooling System, Variable speed fans | |
| Output Circuit : | CLASS-D | CLASS-D |

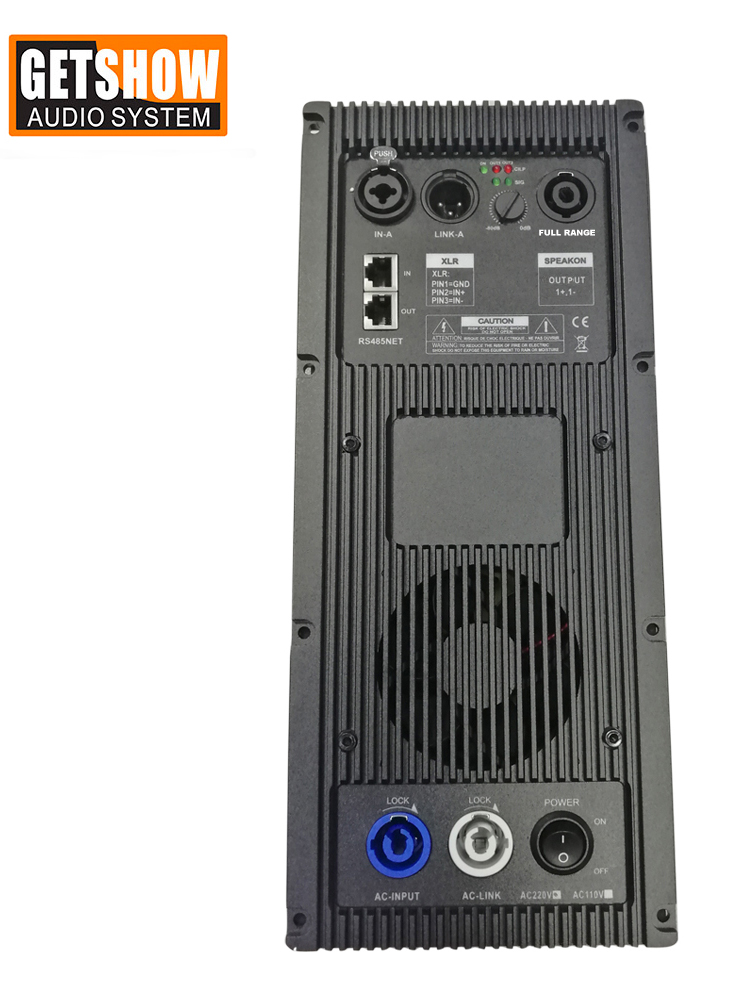

| Iput/Output Connector : | XLR+SPEAKON+JACK(OPTIONAL) | |
| Voltage : | AC100V---240V/50Hz~60Hz | |
