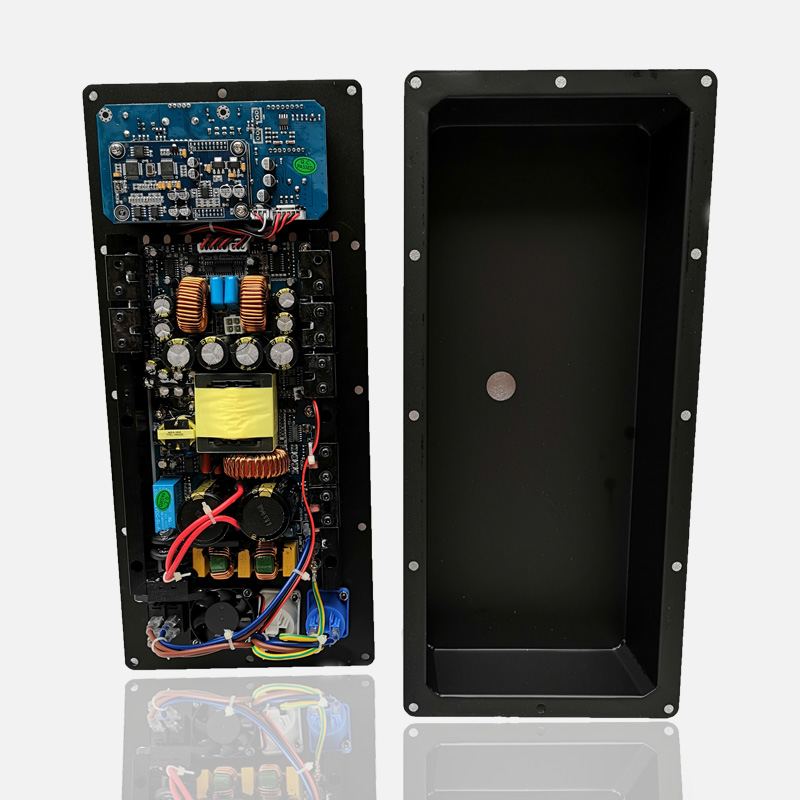

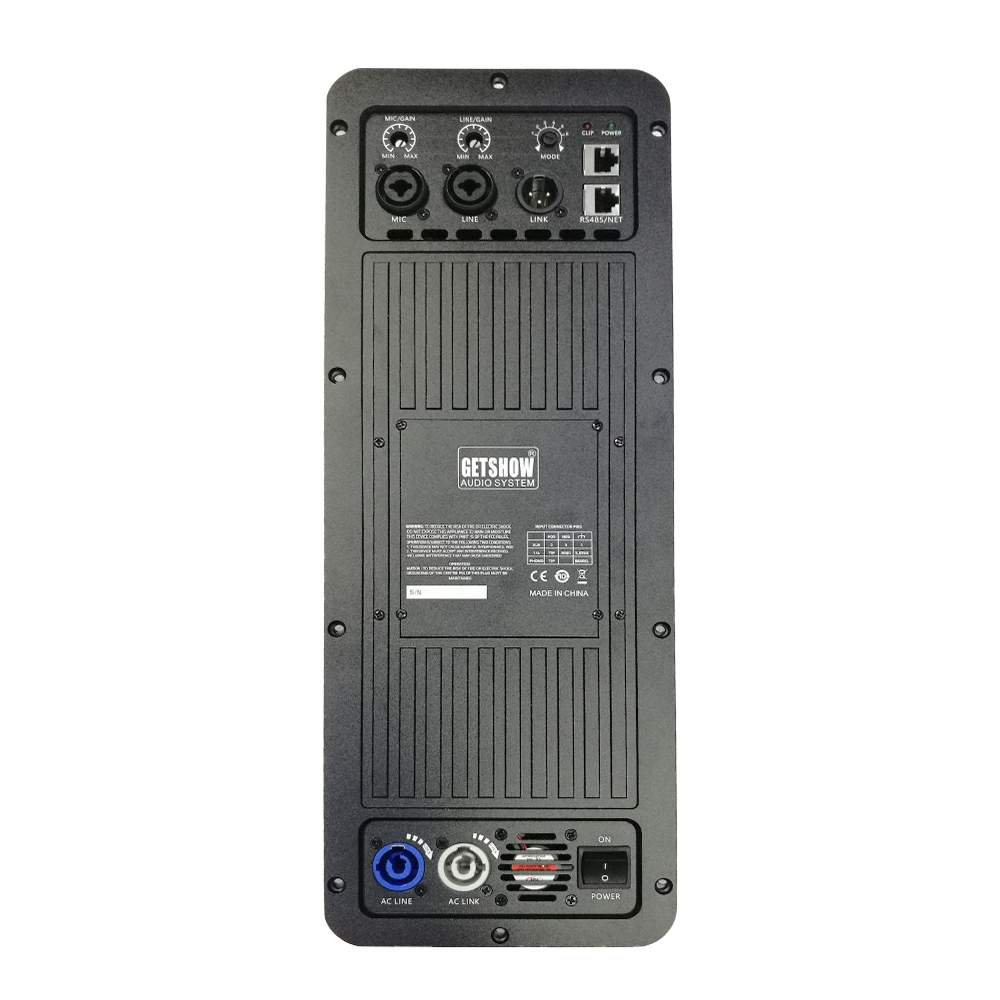

DSP 1232 1500W+600W+600W 3 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP

  • Model Number: DSP1232
  • Brand Name : GETSHOW
  • Type: Power Amplifiers
  • Origin: Mainland China
  • Product description:
  • INQUIRY

Specification

1500W+600W+600W 3 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP

*Professional CLASS-D amplifier.

*Built-in high-performance 96KHZ DSP audio processor, RS485 online or network adjustment.

* Free Software is offered

*110-230v general working voltage

*Full sealed with the box, can be installed without a partition.

*Widely used in professional speaker, line array speaker

Specification:
Model:DSP 1232
Channel 1 Rated Power 8Ω/4Ω1200W/1500W
Channel 2&3 Rated Power 8Ω/4Ω450W*2/600w*2
Frequency ResponseDSP Control
THD 1KHz≤0.5
Damping Factor>200
Slew Rate>20v/us
S/N>95dB
Sensitivity0.775v
Input ImpedanceBalance 20K, Unbalance
Output TopologyCLASS-D
ProtectionShort circuit, DC, Overheat, Peak Pressure Limit, Soft Start
VoltageAC110-240V/50Hz-60Hz voltage-selected switch
