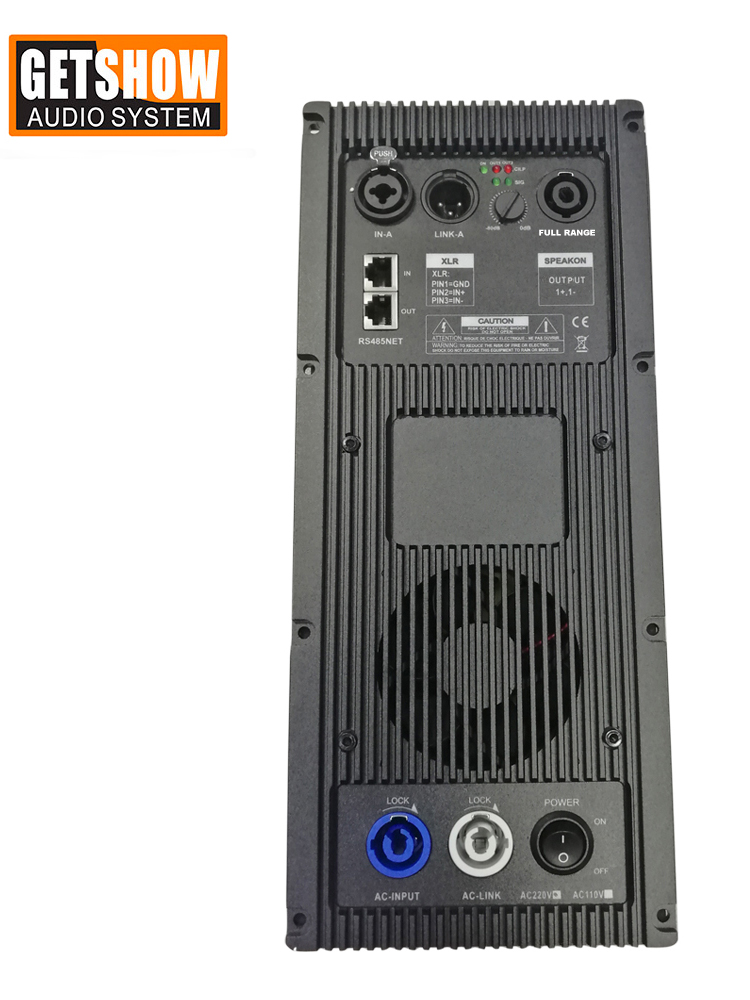

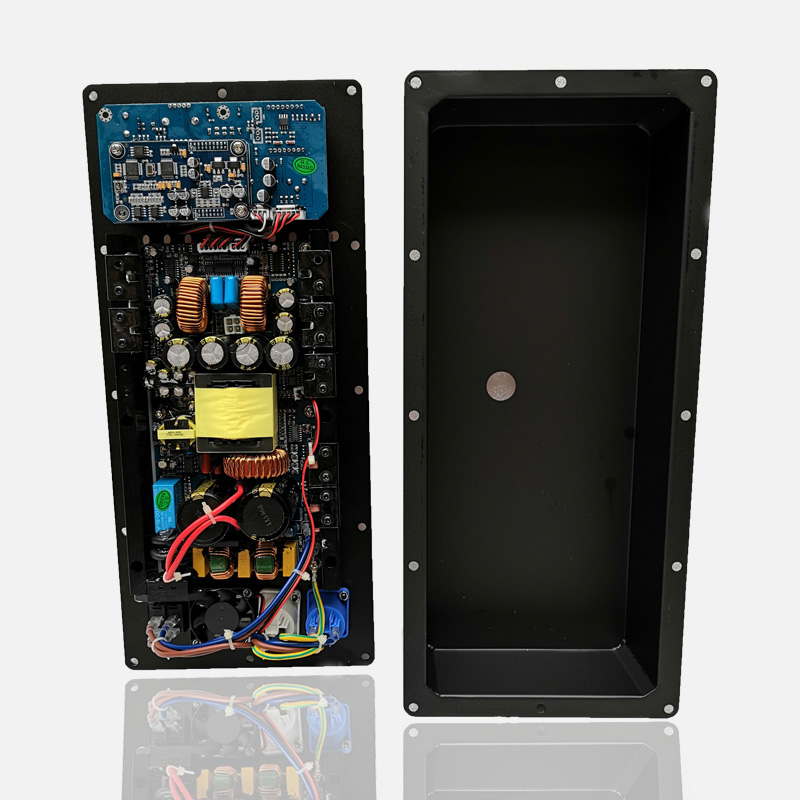

D-1800s Digital Subwoofer Plate Amplifier 800W RMS Class D 1 input 1 output Amplifier Board - 副本 - 副本
- Package: Yes
- Model Number: D1800S
- Maximum Power Per Channel: Above 200W
- Origin: Mainland China
- Product description:
Specification
Design for Pros, Musicians, DJs----the best Class D amplifier module to fit your sound system.
With RCE Audio amplifiers Modules, creating a sound stage has never been so easy...
| Specification: | |
| Model: | D-1800S |
| Output @8Ω/1KHz | 800w |
| Output @4Ω/1KHz | 1200w |
| Frequency Response | 20Hz-20KHz±1dB |
| THD (10% RMS,1KHz) | <0.5% |
| Slew rate(RMS,1KHz) | >20v/μs |
| Damping Factor(RMS,1KHZ) | >200 |
| Dynamic Range | ≥95dB |
| S/N ratio (A-weighted,RMS) | ≥95dB |
| Sensitivity(RMS,1KHz) | 1.28V rms |
| Voltage gain | 42dB |
| Input impedance | Balanced: 20K, Unbalanced: 10K |
| N/W | 2.4Kg |
| Average power consumption (music program) | 480w |
| Output circuit design | CLASS D |
| Protection | Pressure limit, overheating, Short Circuit, DC, Switch no shock |
| Dimensions | 332*142*85mm |
| Power supply | AC100v---220V/50Hz~60Hz(Optional) |
