Amplifier

  • dsp1203 Digital Subwoofer Plate Amplifier 800W RMS Class D 1 input 1 output Amplifier Board - 副本
  • dsp1203 Digital Subwoofer Plate Amplifier 800W RMS Class D 1 input 1 output Amplifier Board - 副本

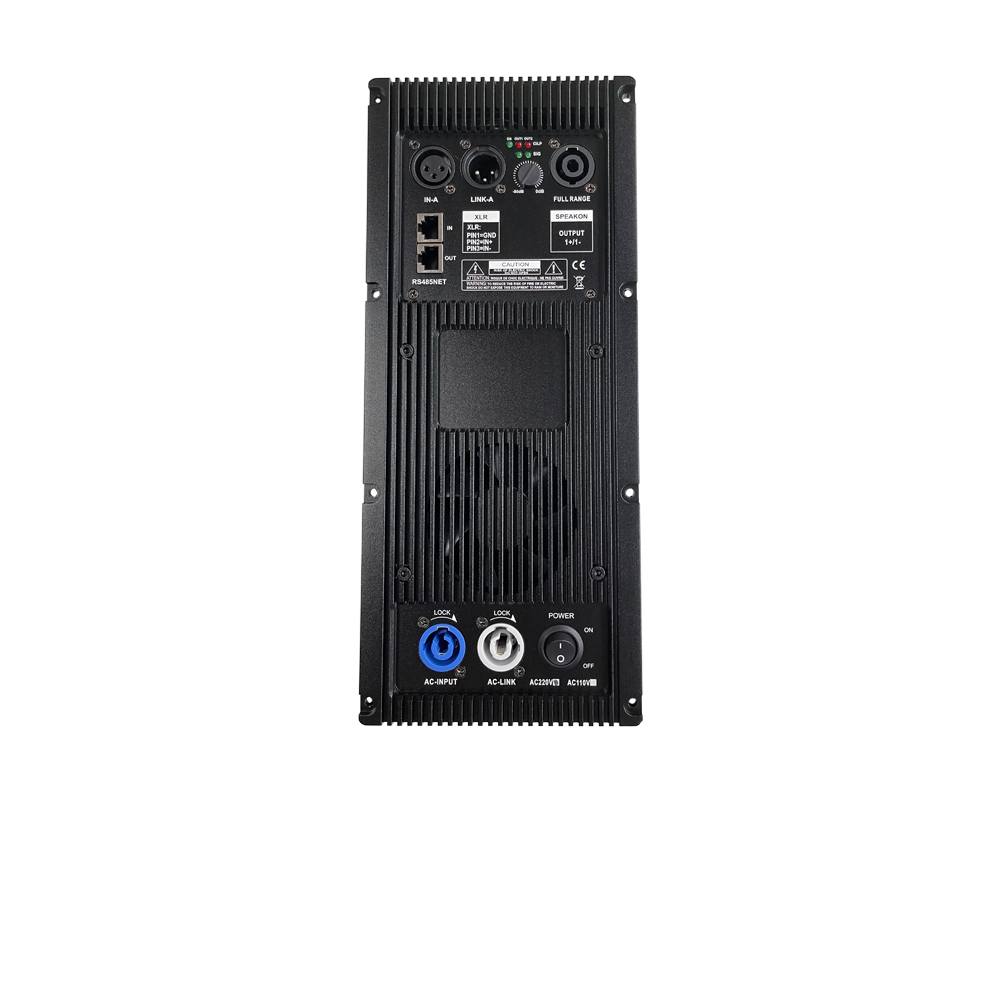

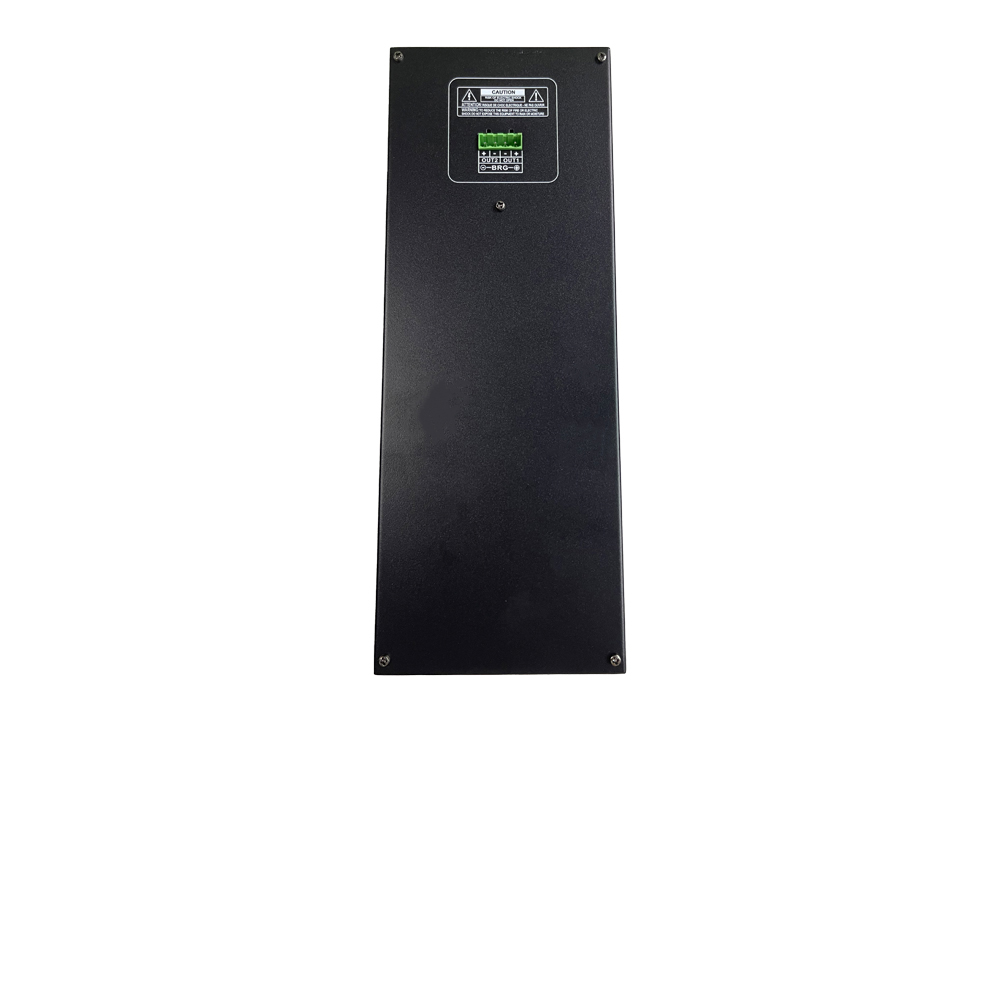

dsp1203 Digital Subwoofer Plate Amplifier 800W RMS Class D 1 input 1 output Amplifier Board - 副本dsp1203 Digital Subwoofer Plate Amplifier 800W RMS Class D 1 input 1 output Amplifier Board - 副本

dsp1203 Digital Subwoofer Plate Amplifier 800W RMS Class D 1 input 1 output Amplifier Board - 副本

  • Package: Yes
  • Model Number: D1800S
  • Maximum Power Per Channel: Above 200W
  • Origin: Mainland China
  • Product description:
  • INQUIRY

Specification

Design for Pros, Musicians, DJs----the best Class D amplifier module to fit your sound system.

With RCE Audio amplifiers Modules, creating a sound stage has never been so easy...

Specification:
Model:DSP1203
Output @8Ω/1KHz800w
Output @4Ω/1KHz1200w
Frequency Response20Hz-20KHz±1dB
THD (10% RMS,1KHz)<0.5%
Slew rate(RMS,1KHz)>20v/μs
Damping Factor(RMS,1KHZ)>200
Dynamic Range≥95dB
S/N ratio (A-weighted,RMS)≥95dB
Sensitivity(RMS,1KHz)1.28V rms
Voltage gain42dB
Input impedanceBalanced: 20K, Unbalanced: 10K
N/W2.4Kg
Average power consumption (music program)480w
Output circuit designCLASS D
ProtectionPressure limit, overheating, Short Circuit, DC, Switch no shock
Dimensions332*142*85mm
Power supplyAC100v---220V/50Hz~60Hz(Optional)
