Amplifier

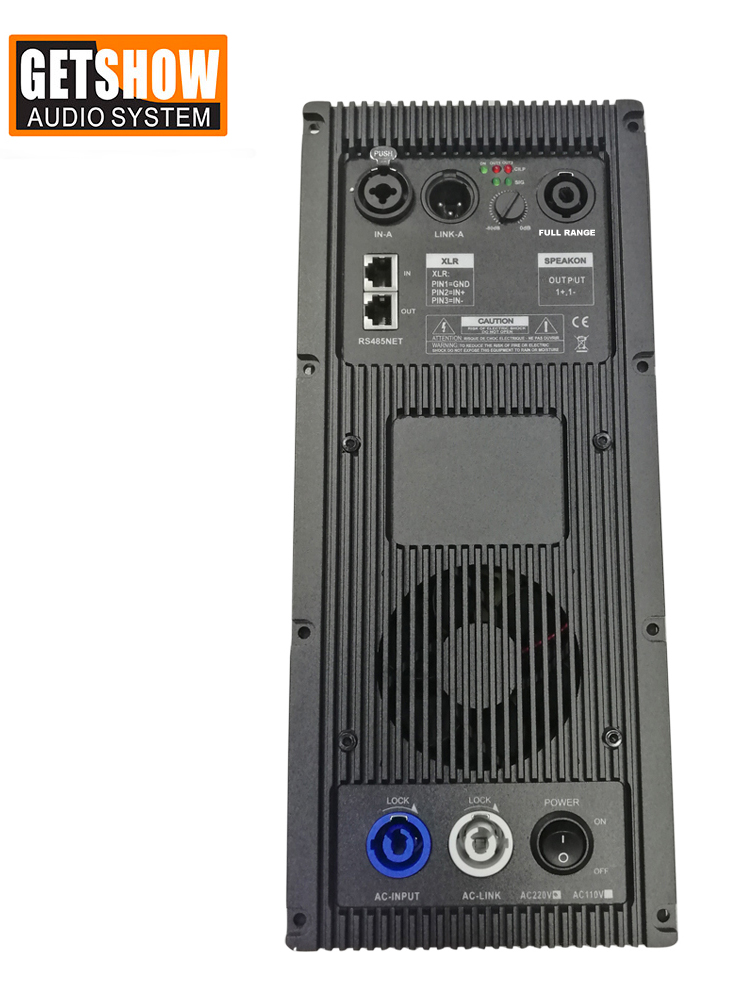

AV2400 GETSHOW 2400W Subwoofer Amplifier Module Professional Speaker Plate Amplifier Class D
- Bundle Bundle 2
- Model Number AV2400
- Type Power Amplifiers
- Origin: Mainland China
- Product description:
GETSHOW 2400W 4 OHM Subwoofer Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
Functions:
XLR and RCA stereo music signal input and RCA signal OUTPUT LEF full band width,OUTPUT signal OUTPUT is low frequency
bandwidth,LINK outputs XLR balancing signals.With three gears switch ,ON state is always open,AUTO means no signal will automatically enter standby function for 15 minutes,OFF means always in standby (power amplifier does not start)
Phase stepless adjustment,0-1800 arbitrary selection.
Independent frequency regulation, 30-200 Hz
bandwidth,built-in 24 dB OCT
Full analog signal processing,Panel has
accurate signal indicator light,limit indicator light.
Size: 260 x 240 x 40 mm
Speaker opening size: 224 x 204 x 40 mm
Applications:Professional active subwoofers,theater and home active subwoofers.
Specification:
RMS Power: 1600W@8 ohm; 2400W@4 ohm
| Specification: | |
| Model: | AV2400 |
| Output @8Ω/1KHz | 800w |
| Output @4Ω/1KHz | 1200w |
| Frequency Response | 20Hz-20KHz±1dB |
| THD (10% RMS,1KHz) | <0.5% |
| Slew rate(RMS,1KHz) | >20v/μs |
| Damping Factor(RMS,1KHZ) | >200 |
| Dynamic Range | ≥95dB |
| S/N ratio (A-weighted,RMS) | ≥95dB |
| Sensitivity(RMS,1KHz) | 1.28V rms |
| Voltage gain | 42dB |
| Input impedance | Balanced: 20K, Unbalanced: 10K |
| N/W | 2.4Kg |
| Average power consumption (music program) | 480w |
| Output circuit design | CLASS D |
| Protection | Pressure limit, overheating, Short Circuit, DC, Switch no shock |
| Dimensions | 332*142*85mm |
| Power supply | AC100v---220V/50Hz~60Hz(Optional) |
