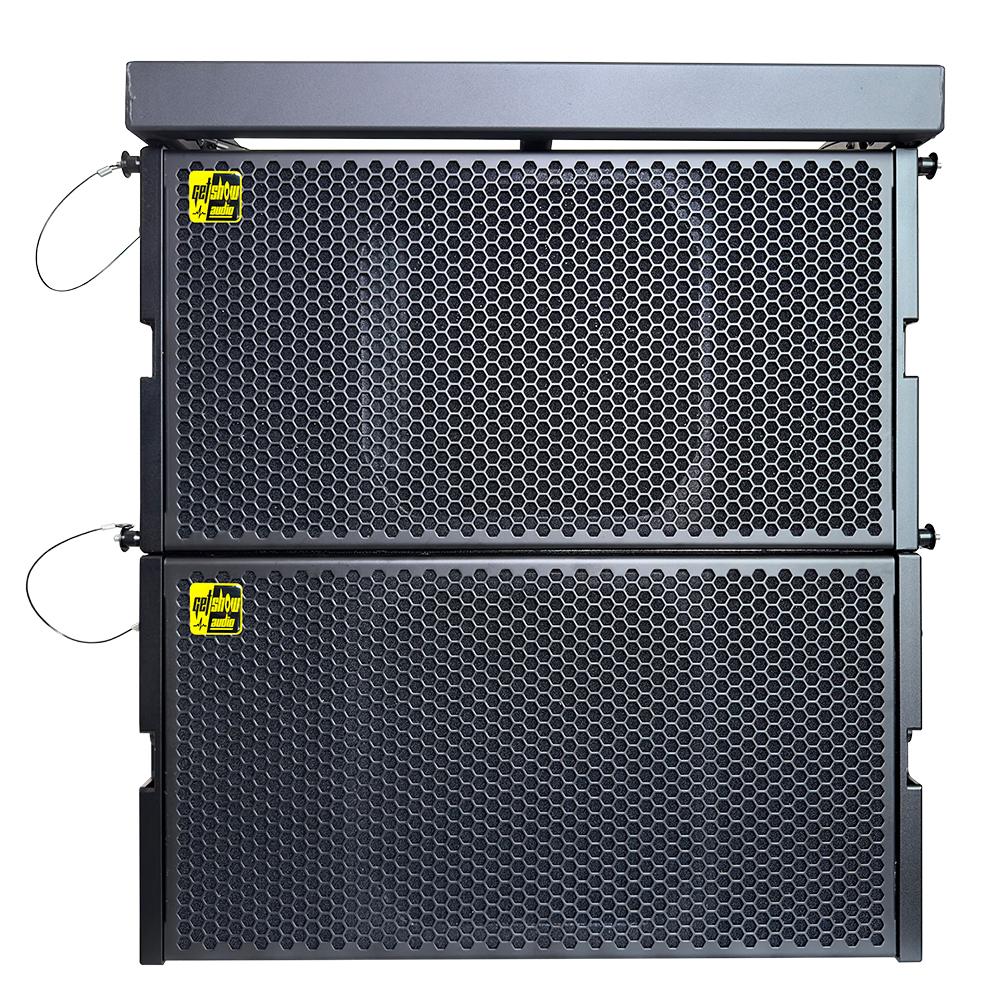

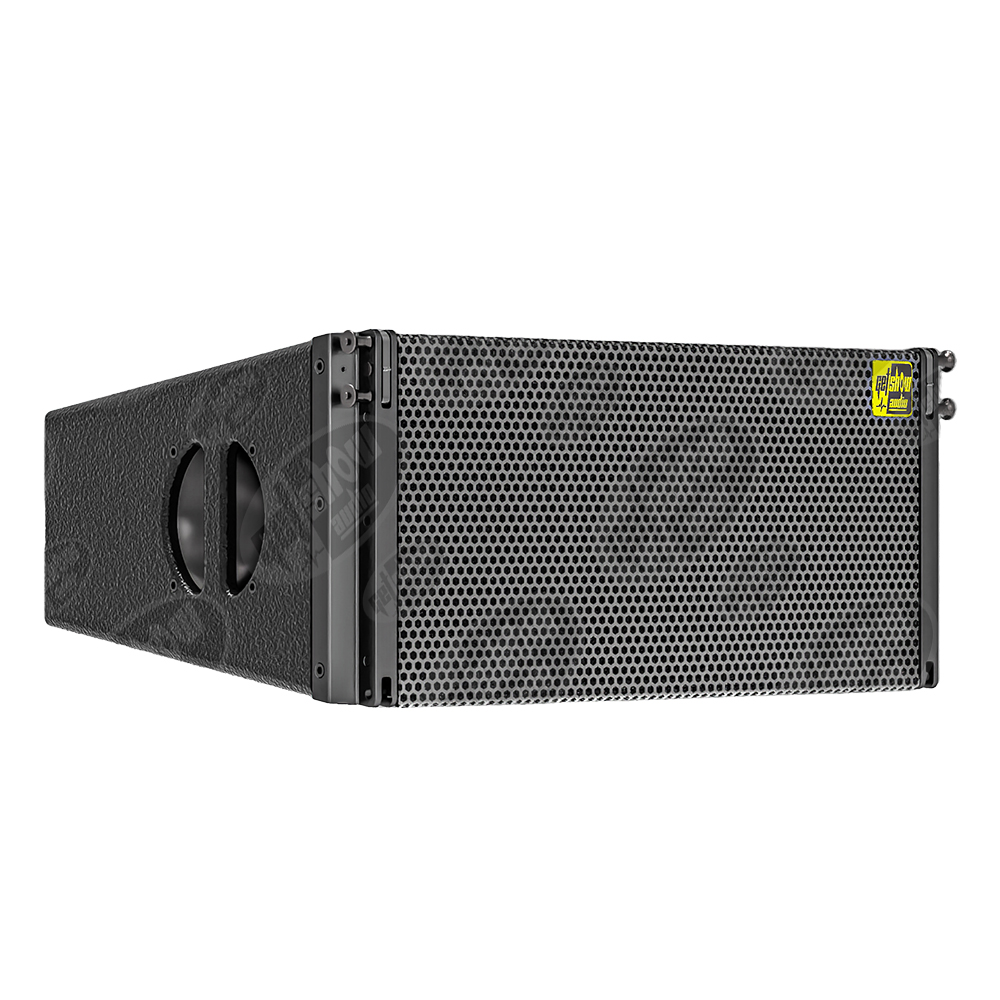

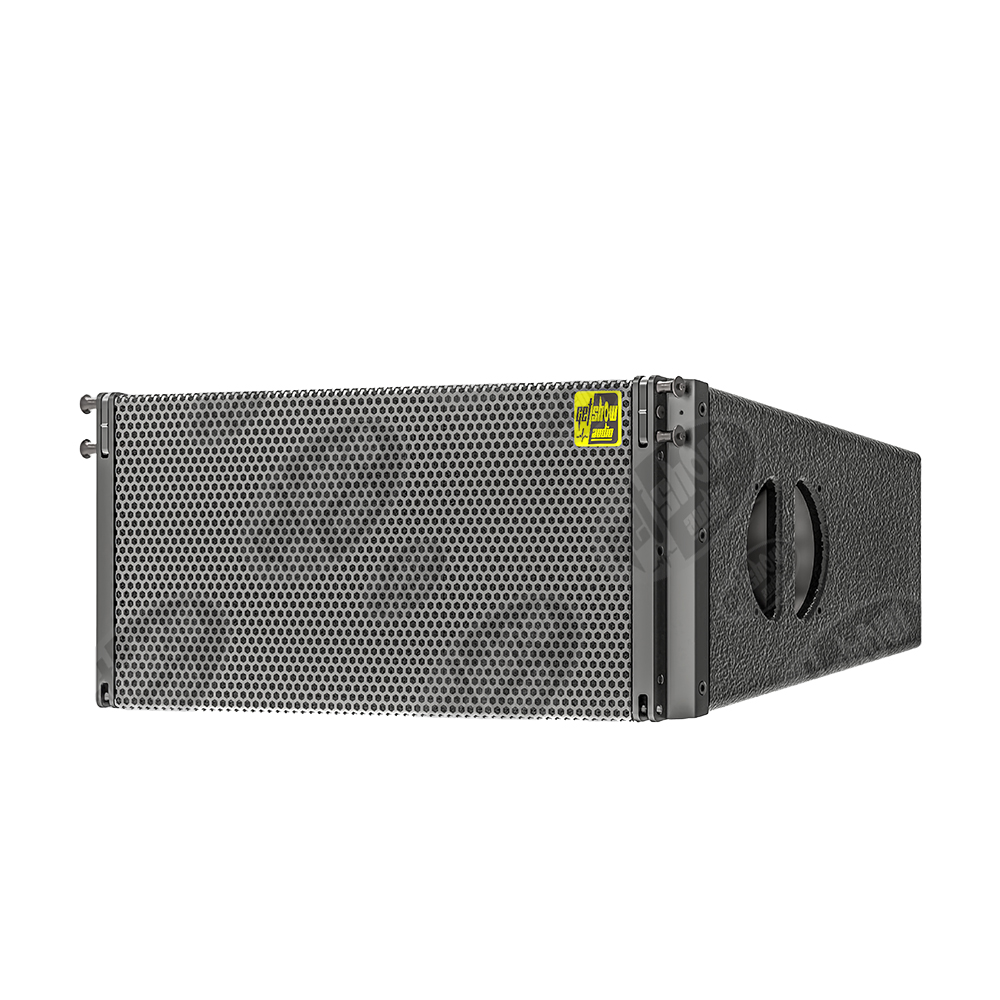

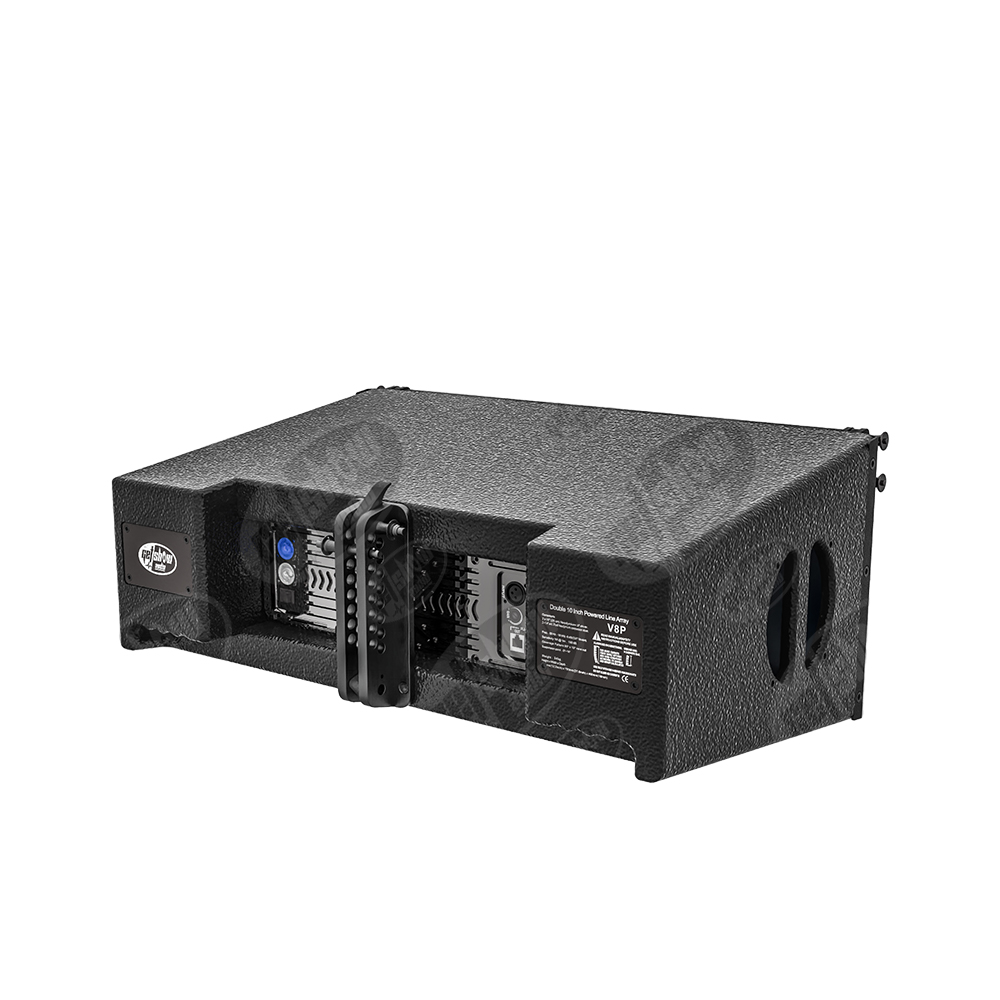

V8in. 2 Way Active Line Array Speaker -
- 2 x 12 inch Line Array Speaker
- coaxial drivers
- RMS power：800w
- built-in DSP module amplifier
- Product description: V8" 2 Way Active Line Array Speaker
The compact, 2 way GEO S1210 is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity -1W @1m) from a single12” loudspeaker. A very narrow-Q (10°) device in single-source mode, S1210’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210 to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional “tight-pack” pattern control in the non-coupled plane.
DSP based, clean and stronge sound, plug and play system,easy to set up. Can do tuning easily on PC through SOFTWARE.
Specification | |
| Components | 1 x 12" (30 cm) ferrite LF driver 1 x 1" exit, 3"coil compression driver |
| Height x Width x Depth | 344mm(13.5inch) x 675mm(26.5inch) x 378mm(14.9inch) excluding accessories. Rigging axis to axis height:345mm |
| Weight | 33kg |

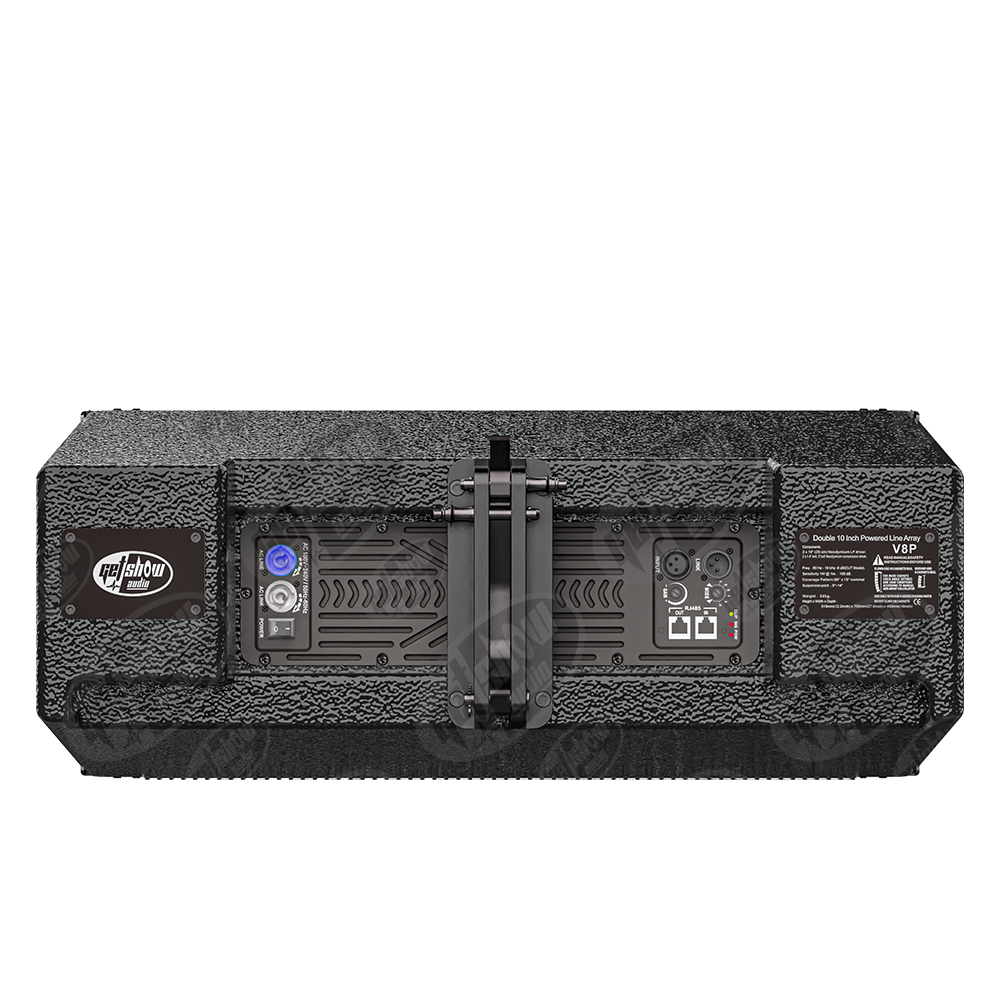

| Connectors : | XLR male in & XLR female out . |
| Finish : | Plywood finished with textured black coating. |
| Flying Points: | Two plates connecting with external accessories. Intercabinet angle adjustments = 0.2°, 0.315°,0.5°, 0.8°; 1.25°, 2.0°, 3.15°, 5°, 6.3°, 8.0°, 10.0° |
| Stand fittings : | Yes |
| Frequency Response : | 53 Hz - 19 kHz ±3 dB. |
| Sensitivity 1W @ 1m： | 103 dB. |
| Nominal Peak SPL @ 1m : | 132 dB. |
| Crossover Frequencies ： | 1.4 kHz . |
| Nominal Impedance ： | LF 4Ω, HF 8Ω. |
| Amplifiers: | LF 800W/4Ω, HF 300W/8Ω |
