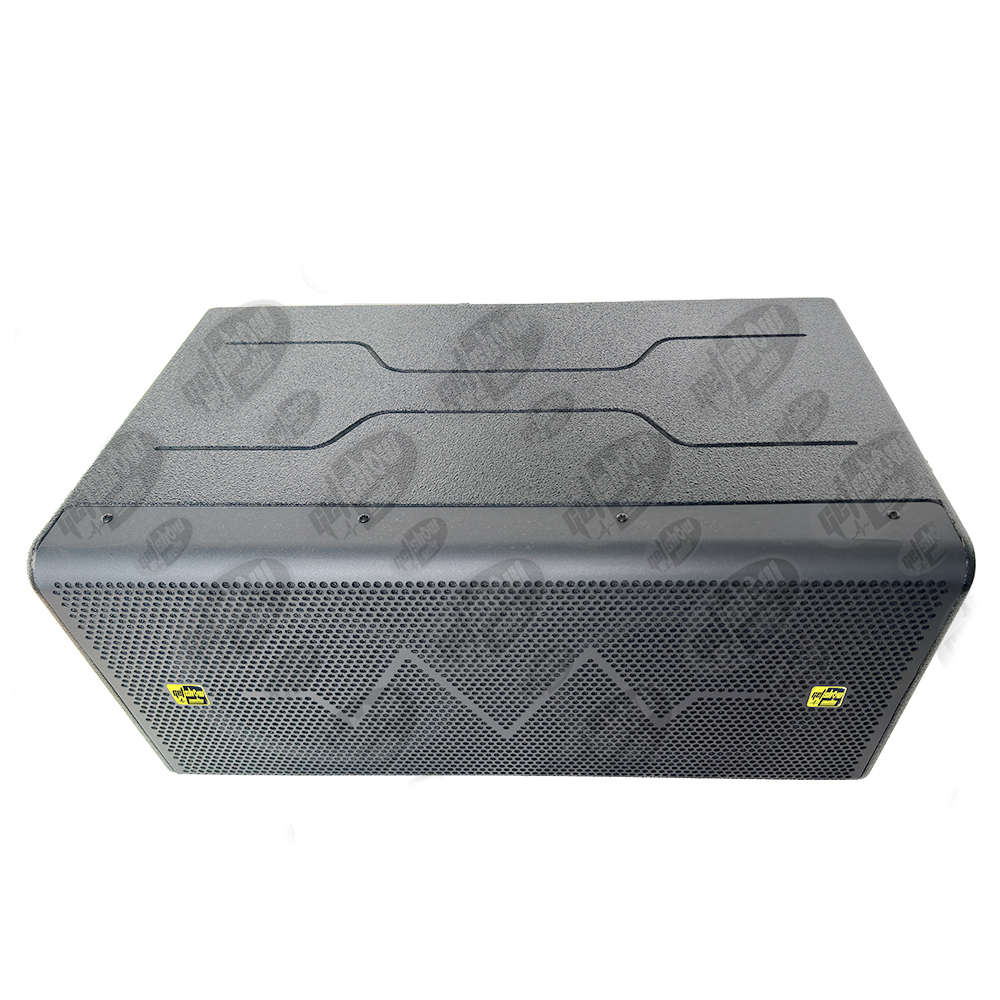

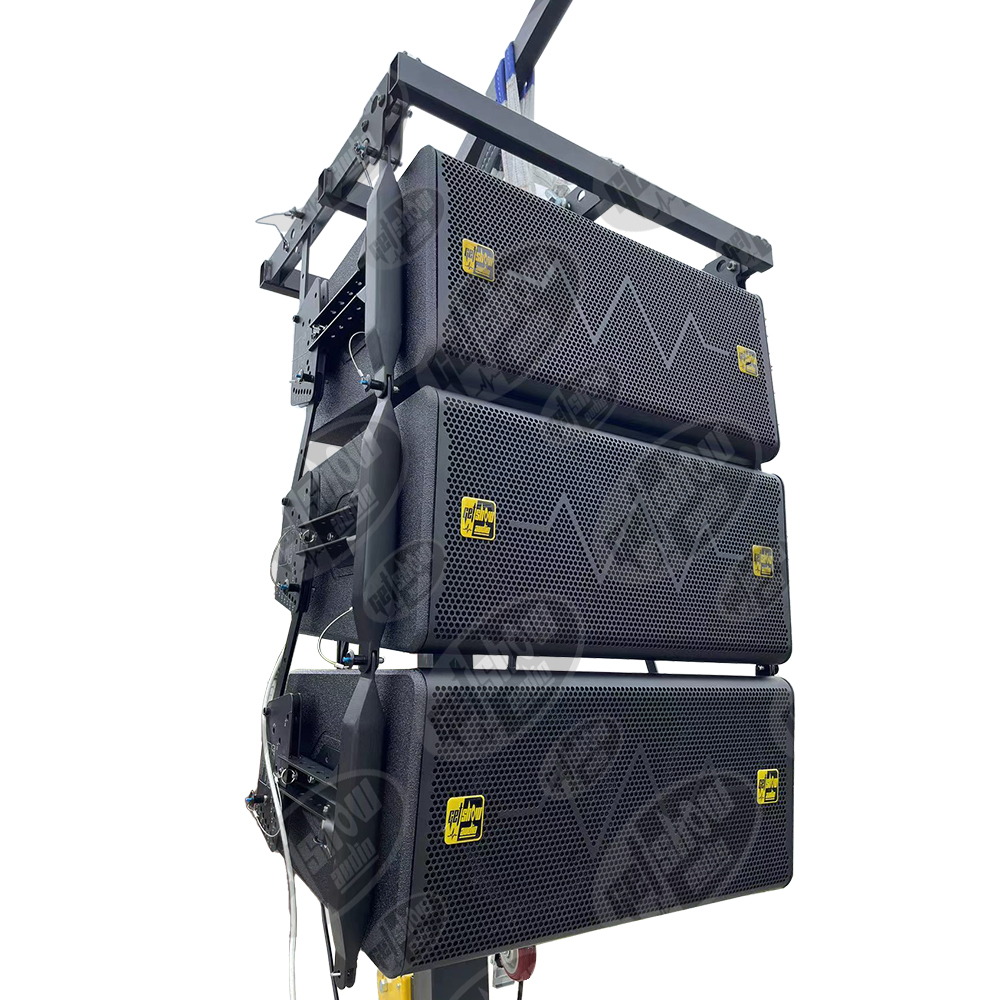

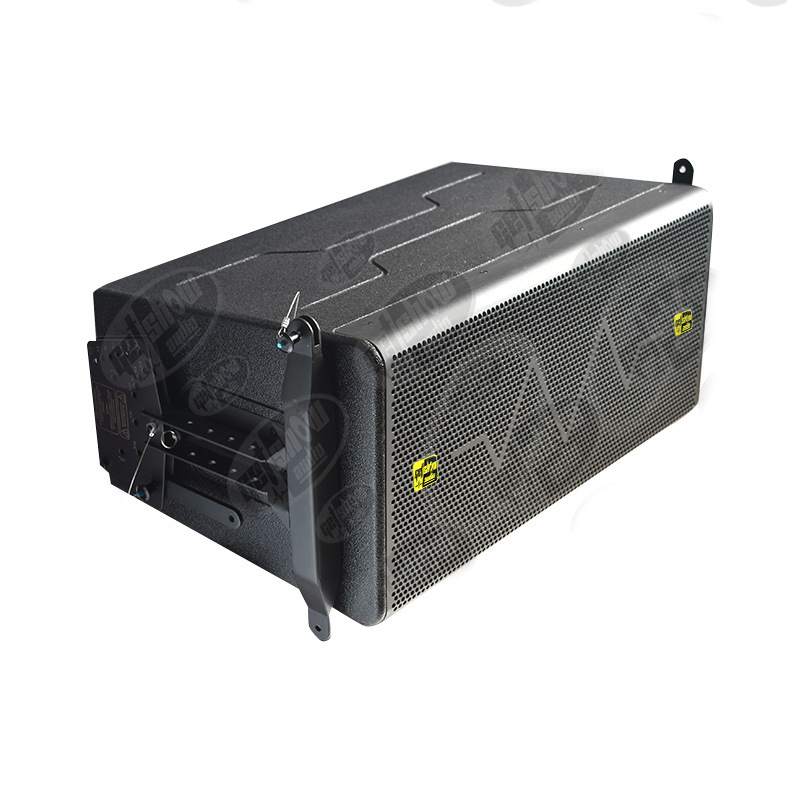

Coaxial 2 x 12 inch Line Array Speaker CM123P

  • Type: 3 way line array speaker
  • Feature 1: Coaxial Components
  • Feature 2: Point Source Speaker

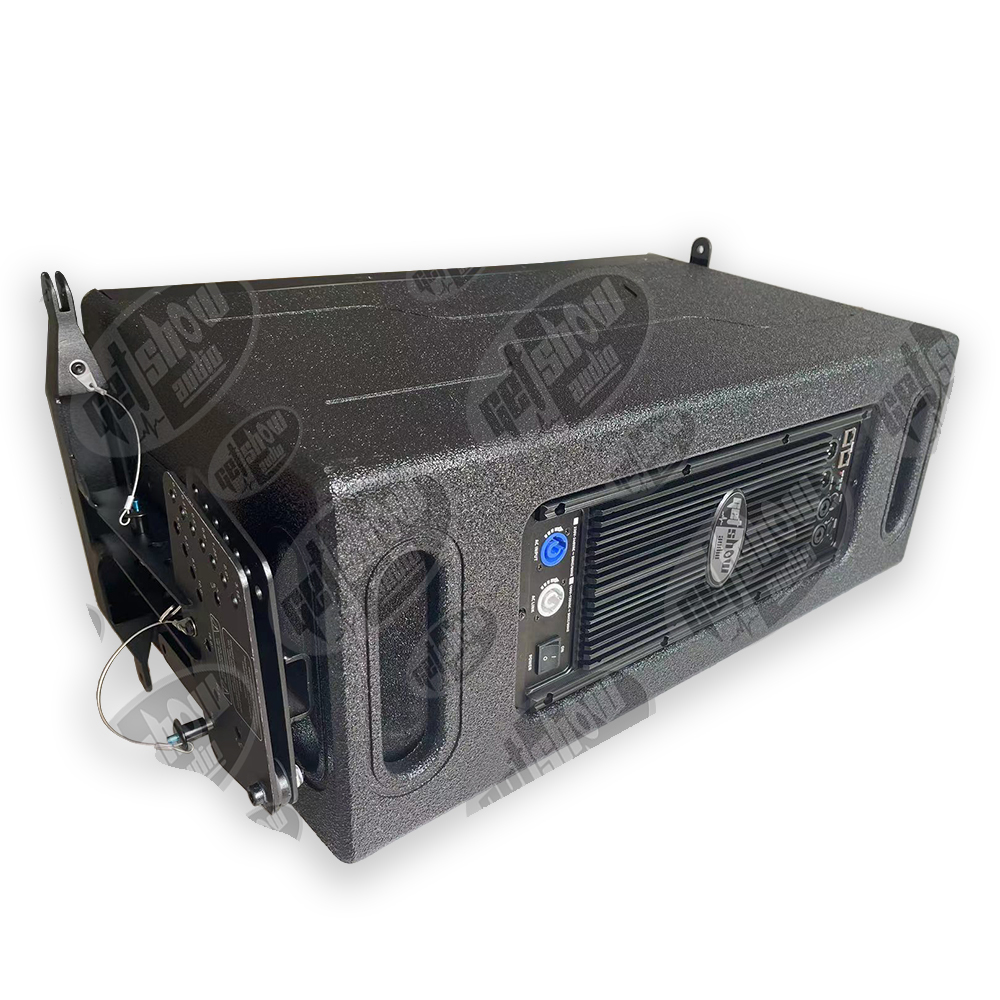

  • Feature 3: Built-in DSP amplifier
  • Product description: Coaxial 2x12 inch Powered Line Array Speaker CM123P
  • INQUIRY

The CM123P is a 3-way high performance active line array speaker employing two integrated 12” LF and 2” exit horn loaded HF and MF coaxial driver design that utilizes neodymium magnets. With built-in DSP module amplifier, CM123P is the best option for indoor and outdoor concert.


Specification:

Components

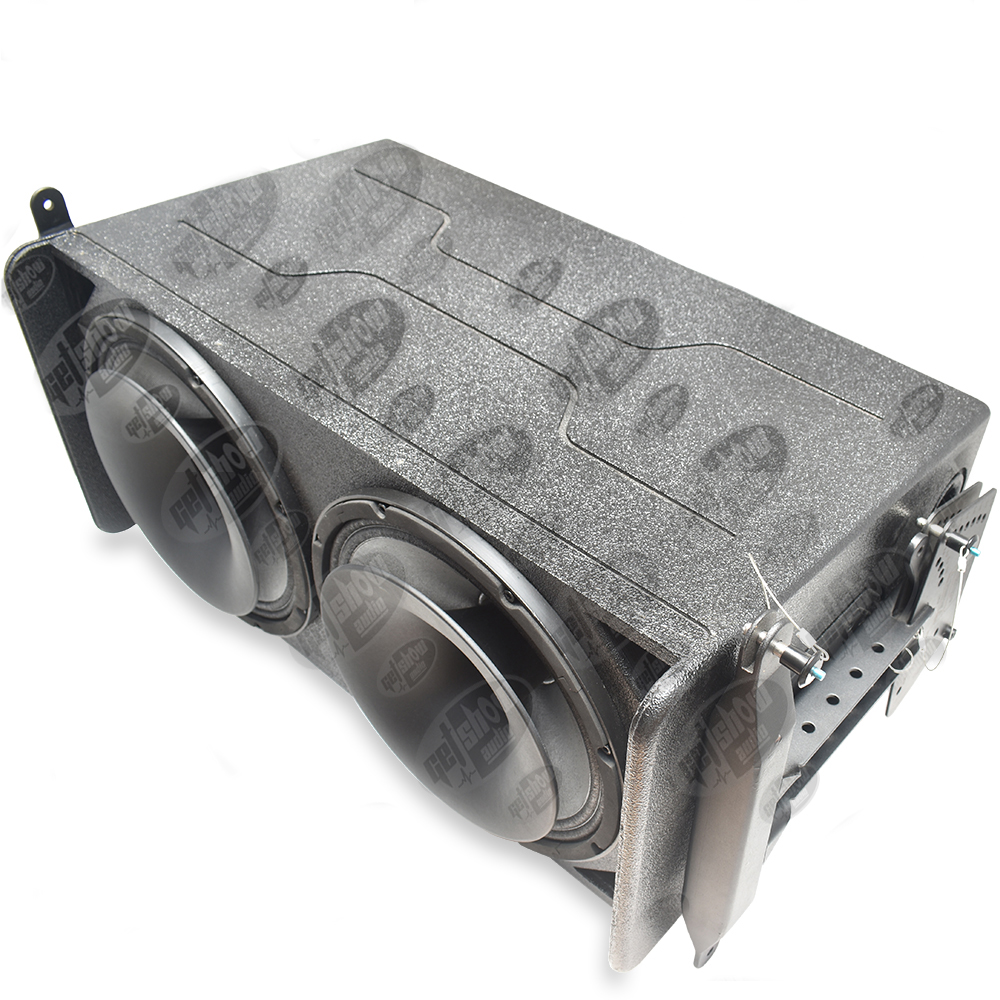

2×12"(31.5cm)ferrite LF driver

2×2"exit,3.5 Mid-range voice MF driver

2×2"exit,1.75"High-range voice HF driver

H×W×D

330mm(13inch)×700mm(27.6inch)×435(17.1inch)excluding accessories.

Rigging axis to axis height:345mm

Weight38kg

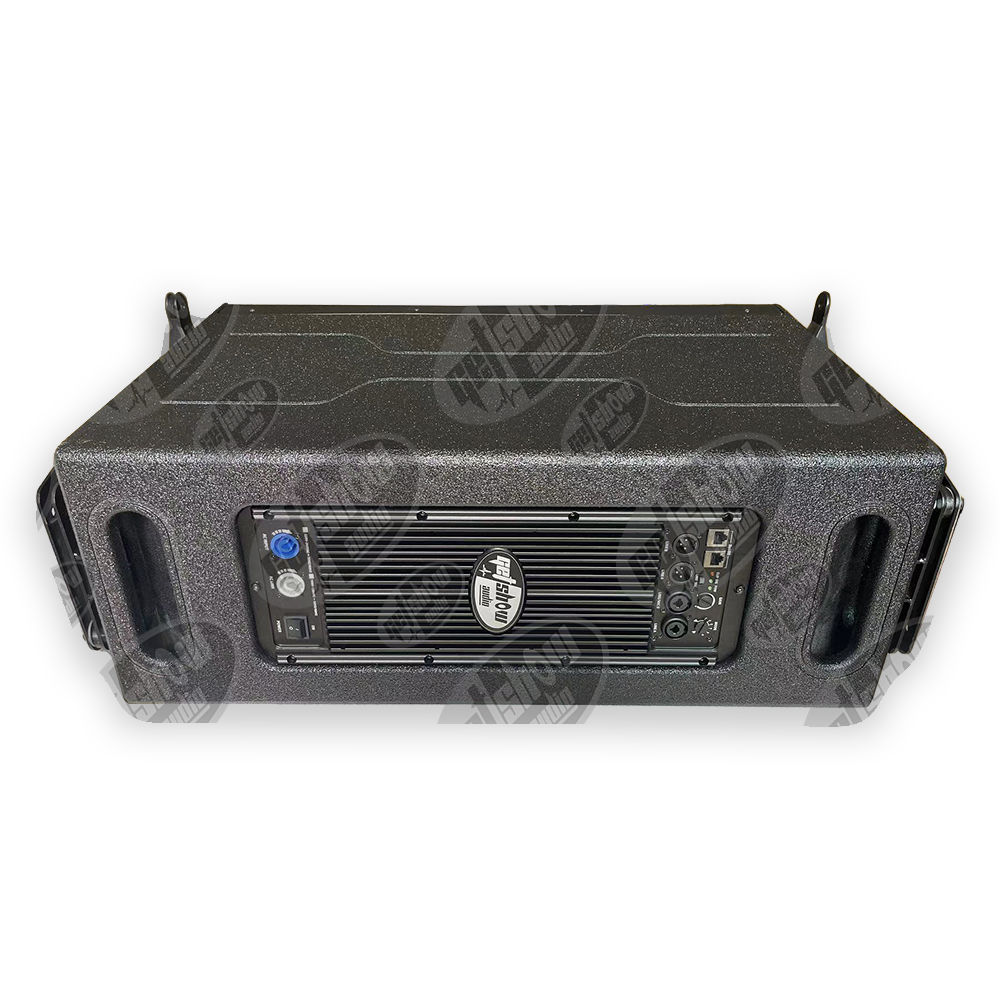

ConnectorsXLR male in & XLR female out
FinishPlywood finished with textured black coating

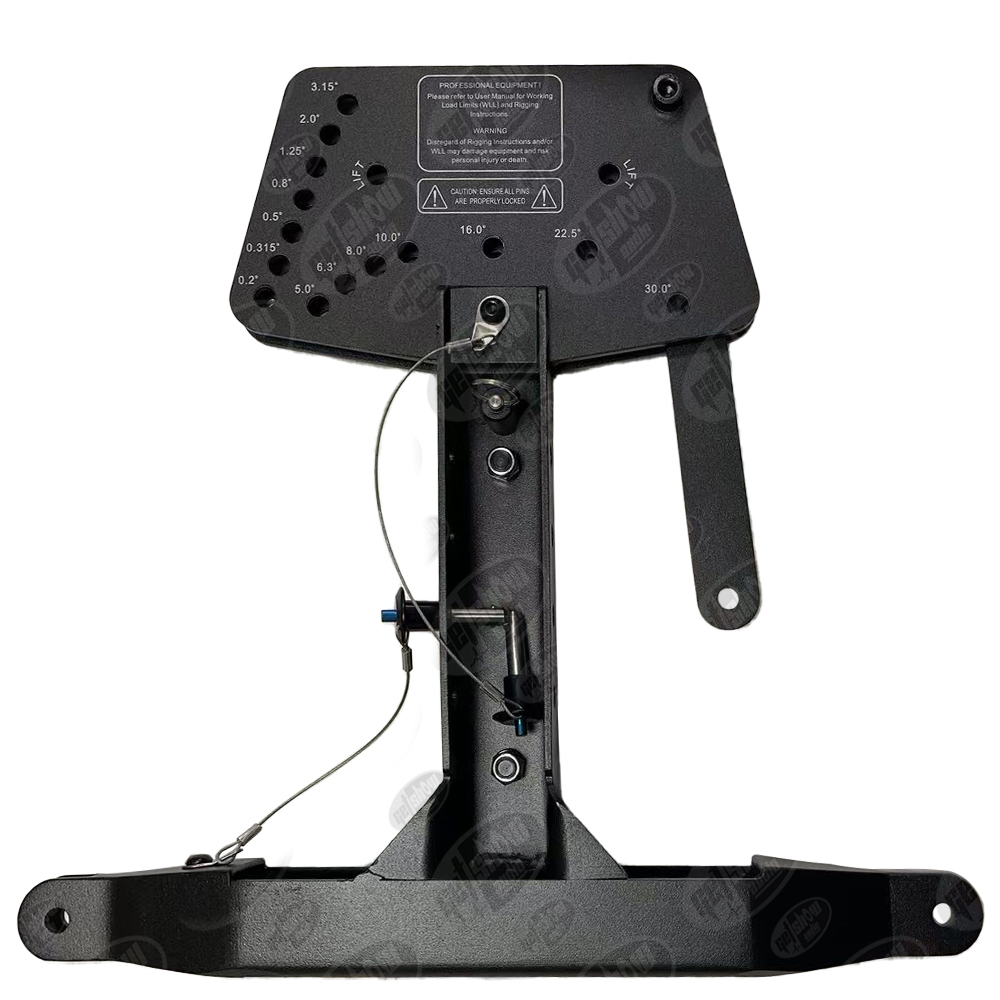

Flying Points

Two plates connecting with external accessories,Intercabinet angle

adjustments =0.2°,0.315°,0.5°,0.8°;1.25°,2.0°,3.15°,5°,6.3°,8.0°,10.0°

Stand fittingsYES
Frequency Response82Hz-19kHz±3dB
Sensitivity 1W @1m99dB
Nominal Peak SPL @1mLF131 dB/MF 137 dB/HF136 dB.
Crossover Frequencies1kHz and 5.6kHz.
Nominal ImpedanceLF 6Ω,MF 16Ω,HF 16Ω
Amplifiers:LF 1200W/8Ω,mf600W/8Ω,HF600W/8Ω
