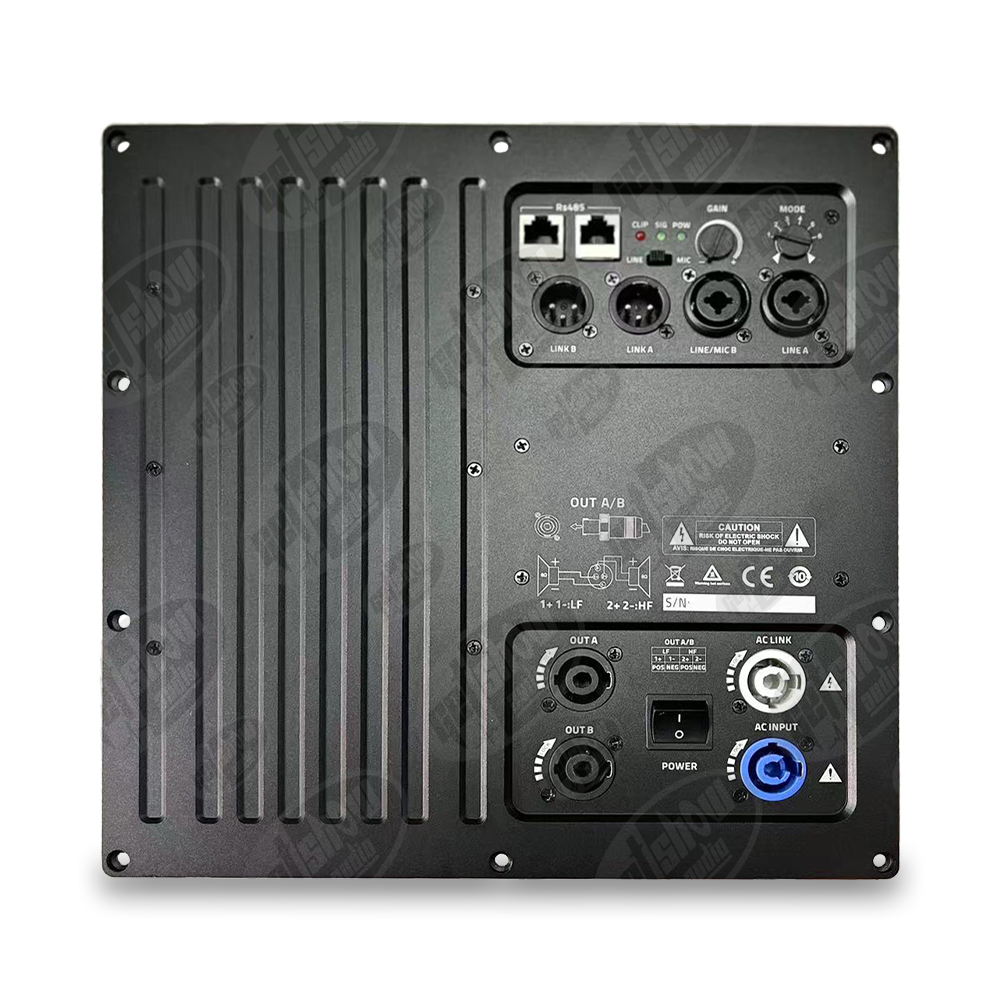

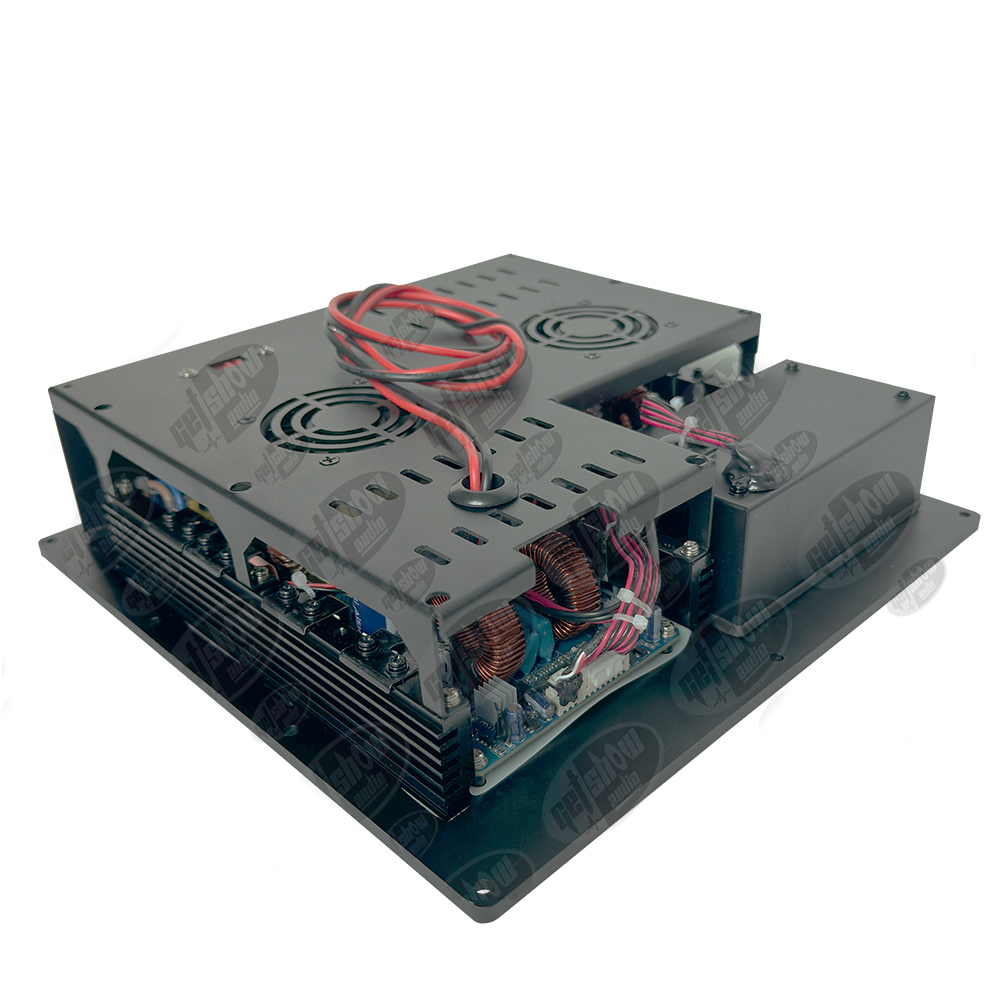

DSP3800 ETSHOW 800+400+400W 3 Way Amplifier Module 2.1 Satellite Home Theater Professional Speaker Plate Amplifier Class D with DSP
- Brand Name: GETSHOW
- Certification； CE
- Type： Power Amplifiers
- Origin: Mainland China
- Product description:
Description
GETSHOW 800+400+400W Professional DSP Amplifier 2.1 Sound System Amplifier Module
*Professional CLASS-D amplifier.
*Built-in high-performance 96KHZ DSP audio processor, RS485 online or network adjustment.
* Free Software is offered
*110-230v general working voltage
*Widely used in professional speaker combo, 2.1 home theater system
| Specification: | |
| Model: | DSP3800 |
| Rated power 8Ω | 800w |
| Rated Power 8Ω | 400w*2 |
| Frequency Response | DSP Control |
| THD 1KHZ | ≤0.5 |
| Damping Factor | >200 |
| Slew Rate | >20V/us |
| S/N | >95dB |
| Sensitivity | 0.775V |
| Input Impedance | Balance 20K, Unbalance 10K |
| Output Topology | CLASS-D |
| Protection | Short circuit, DC, Overheat, Peak Pressure Limit, Soft Start |
| Voltage | AC110-240V/50Hz-60Hz voltage-selected switch |
