Amplifier

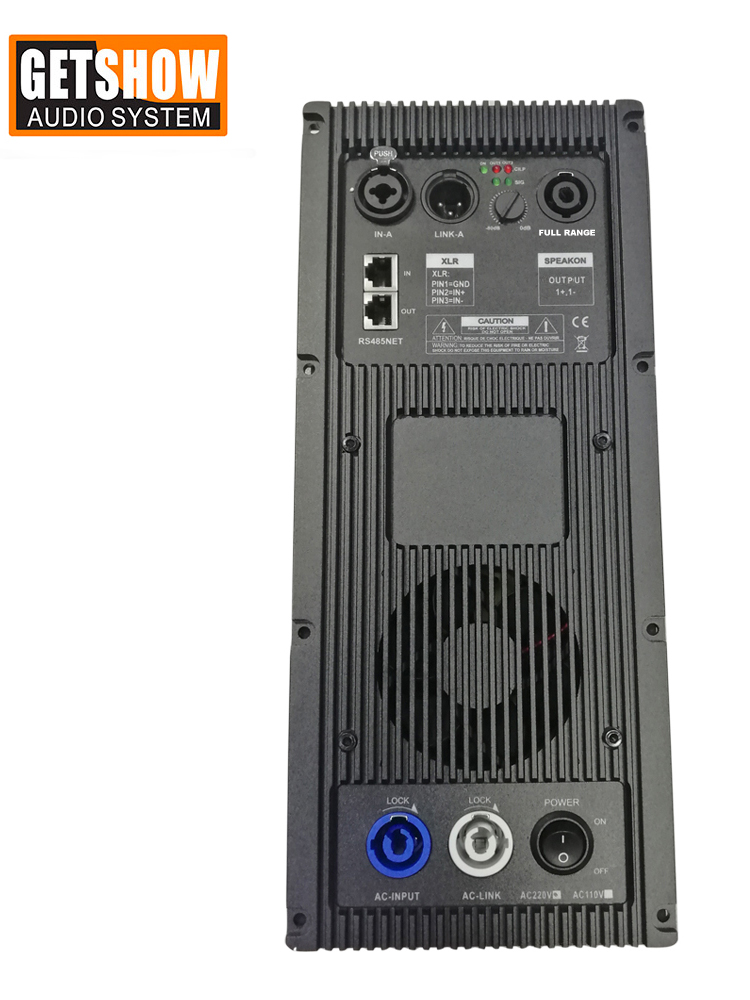

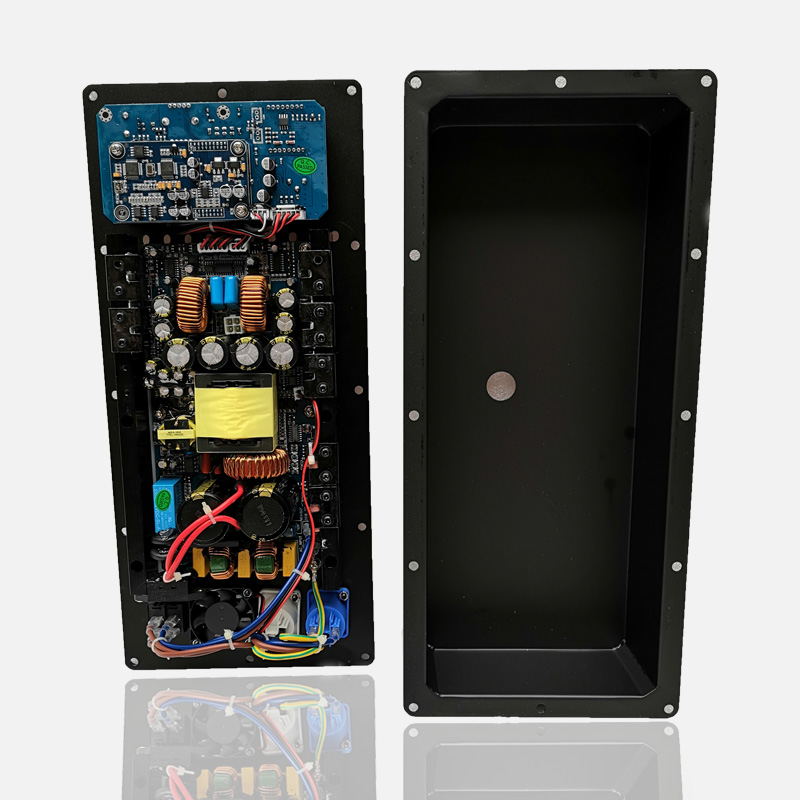

DSP830 800W+300W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
- Brand Name: GETSHOW
- Certification； CE
- Type： Power Amplifiers
- Origin: Mainland China
- Product description:
Description
800W+300W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
*Professional CLASS-D amplifier.
*Built-in high-performance 48KHZ DSP audio processor, RS485 online or network adjustment.
* Free Software is offered
*110-230v general working voltage
*Full sealed with the box, can be installed without a partition.
*Widely used in professional speaker, line array speaker
| Specification: | |
| Model: | DSP830 |
| Rated power 8Ω : | 400w+150w |
| Rated Power 4Ω : | 800w+300w |
| Frequency Response : | DSP Control |
| THD 1KHZ : | ≤0.5 |
| Damping Factor ： | >200 |
| Slew Rate ： | >20V/us |
| S/N | >95dB |
| Sensitivity ： | 0.775V |
| Input Impedance ： | Balance 20K, Unbalance 10K |
| Output Topology ： | CLASS-D |
| Protection ： | Short circuit, DC, Overheat, Peak Pressure Limit, Soft Start |
| Voltage ： | AC110-240V/50Hz-60Hz voltage-selected switch |
