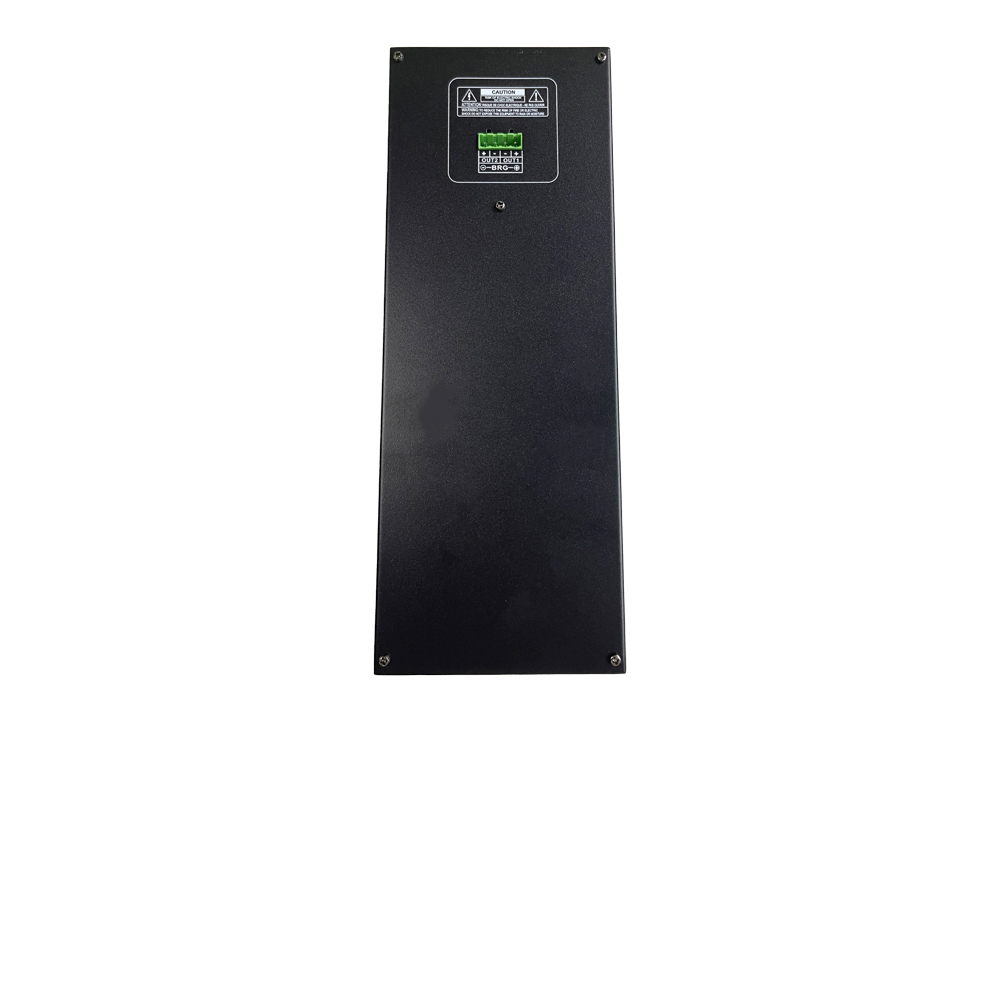

DSP-1206 RMS 600W+600W Professional Speaker Plate Amplifier 1 input 2 output Class D Amplifier Board With DSP processor around
- Package: Yes
- Model Number: D1800S
- Maximum Power Per Channel: Above 200W
- Origin: Mainland China
- Product description:
Specification
Design for Pros, Musicians, DJs----the best Class D amplifier module to fit your sound system. With RCE Audio amplifiers Modules, creating a sound stage has never been so easy...
| Specification: | |
| Model | DSP-1206 |
| Type | 2-way Plate Amplifier built in DSP module |
| DSP module | ADI From USA, 1 in 2 out |
| 8 ohms(AES) | CH1: 600w CH2: 600w |
| 4 ohms(AES) | CH1: 900w CH2: 900w |
| 8 ohms bridged | Availabie |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20KHz(±1dB), (DSP PC software adjustment) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400 |
| Input impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | |
| Input Sensitivity | 1.4V |
| A-Guard Protection System | DC protection, Short circuit protection, Smart overheat management, Overheat protection, Input overload protection, Output overload protection, Soft startup protection, Limiter protection |
| Cooling System | Smart Fan cooling system control , Variable speed fans, Back to front venting, mandatory cooling |

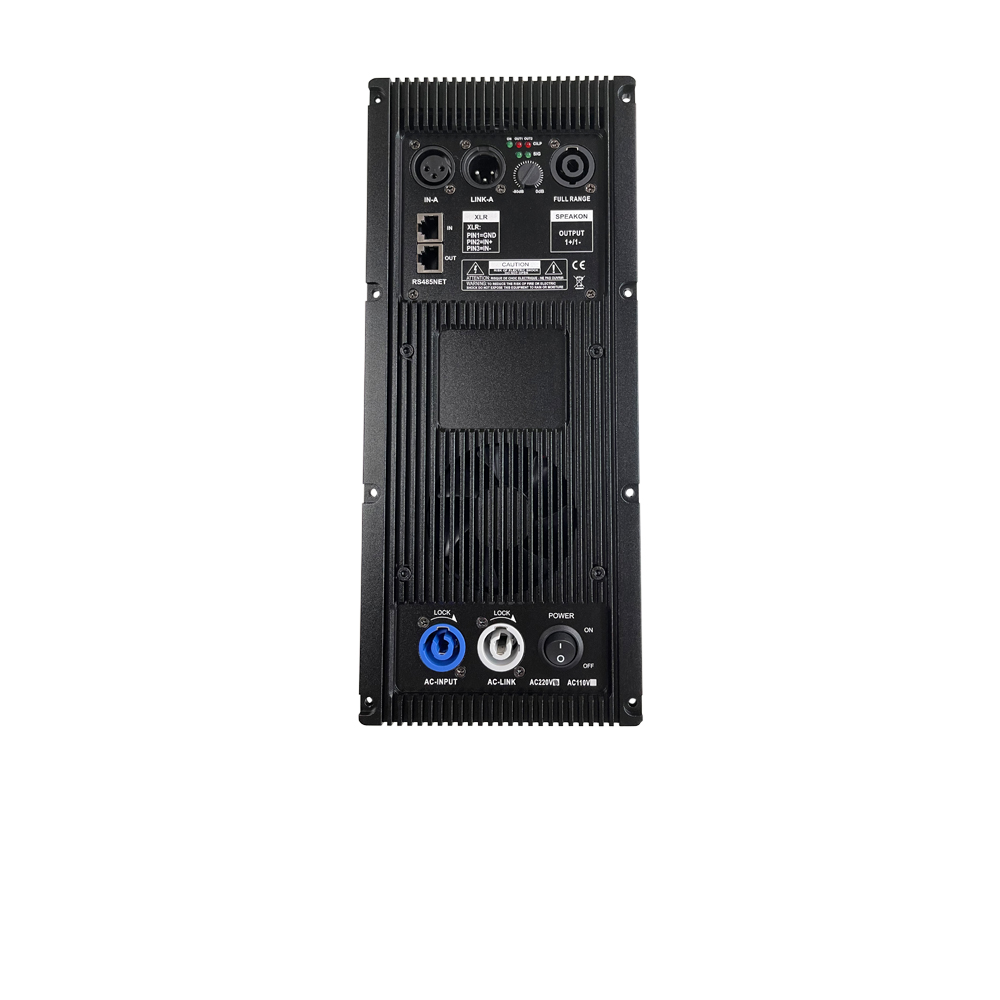

| Input/Output Connector | Combo Jack, XlR, Speakon |
| Net Weight(kg) | 3.5 |
