Power Amplifier

  • X10000--4 Channel 1.5U Power Amplifier
  • X10000--4 Channel 1.5U Power Amplifier
  • X10000--4 Channel 1.5U Power Amplifier
X10000--4 Channel 1.5U Power AmplifierX10000--4 Channel 1.5U Power AmplifierX10000--4 Channel 1.5U Power Amplifier

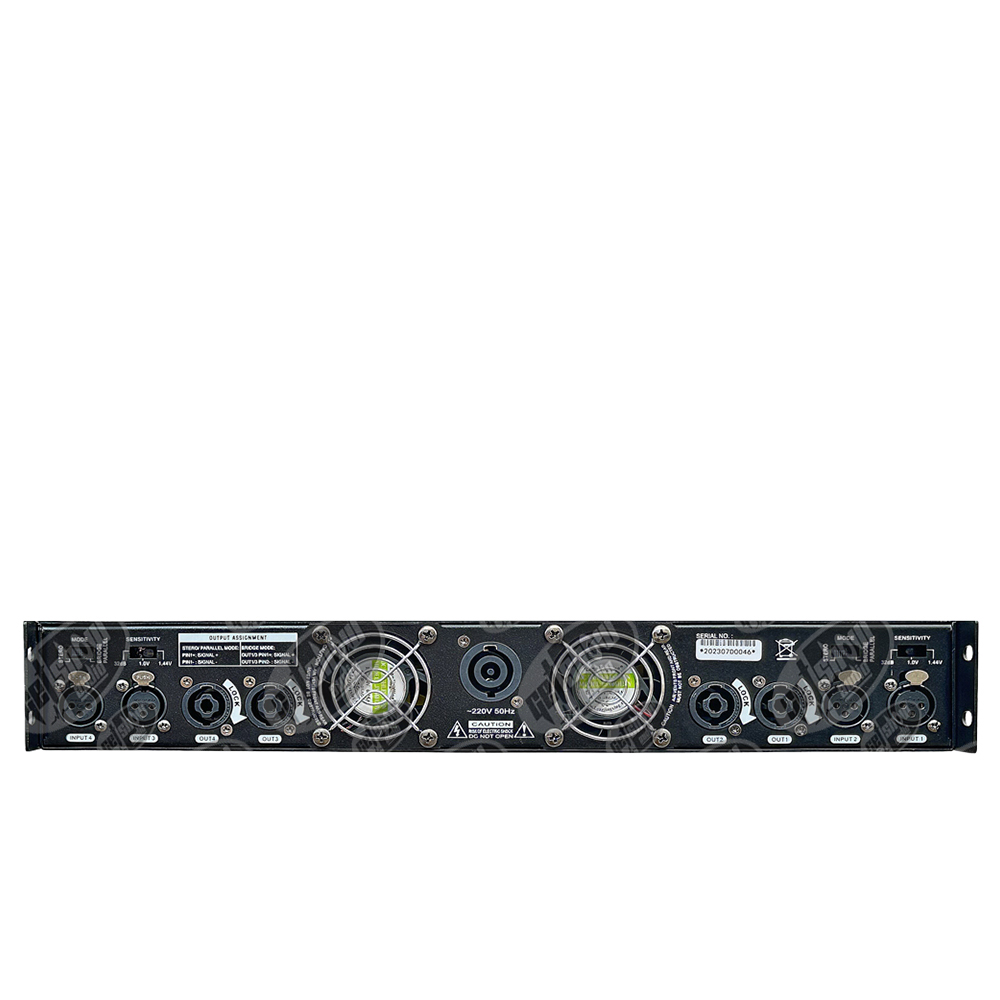

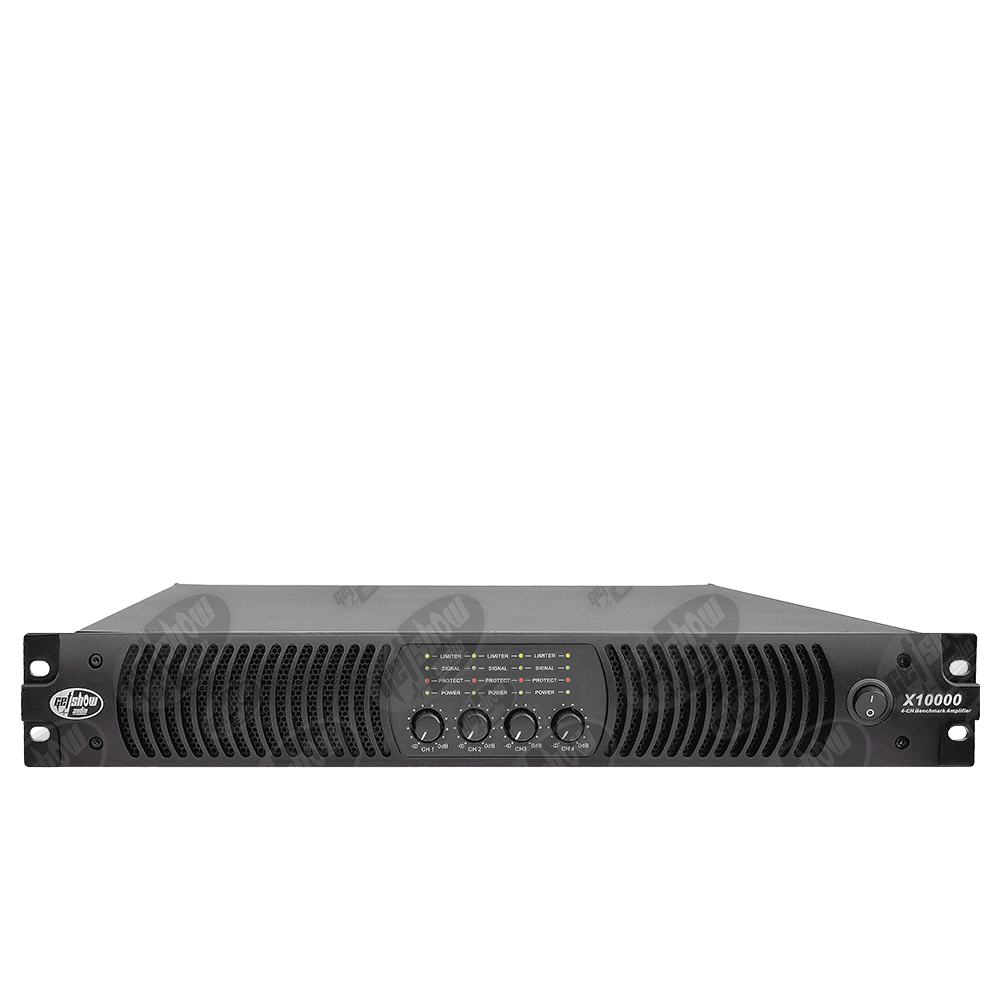

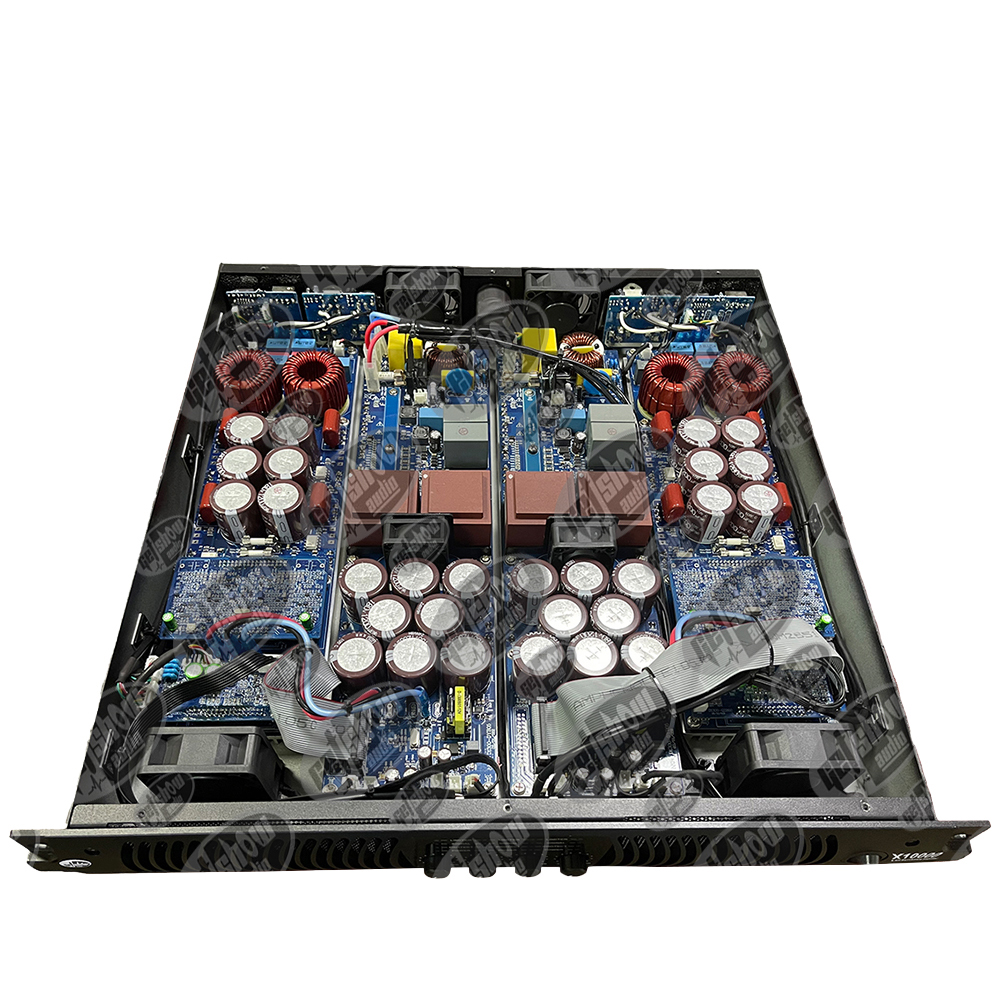

X10000--4 Channel 1.5U Power Amplifier

  • 4 CH digital amplifier
  • 4x2650 Watts RMS power
  • 1.5U Power Amplifier
  • Advanced Power Supply Management
  • Product description: 4 CH digital amplifier
  • INQUIRY

High quality 4 Channel 4x2650 Watts 4 ohm 1.5U Class D AMP X10000 Line Array Sound System Audio Professional Disco Dj Power Amplifier

1. DC protection

2. Short Circuit Protection

3. Over Heat Protection

4. Input Overload Protection

5. Output Overload Protection

6. Over Voltage Protection

7. Low Voltage Protection

8. Inductor resonance overpressure protection


Specification
Model:X10000
Rated power 8Ω :1500W*4
Rated Power 4Ω :2500W*4
Rated Power 8Ω mono bridged :  5000W*2
Frequency Response (20Hz-20KHz, 1W/8Ω) :±1.5dB
Intermodulation Distortion (Rated power, 8Ω) : <0.35%
THD+N (Rated power, 8Ω/1KHz):<0.09%
Damping Factor (20-400Hz/8Ω)  :>1000
Input Sensitivity(Rated power, 8Ω/1KHz) :Optional 32dB/1V/1.44V
Input Impedance (Balance/Unbalance) :( 20K/10K)
S/N(A weighting 8Ω :>100dB
Digital Limit control coefficient :1V-6V
Work Mode :Adaptive switching power suppiy, dual CPU single-chip microcomputer work throughout Program safety control
Input :XLR
Output :Speakon
Power Supply :~120/220-240V, 50/60Hz
Construction :CNC high reliability electrolytic plate Bonded with aluminum panel
DIM (H x W x L mm) :66*483*475
N.W±1Kg :14.7Kg
G.W±1Kg :16.1Kg
