Power Amplifier

  • P6000--4 Channel Power Amplifier  With DSP
P6000--4 Channel Power Amplifier  With DSP

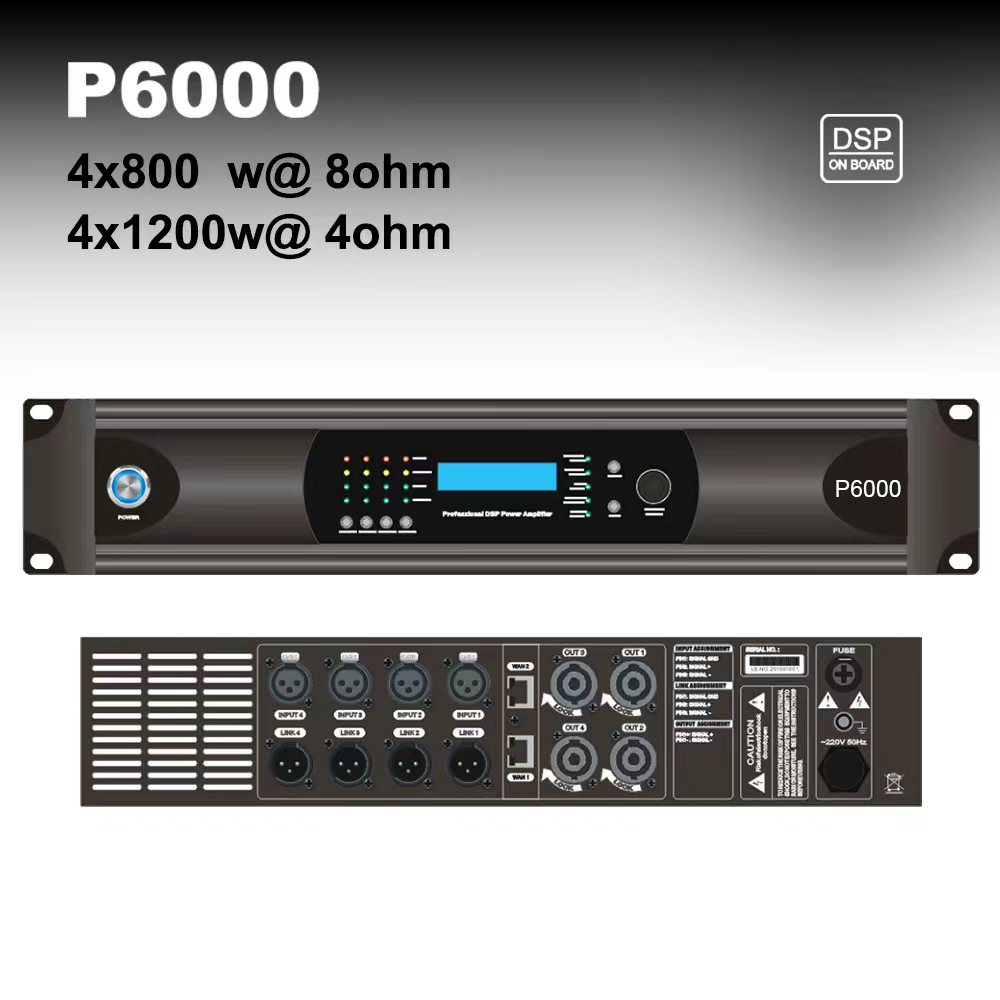

P6000--4 Channel Power Amplifier With DSP

  • 4 CH digital amplifier
  • 4x800 Watts RMS power
  • Built-in DSP processor
  • Advanced Power Supply Management
  • Product description: 4 CH digital amplifier With DSP
  • INQUIRY

P  series professional power amplifiers are designed base on advanced Class D digital power amplifier technology.


It is a combination of digital power amplification technology plus power factor compensation and voltage stabilization vector switching power supply technology. It has many advantages such as high electrical efficiency, light weight, small size, and low heat consumption.


The P series professional digital power amplifier uses the outstanding "sound mutual shift" and "variable damping" technologies in digital audio to greatly optimize the overall sound, making the sound in each frequency band balanced, smooth and pleasant, with bright treble, clear midrange and low bass.


The P series with built-in DSP from ALLDSP Germany, make it widely used in the audio engineering.


Specification
Model:P6000
Rated power 8Ω :800W*4
Rated Power 4Ω :1200W*4
Rated Power 8Ω mono bridged :  /
Frequency Response (20Hz-20KHz, 1W/8Ω) :0/-1dB
Intermodulation Distortion (Rated power, 8Ω) : <0.35%
THD+N (Rated power, 8Ω/1KHz):<0.09%
Damping Factor (20-400Hz/8Ω)  :>1000
Input Impedance (Balance/Unbalance) :( 20K/10K)
S/N(A weighting 8Ω) :>100dB
Digital Limit control coefficient :MAX6V
Work Mode :Adaptive switching power supply
DSP function:ALLDSP from Germany
Input :XLR
Output :Speakon
Power Supply :~120/220-240V, 50/60Hz
Construction :CNC high reliability electrolytic plate Bonded with aluminum panel
DIM (H x W x L mm) :89*483*435
N.W±1Kg :10.3Kg
G.W±1Kg :11.8Kg
