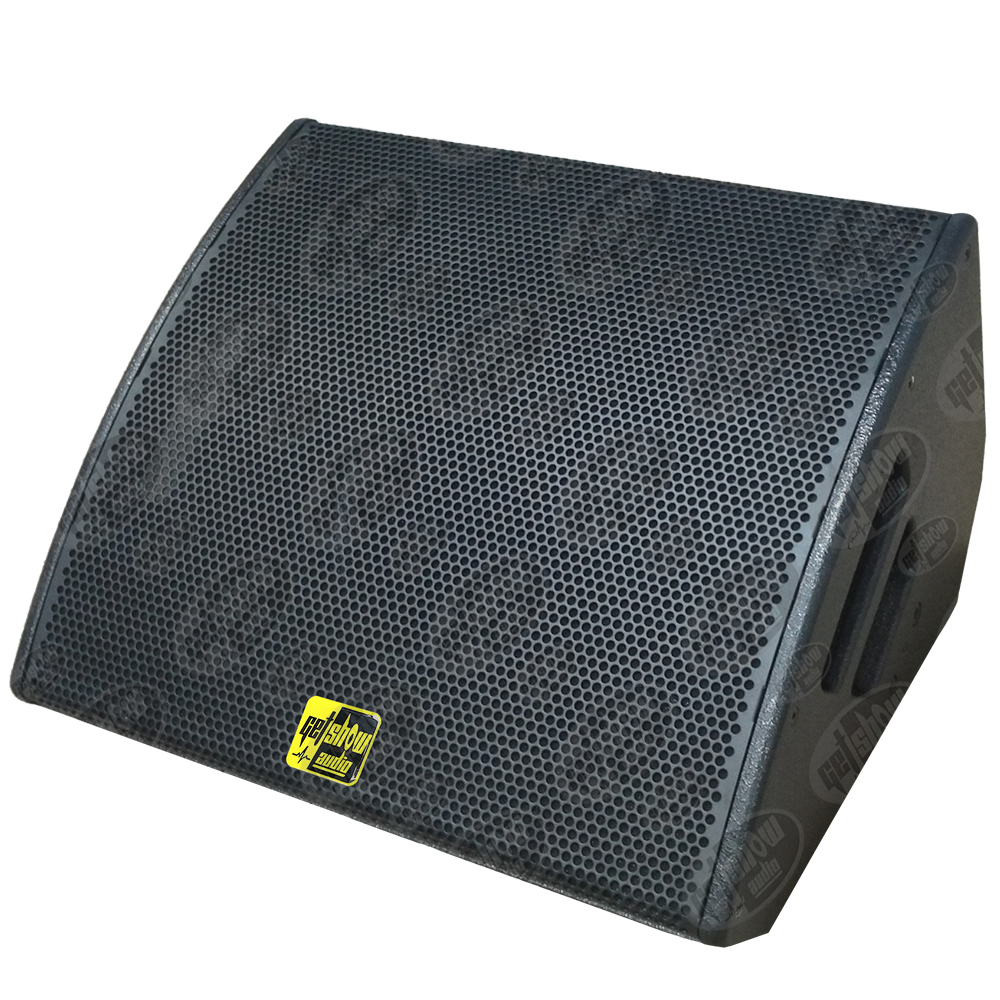

CM4 -Coaxial 15 inch wedge monitor

Specification
Model :	CM4
Frequency response (–5 dB standard) :	55 Hz/17 kHz
Frequency response (–5 dB CUT mode) :	95 Hz/17 kHz
Max. sound pressure (single cabinet, 1 m, free field) D6 passive mode :	134 dB
Nominal impedance :	8 ohms
Power handling capacity (RMS / peak 10 ms) :	400/1600 W
Nominal dispersion angle (hor. x vert., monitor setup) :	50° x 70°
Components :	15" driver with neodymium magnet
Passive crossover network :	coaxial 1.3 exit compression driver with 3" coil and CD horn
Connections :	(optional 2 x NL4) Pin assignments/NL4: 1+: LF+/1–: LF–/2+: HF+/2–: HF–
Weight. :	21 kg
