Amplifier Module

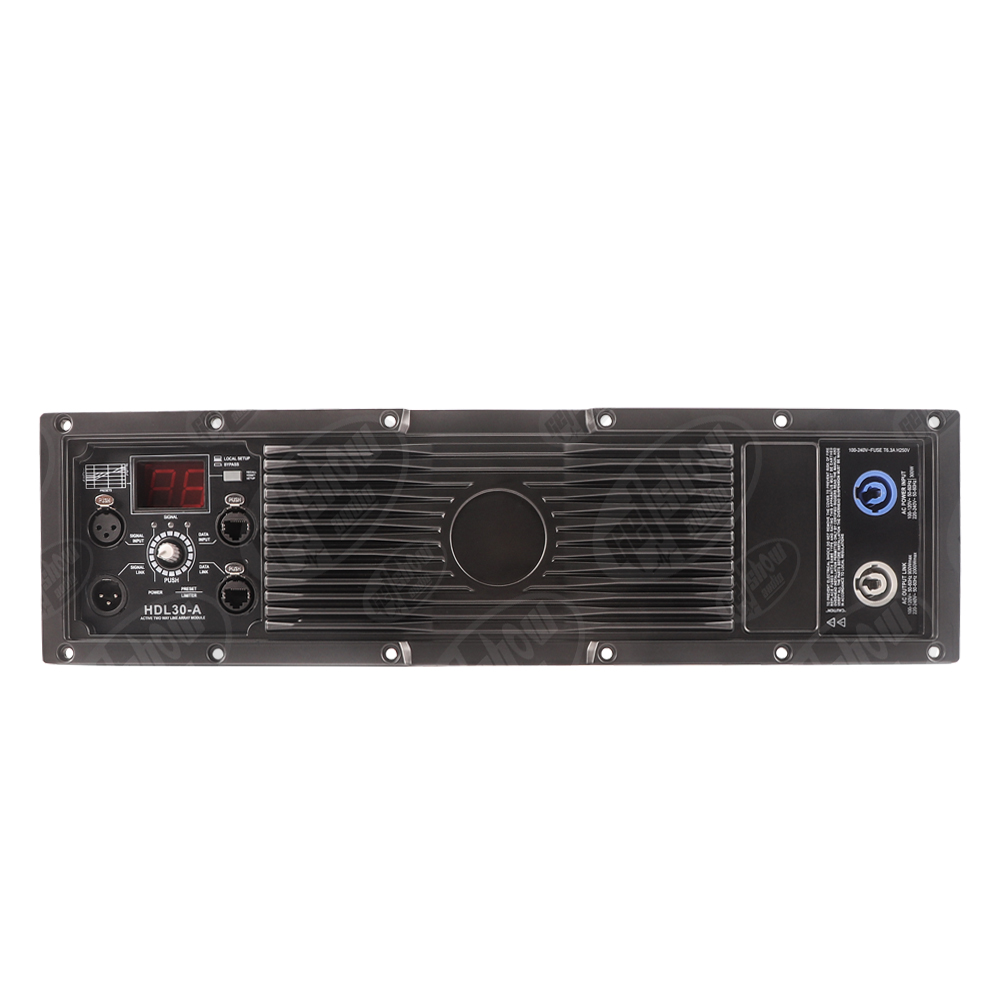

HDL-30A AMP
- CLASS D amplifier
- 800W+300W
- Built-in DSP processor
- Speakon output
- Product description: RMS 1100W Professional Speaker Plate Amplifier 1 input 2 output Class D Amplifier Board With DSP For HDL30A dual 10 inch line array speaker system
RMS 1100W Professional Speaker Plate Amplifier 1 input 2 output Class D Amplifier Board With DSP
For HDL30A dual 10 inch line array speaker system
Output connectors
| Specification: | |
| Model: | HDL-30A AMP |
| Total Power | 2200 W Peak, 1100 W RMS |
| High frequencies | 600 W Peak, 300 W RMS |
| Low frequencies | 1600 W Peak, 800 W RMS |
| Cooling | Forced |
| Connections | Powercon IN/OUT |
| Input signal | bal/unbal |
| Input connectors | XLR, RDNet Ethercon |
| Output connectors | XLR, RDNet Ethercon |
| Input sensitivity | +4 dBu |
| Crossover Frequencies | CLASS-D |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Preset, RDNet bypass |
| RDNet | Onboard |
