Amplifier Module
HDL-50A AMP
- CLASS D amplifier
- 2000W RMS
- Built-in DSP processor
- Speakon output

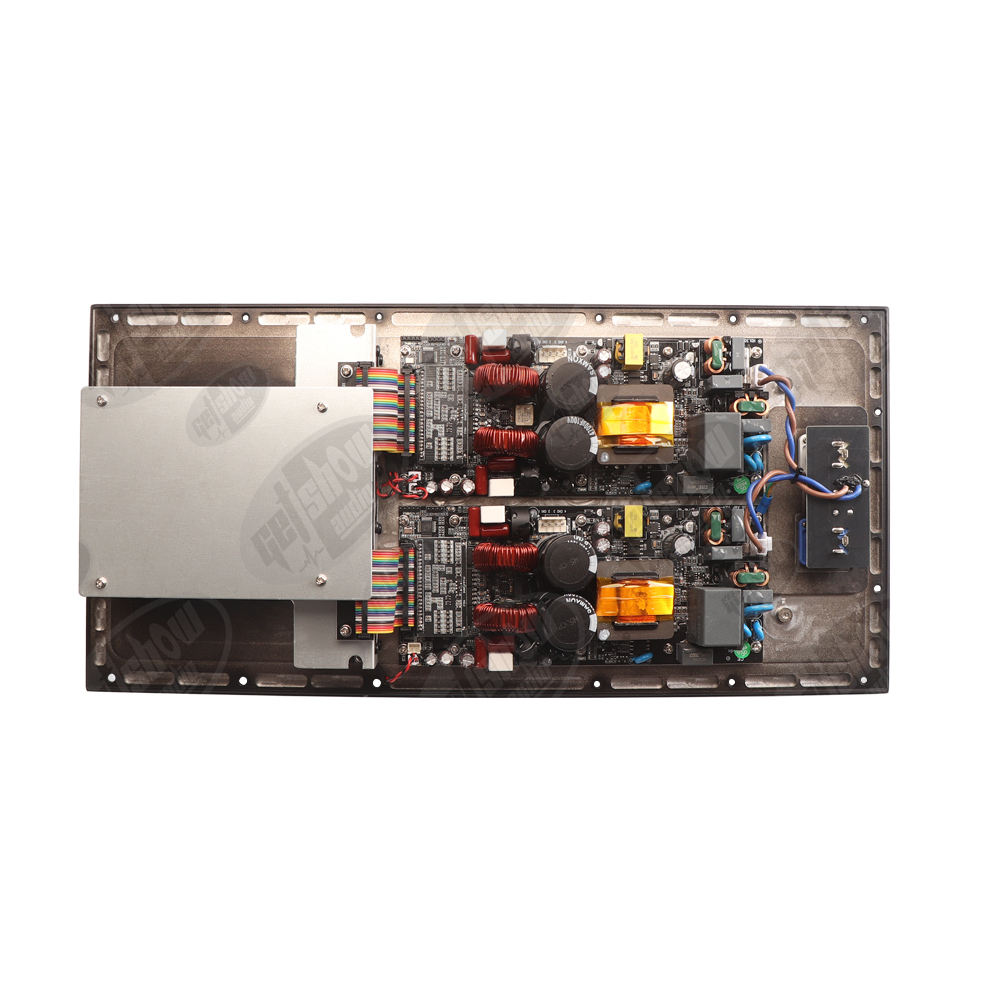

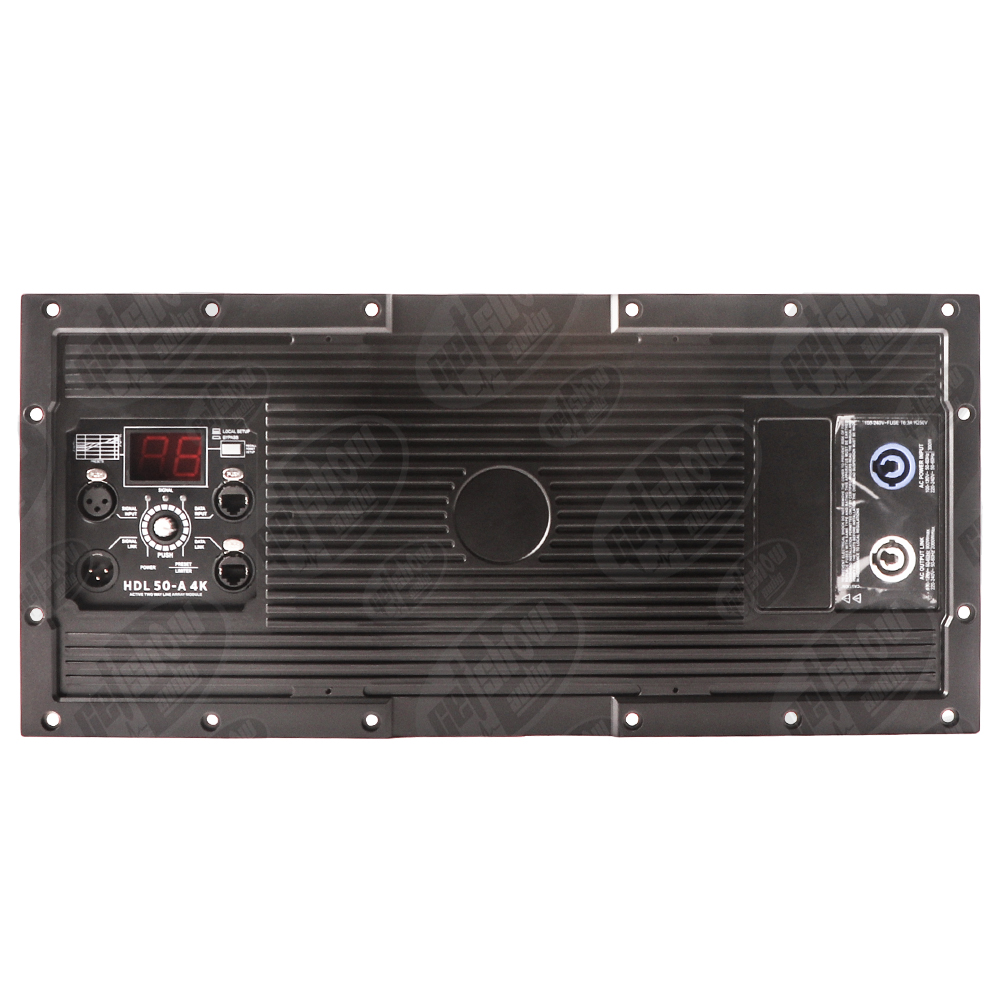

- Product description: RMS 2000W Professional Speaker Plate Amplifier 1 input 2 output Class D Amplifier Board With DSP For HDL50A dual 10 inch line array speaker system
| Specification: | |
| Model: | HDL-50A AMP |
Frequency Response | 40 Hz-20000 Hz |
| Input signal | bal/unbal |
| Input connectors | XLR, RDNet Ethercon |
| Output connectors | XLR, RDNet Ethercon |
| Input sensitivity | +4 dBu |
| Crossover Frequencies | 200 Hz-800 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Cluster size, HF correction, RDNET |
| RDNet | Onboard |
| Total Power | 8000 W Peak |
| High frequencies | 2000 W Peak |
| Mid frequencies | 2000 W Peak |
| Low frequencies | 4000 W Peak |
| Cooling | Convection |
| Connections | Powercon IN/OUT |
