SUB 9006- AMP

Power Module For SUB9006 subwoofer amplifier module

 * 7200 Watt Peak power - 3600 Watt RMS

 * 142 dB max SPL

 * 30 Hz - 400 Hz frequency response

 * DSP controlled Input section with selectable presets

 * RDNet remote control

 * Delay control

Top end electronics

The amplifier integrates a low-noise 64-bit DSP circuit,

 controlled through RDNet network to easily handle the soft clipping limiters,

 RMS limits, polarity, amplitude, timing and equalisation. All the settings,

 monitoring and advanced features are available inside the RDNet Networked Management software.

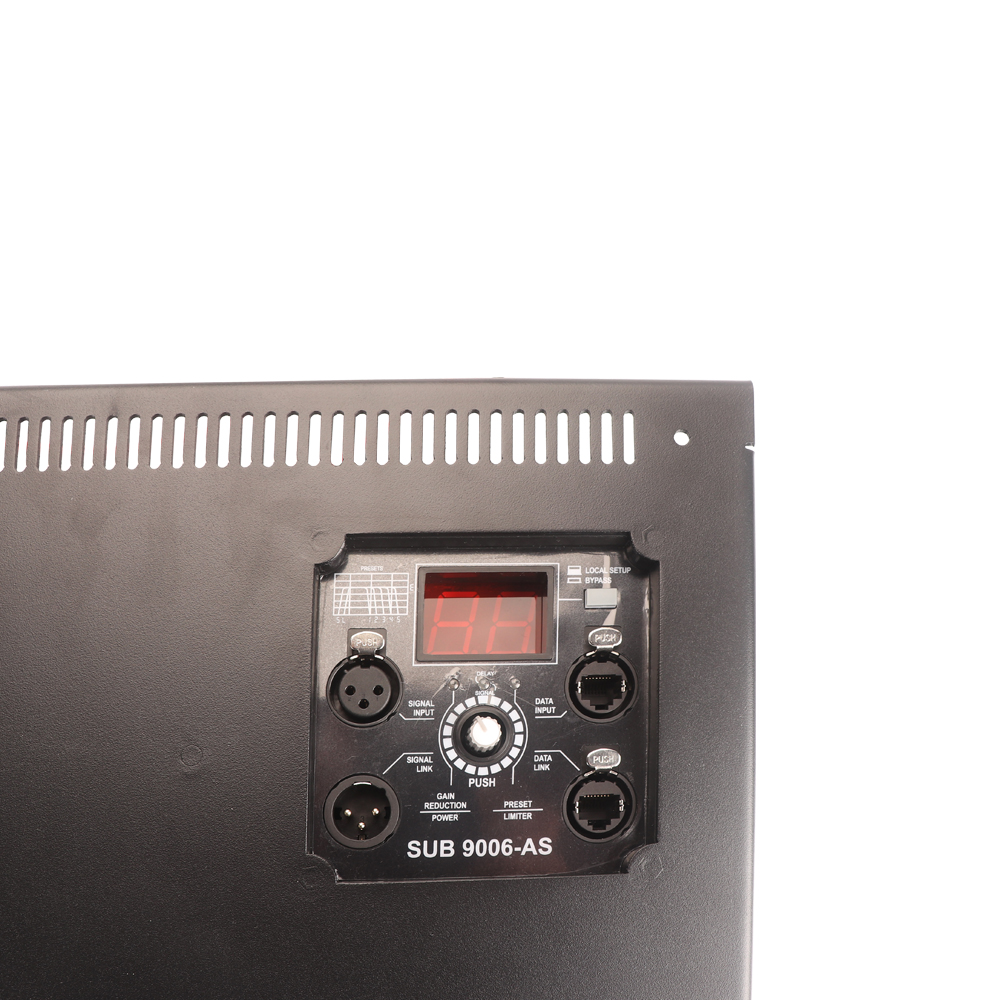

 The available control panel on the back adjusts input sensitivity, Low Cut, Xover, volume, bypass, delay and presets selection.

 The regulated power supply guarantees full power from 100 V to 260 V.

 The amplifier houses on a unique Vibrostop floating aluminum panel for extra protection during transportation.

RDNET

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems.

Based on a robust networked architecture, RDNet combines system control, line array design,

and comprehensive audio measurements into a single powerful software package.
