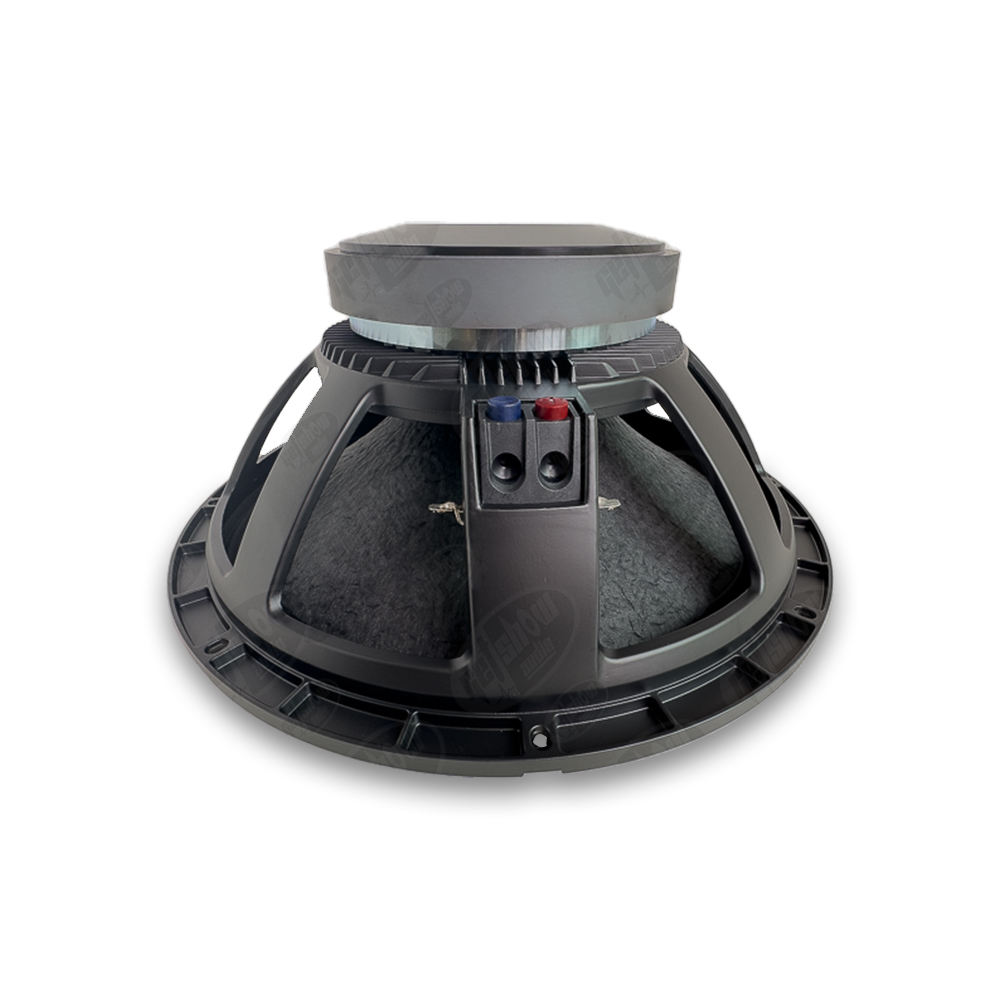

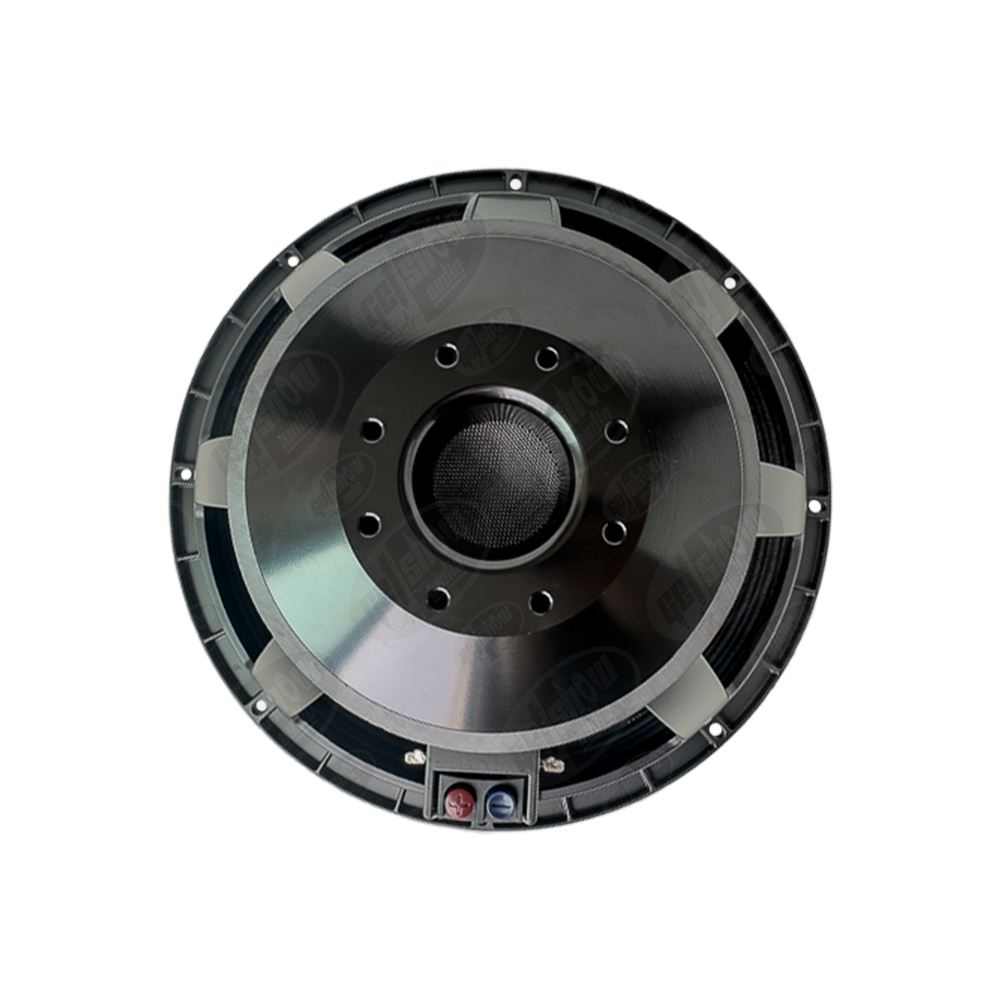

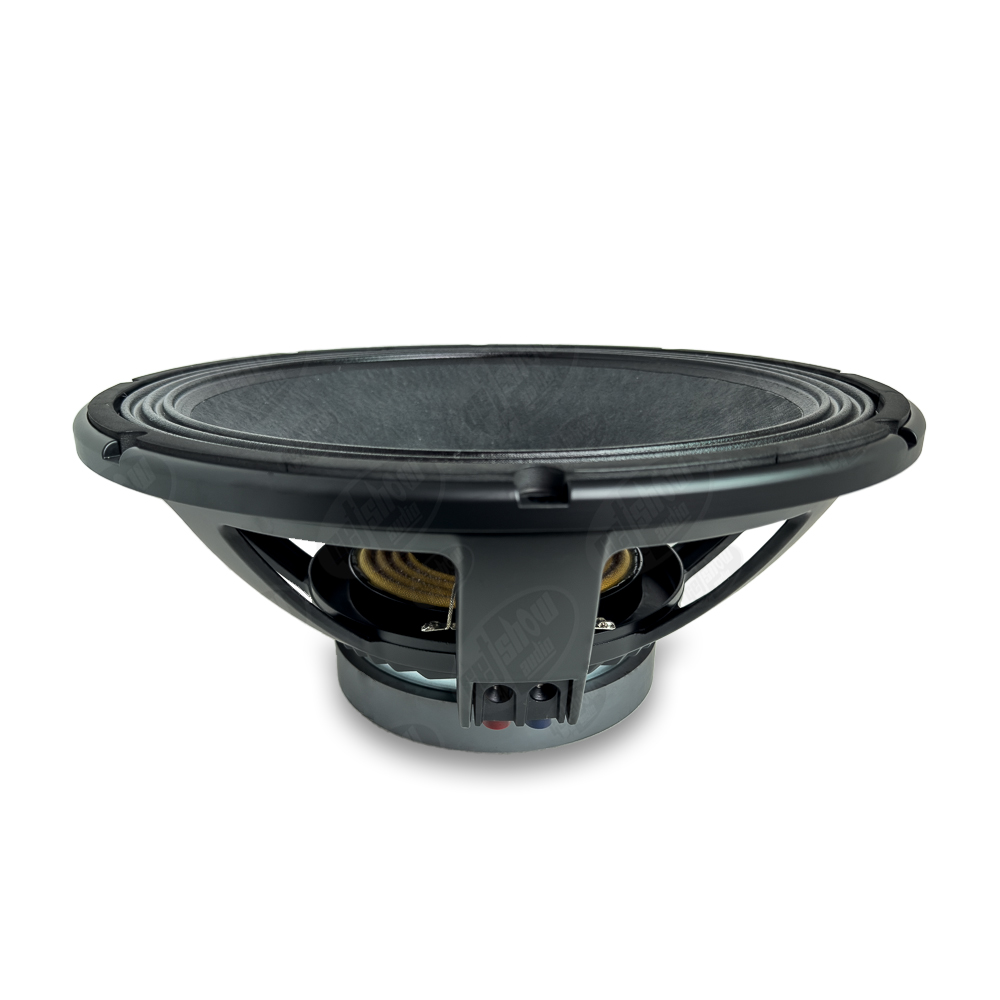

DB18-F01 18 inch Speaker -

  • Type: 18 inch woofer
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 1200 Watts
  • Voice Coil Diameter: 4 inch
  • Product description: The new DB1801 will sure change the game on vocal reproduction! Features a large 4” voice coil that results in very high efficiency while providing smooth and accurate response.
  • INQUIRY

18 inch 8 ohm 2400 watts woofer speaker LF driver loudspeaker

The new DB1801 will sure change the game on vocal reproduction!
Features a large 4”  voice coil that results in very high efficiency while providing smooth and accurate response.


Highlights

* Nominal Impedance: 8 Ohms
* Rated AES Power Handling (RMS): 1200 Watts
* Program Power: 2400 Watts
* Sensitivity (1W/1m): 97 dB
* Voice Coil Diameter: 4″

S                      Specification
                     Design
Nominal Diameter : 18inchSurround Shape : M Roll
Nominal lmpedance : 8ohmCone Shape : Radial
Minimum lmpedance : 6.6ohmMagnet Type : Ferrite Outside
Continuous Power Handling : 2000WSpider : Fabric
Nominal Power Handling(A.E.S.) : 1000W
Pole Design : T-pole
Sensitivity(1W/1m) : 97dB
Recommended Enclosure Vol. : dm3(ft3)
Frequency Range : 40Hz-2.2kHz
Recommended Tuning Frq : 40 Hz
Voice Coil Diameter :102.6mm(4.04 in)

Winding Material : Copper
                   Parameters
FOrmer Material : Glass Fibre
Fs : 39Hz
Magnet Matorial : Ferrite
Re : 5.2 ohm
Winding Depth : 22mm(0.87 in)
Qes : 0.41
Magnetic Gap Depth : 11mm(0.43 in)
Qms : 6.4
Flux Density : 1.1 Tesla
Qts : 0.38


Vas :231 dm3(ft3)
M                 Ounting &Shipping
Sd : 1244cm2(in2)
Overall Diameter : 460mm(18.1 in)
EtaZero : 3.30%
Bolt Circle Diameter : 441mm(17.36 in)
Xmax : +-9.2mm
Baffle Cutout Diameter : 421mm(16.6 in)
Xvar : +-12mm
Depth : 200mm(7.87 in)
Mms : 155g
Flange Gasket Thickness : 16mm(0.63 in)
Bl : 22 TxM
Air volume Occupied by driver : 11 dm3(ft3)
Le : 2.3 Mh
Net Weight : 12.5 kg(27.5lb)
EBP : 95Hz
Shipping Weight :  13.1kg(29 lb)

Shipping Box : 475*475*220mm(18.7x18.7x8.66in)
