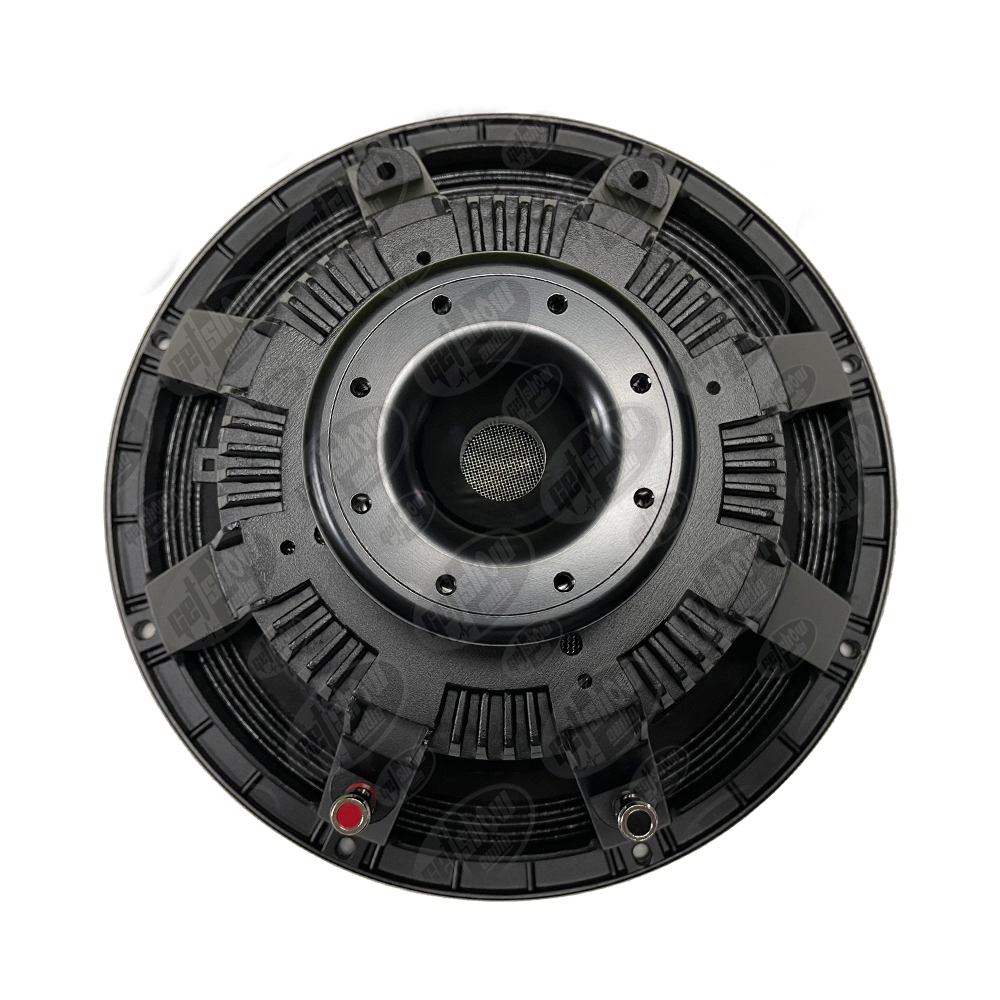

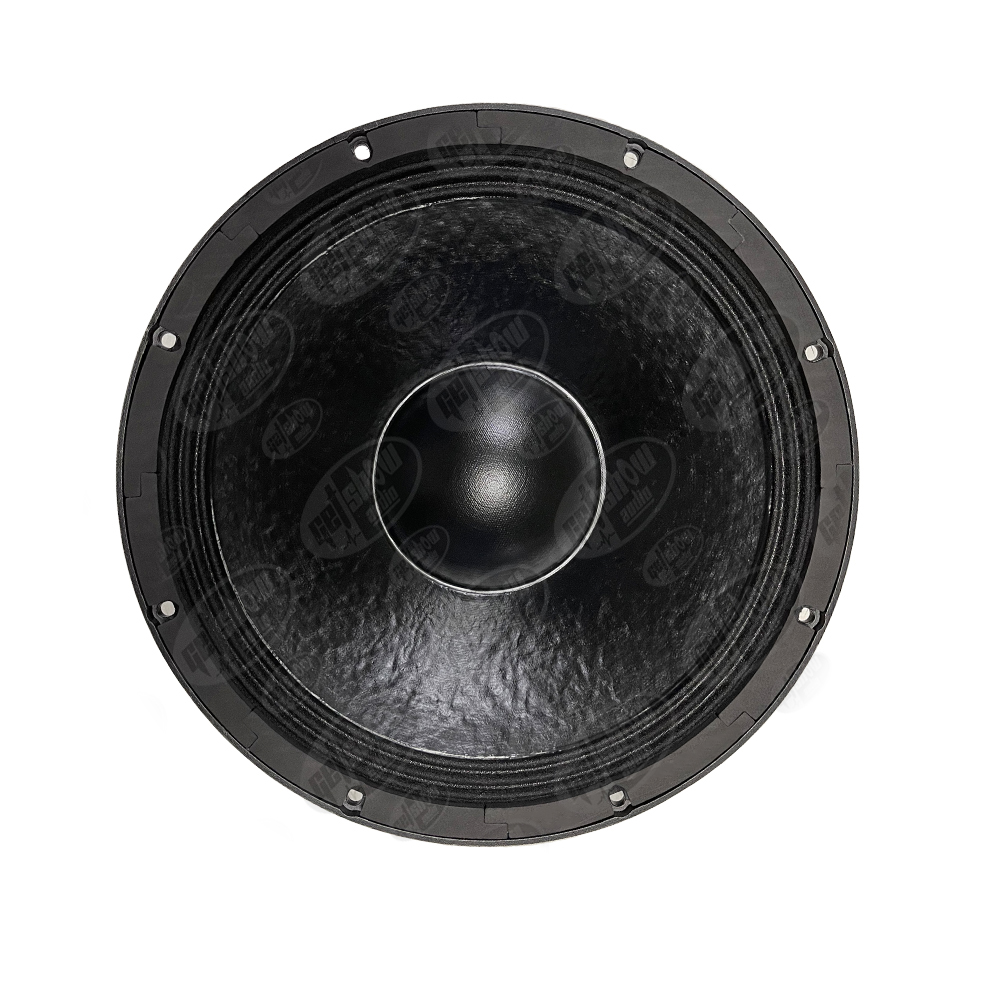

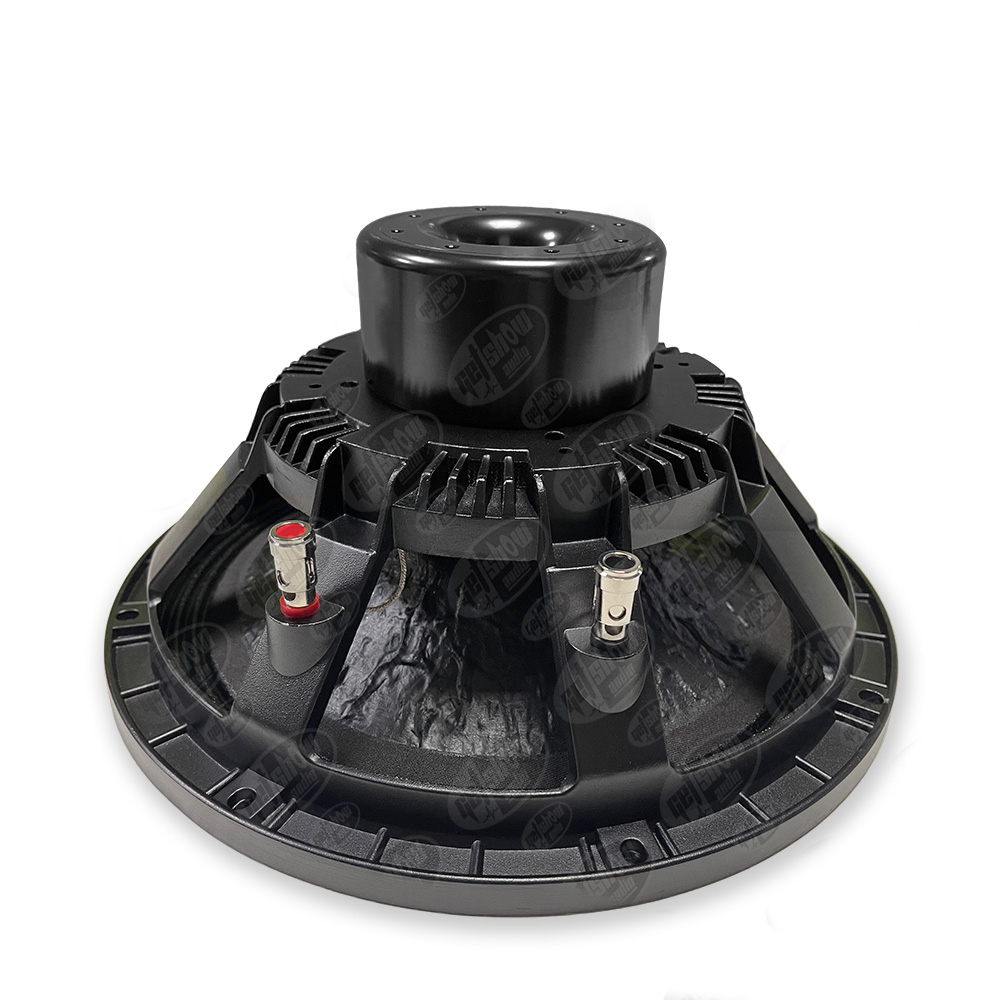

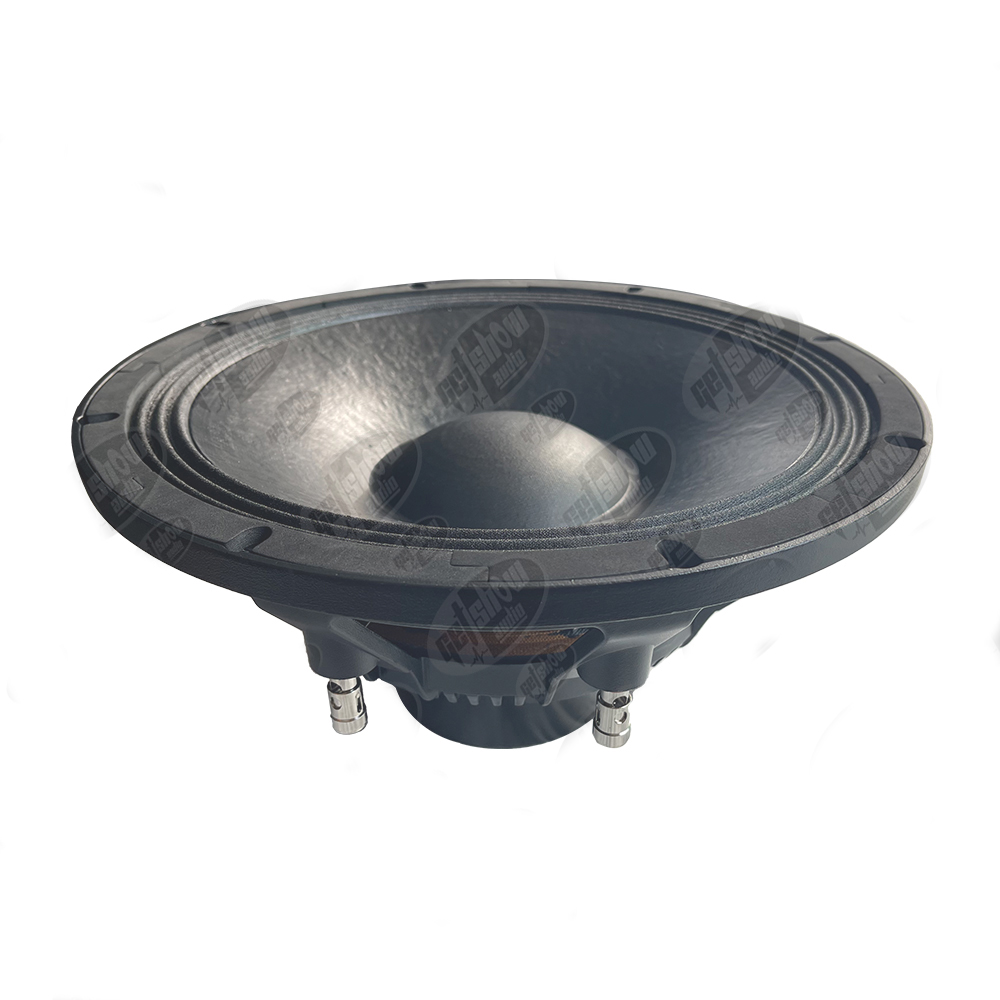

DB1241N-12 inch LF Driver

12 inch LF Driver
8 ohms
(RMS): 1000 Watts
Voice Coil Diameter: 3 inch
Product description: DB1241N-12 inch LF Driver
INQUIRY

12 inch 8 ohm 1600 watts woofer speaker LF driver loudspeaker

The Getshow DB1241N will sure change the game on vocal reproduction! Features a large 3” voice coil that results in very high efficiency while providing smooth and accurate response.

Highlights

* Nominal Impedance: 8 Ohms

* Rated AES Power Handling (RMS): 1000 Watts

* Program Power: 2000Watts

* Voice Coil Diameter: 3″

Specification		Parameters
Model： DB1241N		Fo: 52Hz
Nominal Impedance: 8 ohm		Re： 5.5ohm
Power Handling Capacity(RMS): 1000w		Qes: 0.220
Continuous Power Handling: 2000 W		Qms: 8.748
Sensitivity: 98dB		Qts: 0.214
Frequency Range: 50-3500Hz		Vas: 61.29 liters
SPL: 100db/M/W		Mms: 61.346g
Max SPL: 129dB		BL: 22.549Txm
Voice Coil Diameter: 100mm(4.0 in)		Cms: 148.495u M/N
Magnet Material: Neodymium		Sd: 53.913m㎡
		ŋ。: 3.953%
		Mmd: 100g
