Amplifier Module
IIR810S-2 Way Amplifier Module -
- 2 CH amplifier
- CLASS-D amplifier
- Built-in DSP processor
- Product description: 2 Way Amplifier Module Professional Speaker Plate

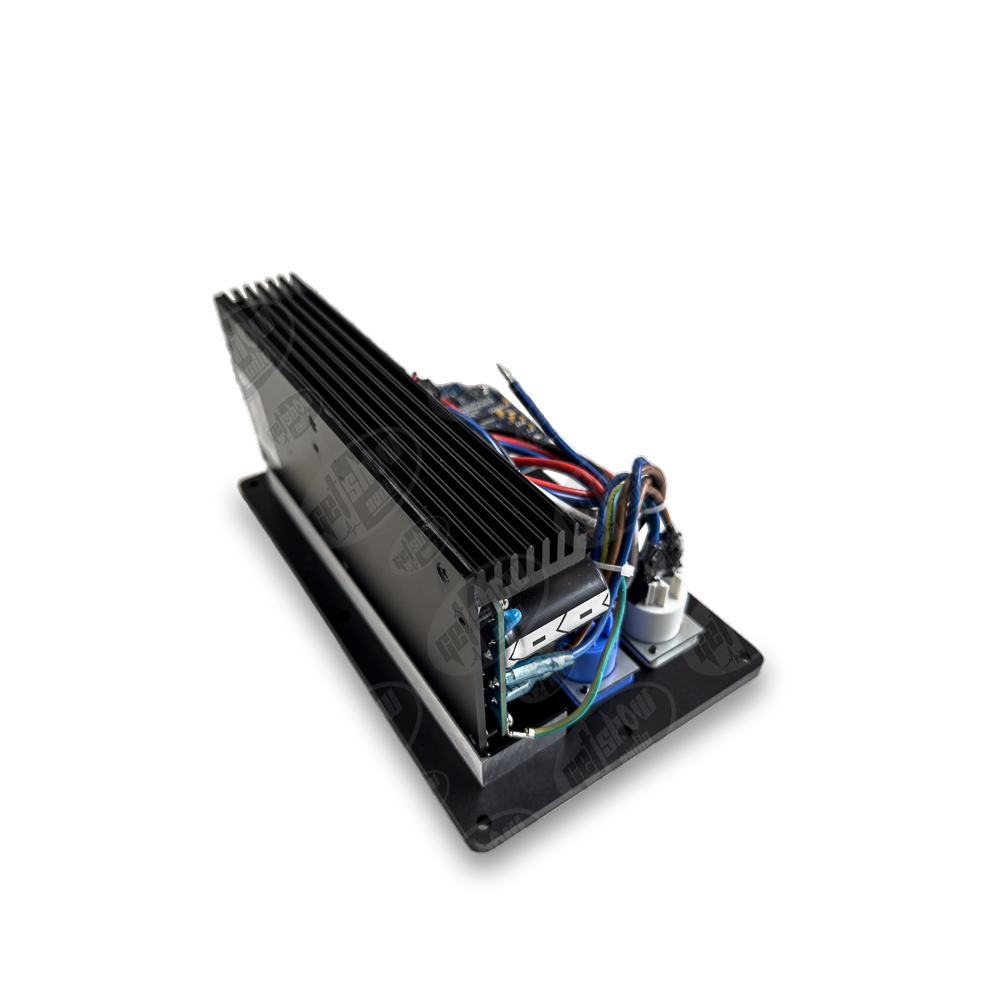

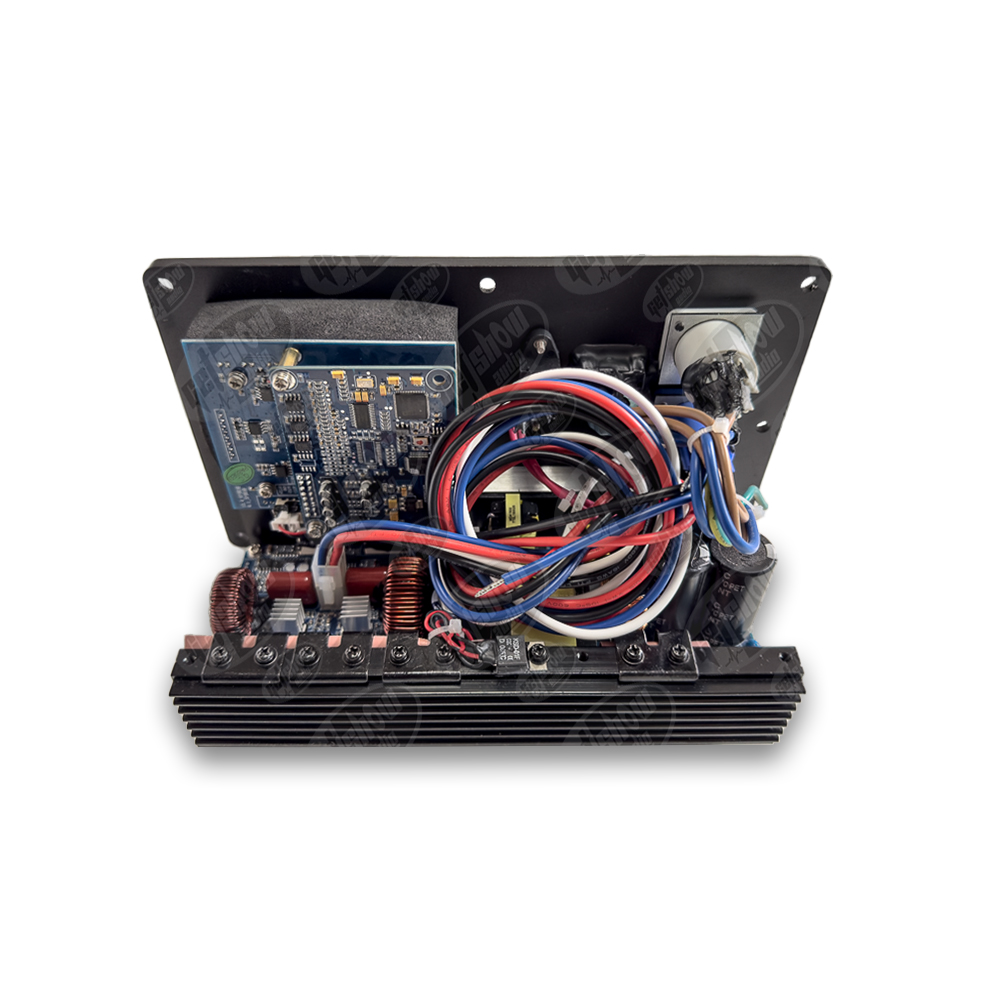

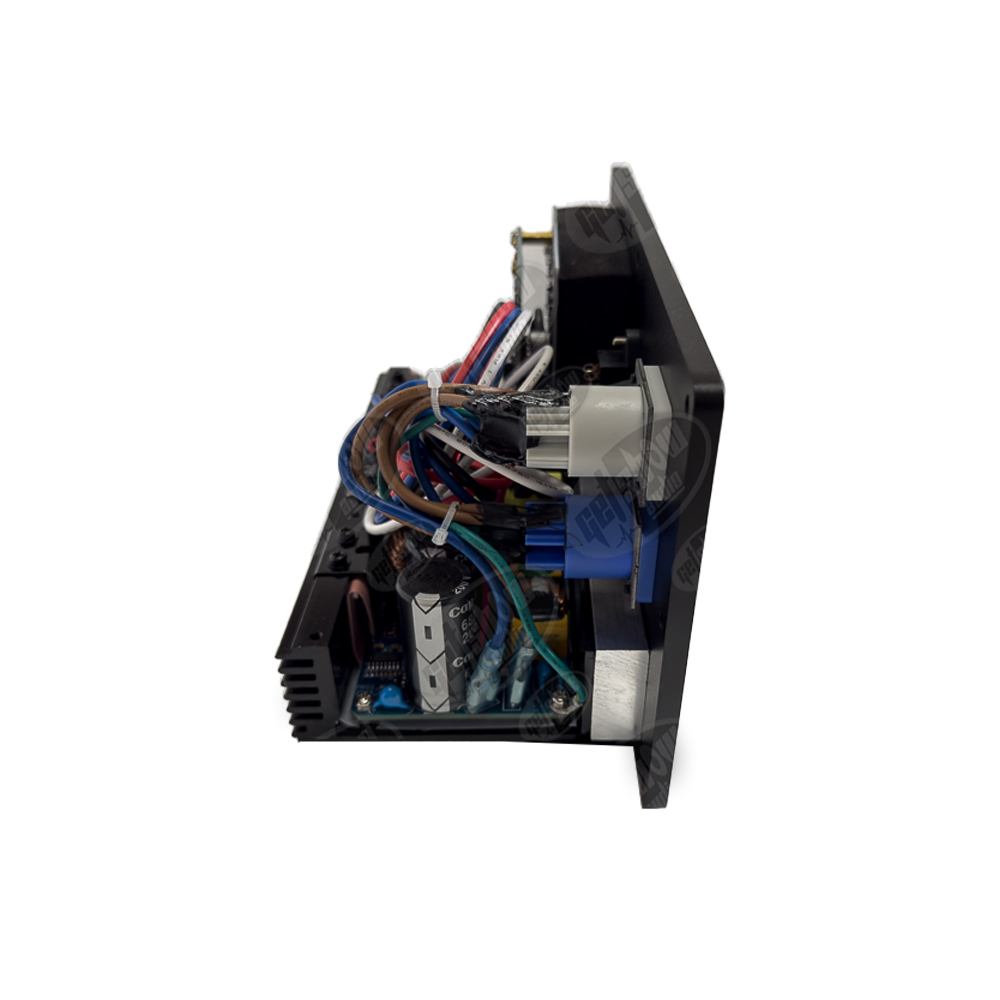

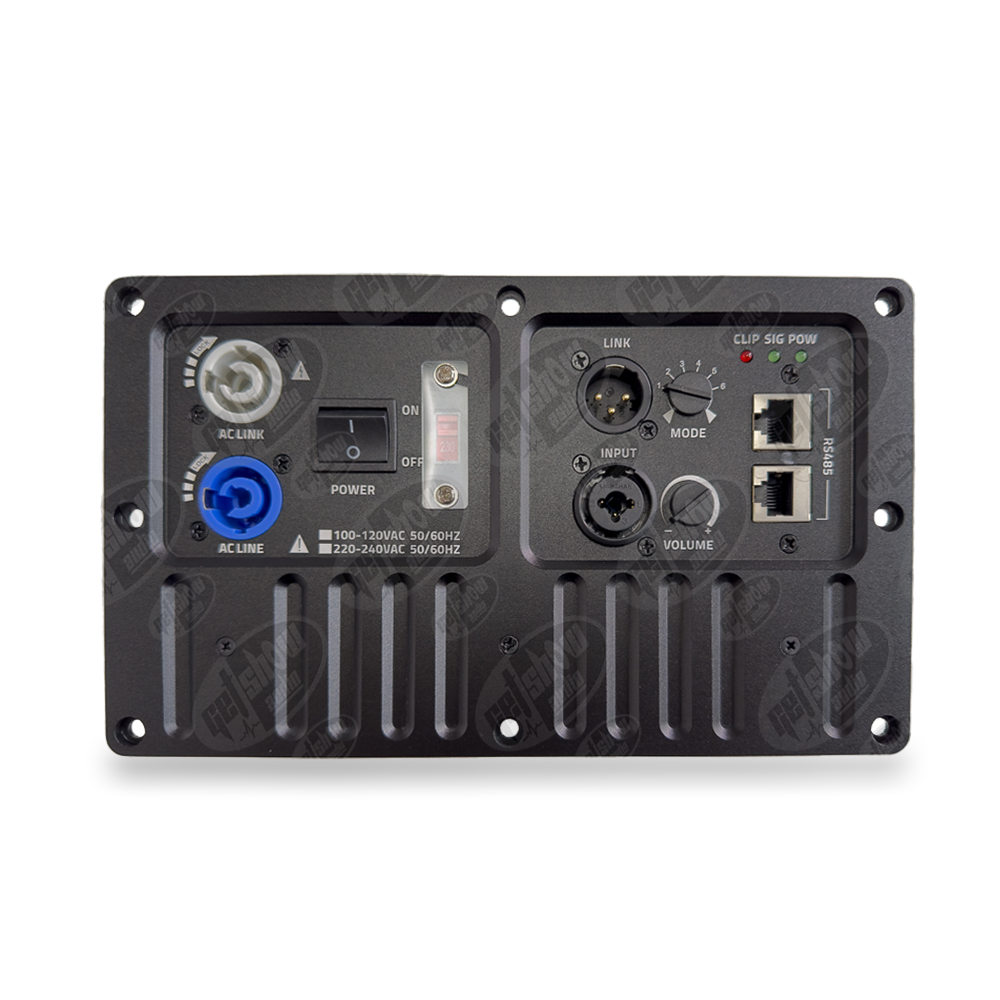

800W+150W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP
*Professional CLASS-D amplifier. *Built-in high-performance 96KHZ DSP audio processor, RS485 online or network adjustment. * Free Software is offered *115-230v general working voltage *Full sealed with the box, can be installed without a partition. *Widely used in professional speaker, line array speaker
| Specification | |
| Model : | IIR810S |
| Rated Power 8 Ω : | 400W(LF)+150W(HF) |
| Rated Power 4 Ω : | 800W(LF) |
| Frequency Response ： | DSP Control |
| THD 1KHZ ： | ≤0.5 |
| Damping Factor ： | >200 |
| Slew Rate ： | >20V/us |
| S/N ： | >95dB |
| Sensitivity : | 0.775V |
| Input Impedance : | Balance 20K,Unbalance 10K |
| Output Topology : | CLASS-D |
| Protection : | Short circuit,DC，Overheat，Peak Pressure Limit，Soft Start |
| Voltage : | A110-240V/50Hz-60Hz voltage-selected switc |
