Power Amplifier

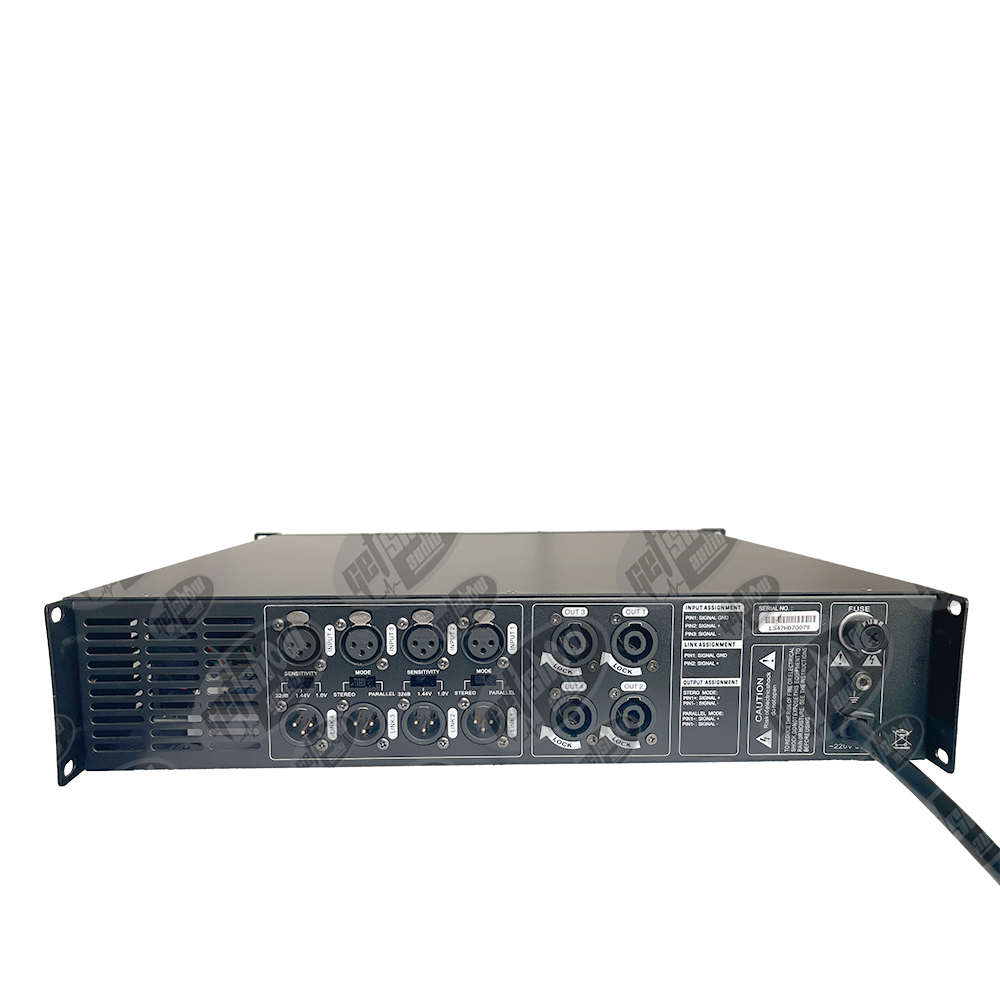

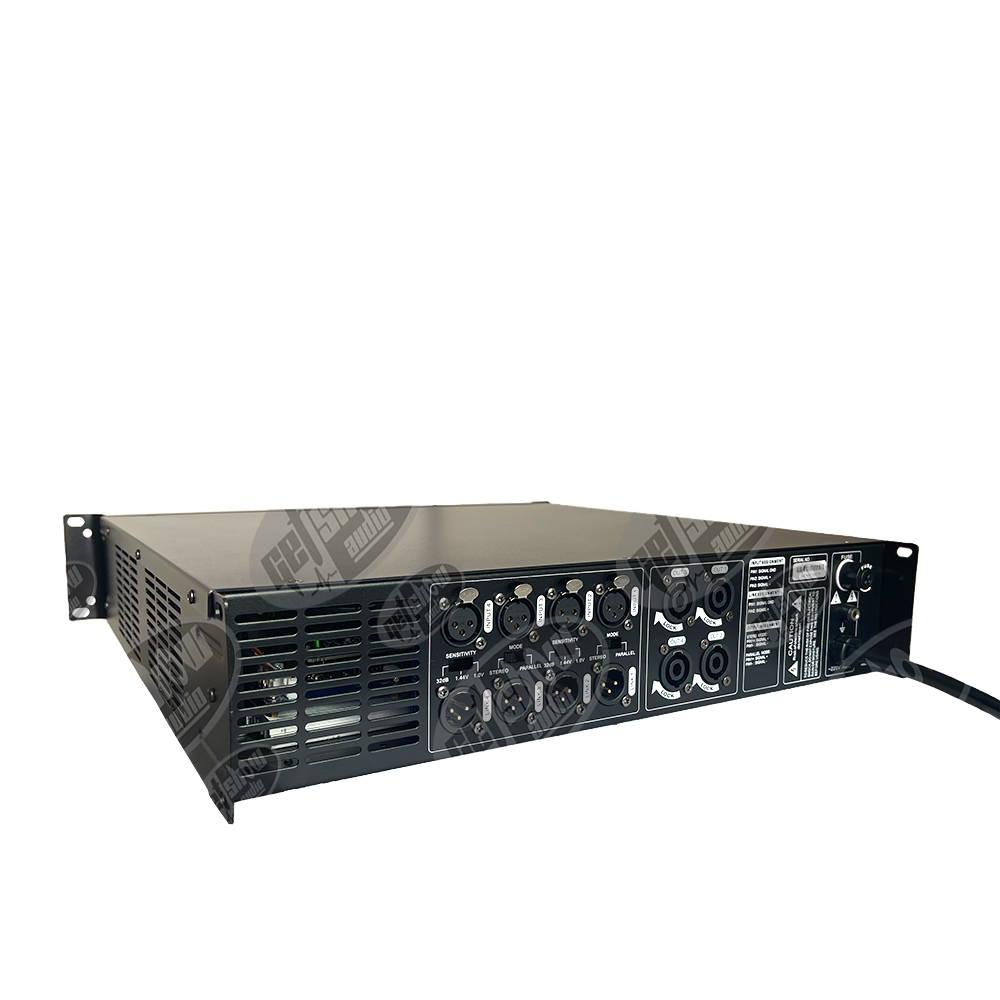

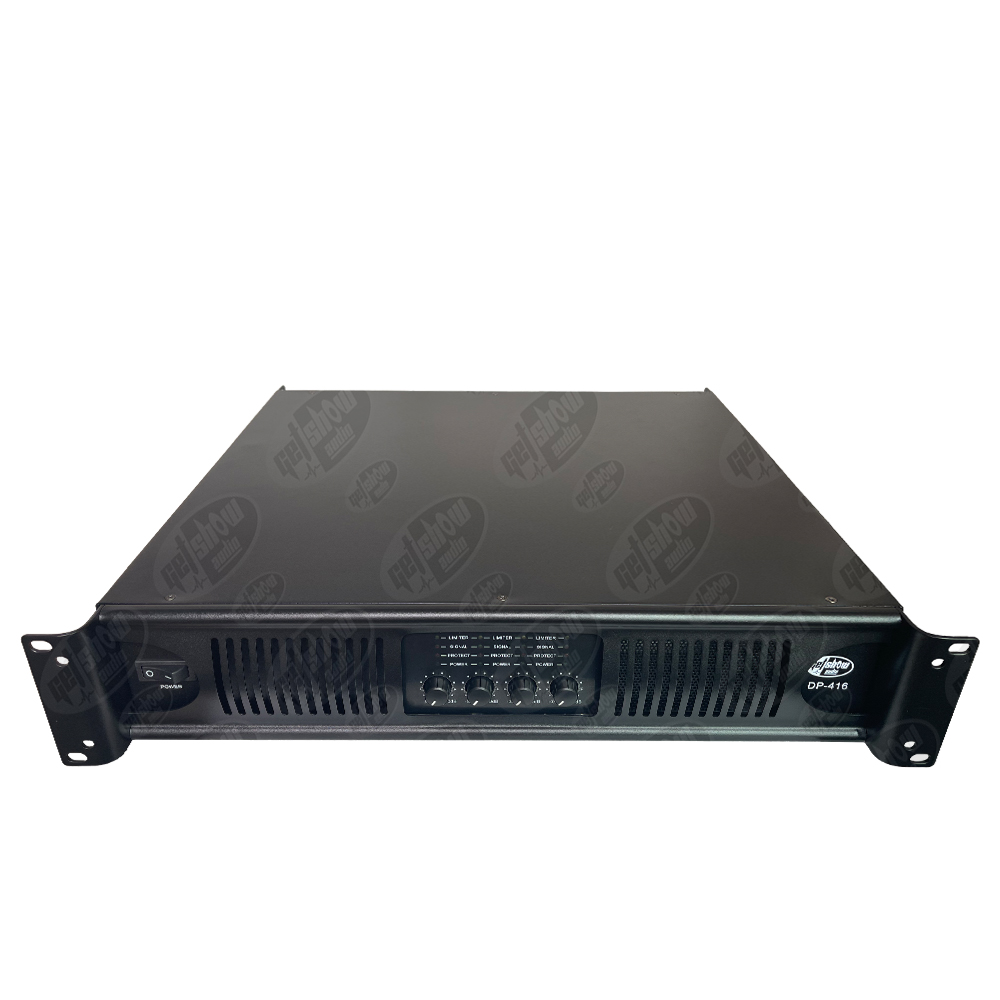

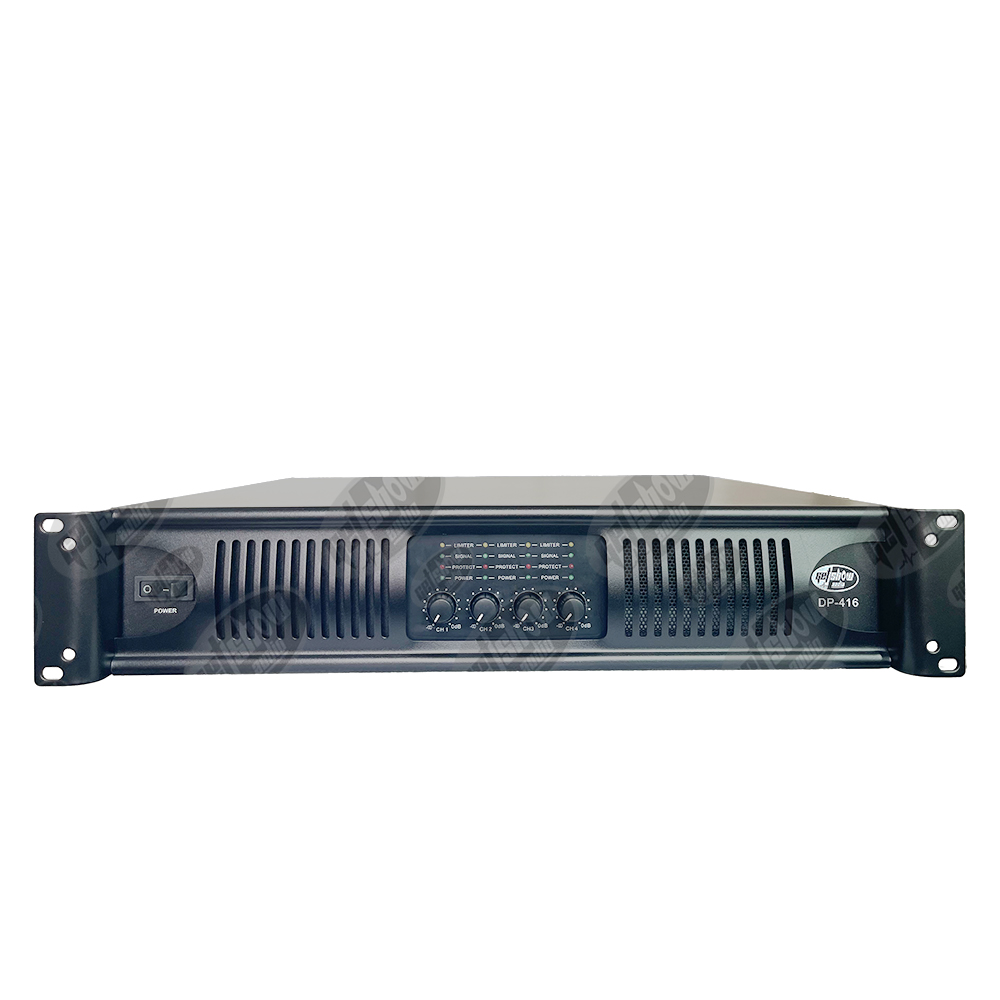

DP416--4 Channel 1.5U Power Amplifier -
- 4 CH digital amplifier
- 4x2650 Watts RMS power
- 1.5U Power Amplifier
- Advanced Power Supply Management
- Product description: 4 CH digital amplifier
| Specification | |
| Model: | DP416 |
| Rated power 8Ω : | 1600W*4 |
| Rated Power 4Ω : | 2500W*4 |
| Frequency Response (20Hz-20KHz, 1W/8Ω) ： | 0/-1dB |
| Intermodulation Distortion (Rated power, 8Ω） : | <0.35% |
| THD+N (Rated power, 8Ω/1KHz）： | <0.09% |
| Damping Factor (10-400Hz/8Ω) ： | >1000 |
| Input Sensitivity(Rated power, 8Ω/1KHz) ： | Optional 32dB/1V/1.44V |
| Input Impedance (Balance/Unbalance) : | ( 20K/10K) |
| S/N(A weighting 8Ω ： | >100dB |
| Digital Limit control coefficient ： | 1V-6V |
| Work Mode ： | Adaptive switching power suppiy, dual CPU single-chip microcomputer work throughout Program safety control |
| Input ： | XLR |
| Output ： | Speakon |
| Power Supply ： | ~110/220V, 50/60Hz |
| Construction ： | CNC high reliability electrolytic plate Bonded with aluminum panel |
| DIM (H x W x L mm) ： | 89*483*435 |
| N.W±1Kg ： | 11.3Kg |
| G.W±1Kg ： | 12.8Kg |
