ARCS ii 15 inch Powered Full Range -
- 15 inch Powered Full Range
- 3 way PA speaker
- RMS power：1600w
- Built-in DSP amplifier
- Product description: ARCS ii 15 inch Powered Full Range
The Resolution 2 is an entirely horn-loaded, surprisingly compact, full range loudspeaker enclosure. The driver complement comprises a 15” for bass, an 8” for midrange and a 1” for high frequencies.The R2’s unique combination of size, high efficiency and sonic excellence make it ideally suited to a wide range of uses. This loudspeaker resolves the requirement for quality, response and level from a small source.
| Specification: | |
| Components | 1×15"(38.5cm) ferrite LF driver 1×8"(20.5cm) Neodymium MF driver 1×1"exit,1.4" coil Neodymium compression driver |
| H×W×D | 920mm×522mm×445mm 36.2inch x 20.6inch x 17.5inch |
| Weight | 45kg |

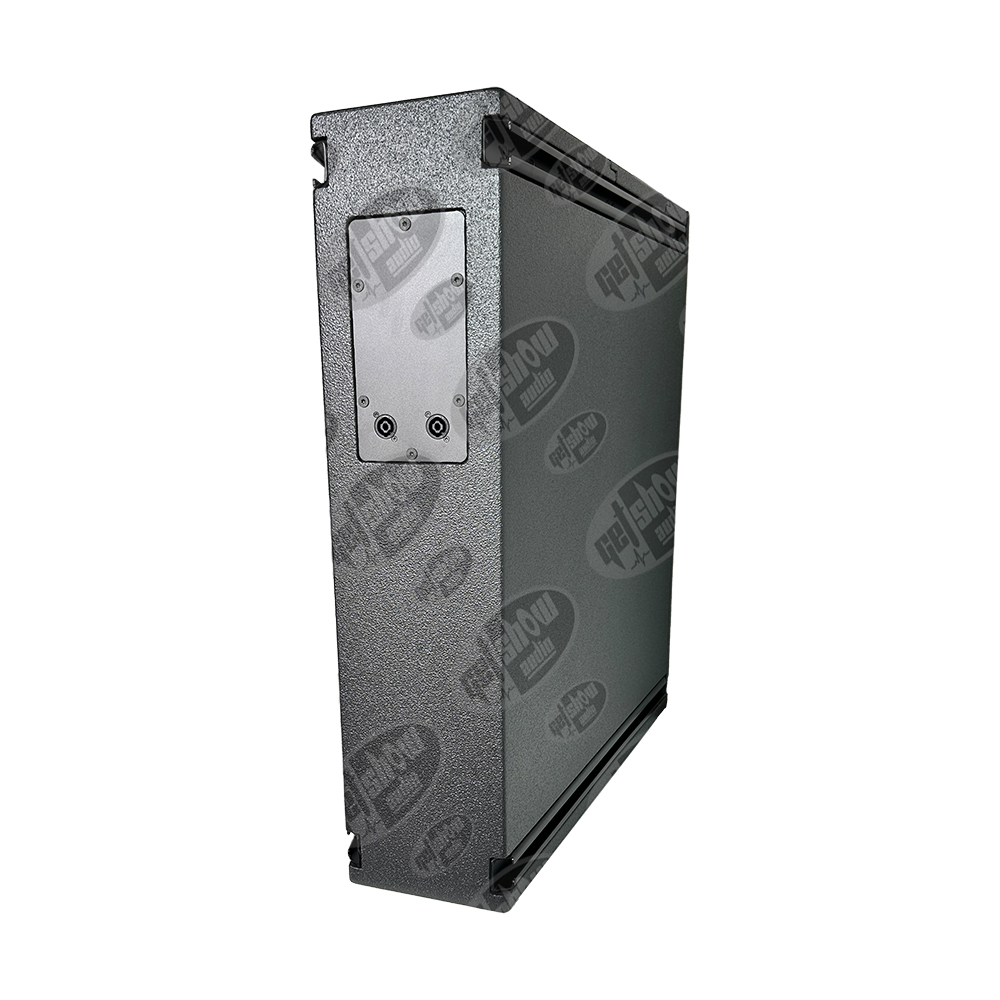

| Connectors | XLR male in & XLR female out |
| Finish | Plywood finished with textured black coating |
| Flying Points | NC |
| Stand fittings | YES |
| Coverage Pattern | 50° x25° nominal |
| Frequency Response | 50Hz-18kHz±3dB |
| Sensitivity 1W @1m | 99dB |
| Nominal Peak SPL @1m | 128 dB. |
| Crossover Frequencies | LF:28Hz-350Hz/MF:350Hz-6.5KHz/HF:6.5kHz-UP |
| Nominal Impedance | LF4Ω,HF8Ω |
| Amplifiers: | LF 800W/4Ω,MF/HF800W/4Ω |
