Amplifier Module

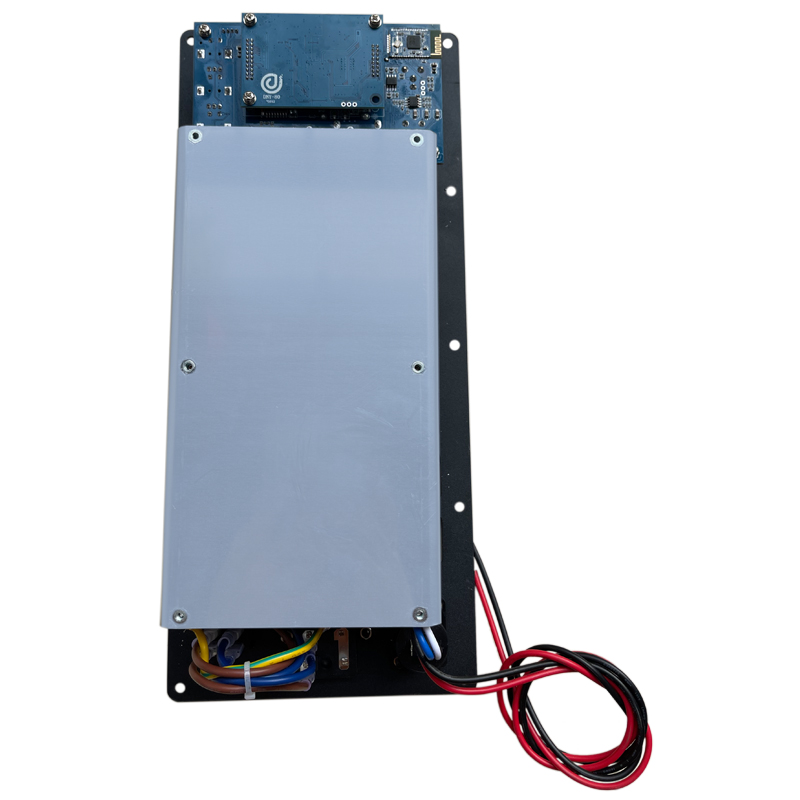

COS006-2 Way Amplifier Module

800+300W 2 Way Amplifier Module Professional Speaker Plate Amplifier Class D with DSP Built-in Bluetooth

*Professional CLASS-D amplifier.

*Built-in high-performance 96KHZ DSP audio processor, RS485 online or network adjustment.

* Free Software is offered

*115-230v general working voltage

*Built-in Pre-amp effect audio processor

*Bluetooth playing mode; LED screen display

*XLR balance RCA unbalance signal input; 6.35 plug for microphone input

*Individual Speakon output socket

*Widely used in professional speaker, 2.1 sound system, column speaker system

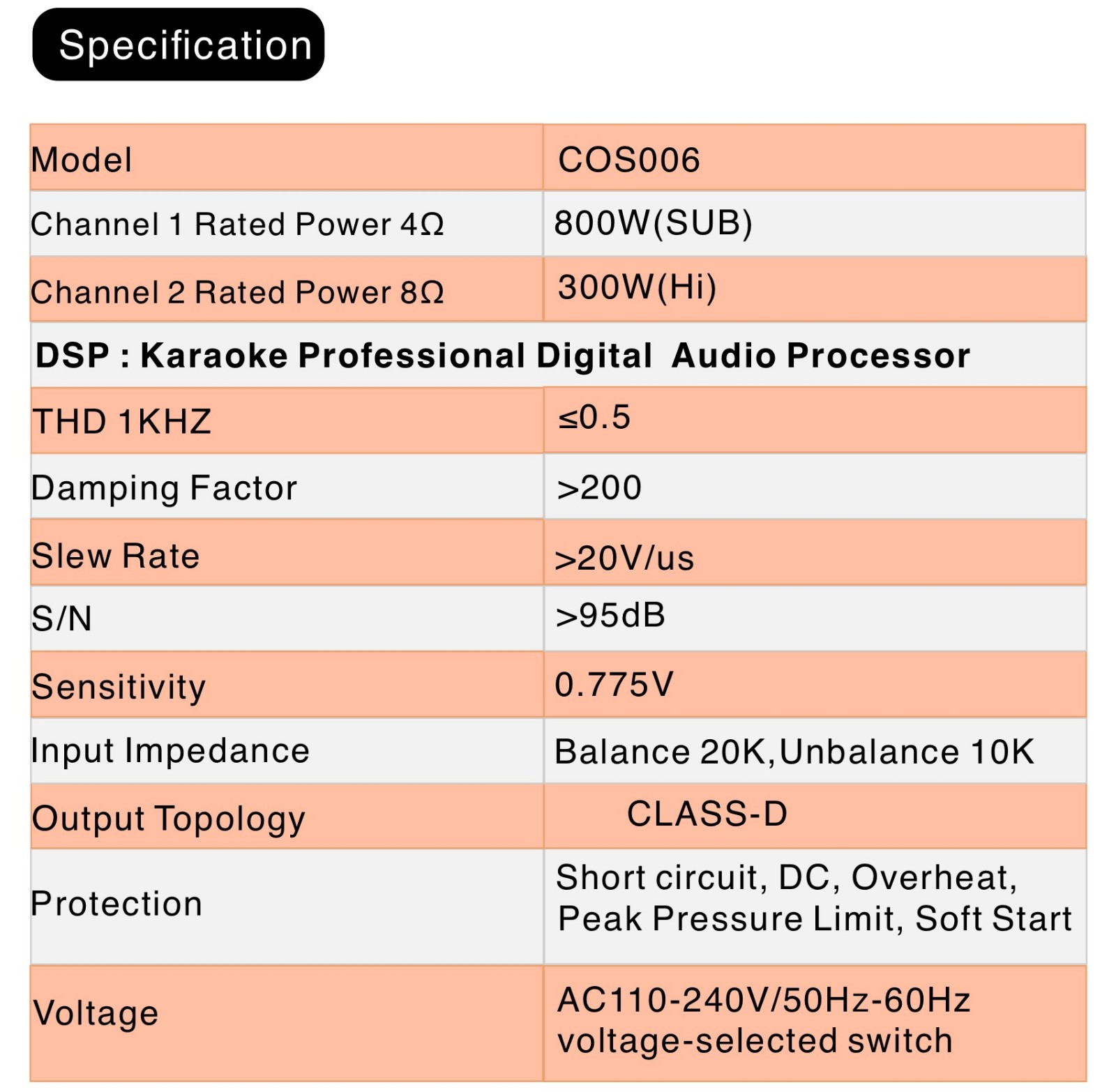

Specification
Model:	COS006
Chabnnel 1 Rated Power 4 Ω:	800W（ SUB）
Chabnnel 2 Rated Power 8 Ω:	300W（Hi)
DSP:	Karaoke Professional Digital Audio Processor
THD 1KHZ:	≤0.5
Damping Factor:	>200
Slew Rate:	>20V/us
S/N:	>95dB
Sensitivity:	0.775V
Input Impedance:	Balance 20K,Unbalance 10K
Output Topology:	CLASS-D
Protection:	Short circuit,DC，Overheat，Peak Pressure Limit，Soft Start
Voltage:	A110-240V/50Hz-60Hz voltage-selected switch
