Driver

  • D75V-8-75mm HF compression driver ferrite  -
D75V-8-75mm HF compression driver ferrite  -

D75V-8-75mm HF compression driver ferrite -

  • 75mm HF
  • 8 ohms
  • (RMS): 150 Watts
  • Voice Coil Diameter: 3 inch
  • Product description: D75V-8-75mm HF compression driver ferrite
  • INQUIRY

D75V-8-75mm HF compression driver ferrite

300 W continuous program power capacity

1.4' horn throat diameter

75 mm (3 in) aluminum woice coll

Titanium diaphragm

500 - 18500 Hz response

108 dB sensitivity

Shorting copper cap for extended HF response

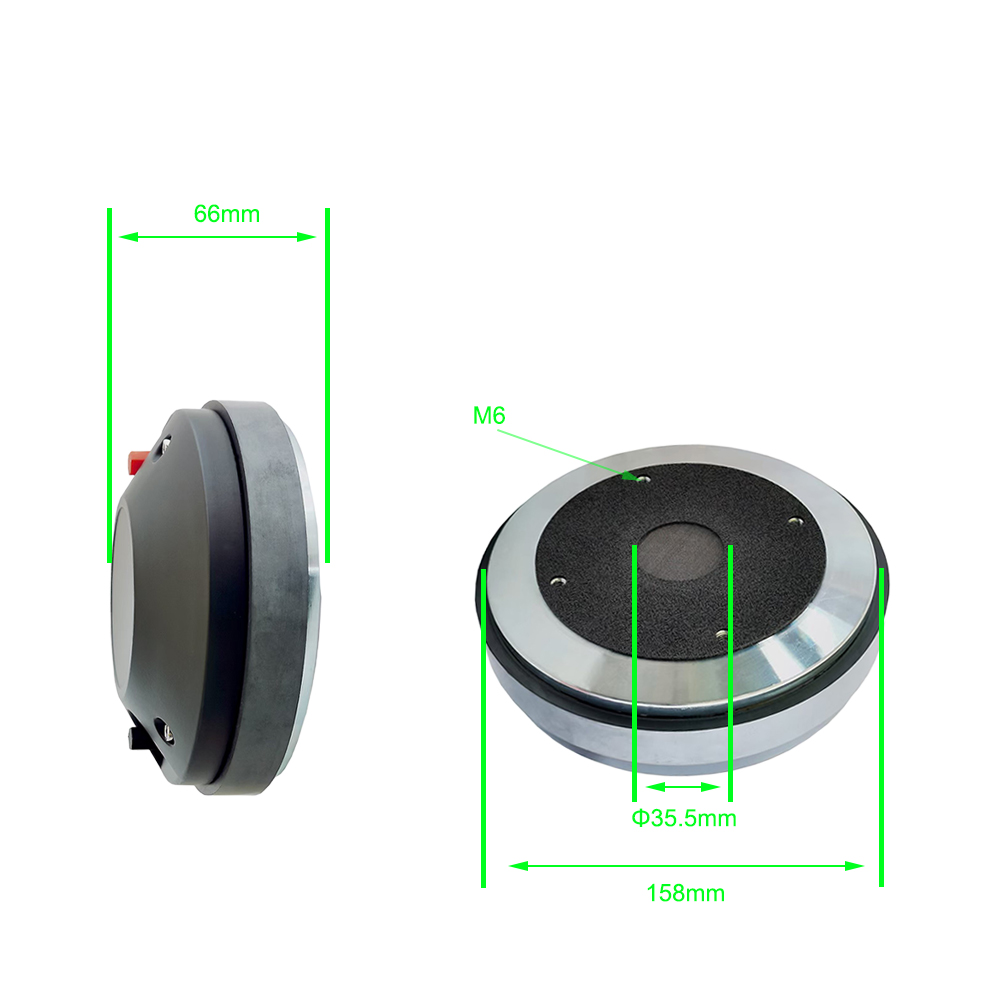

Specification
Throat Diameter36mm(1.4in)
Nominal Impedance8 ohm
Nominal power Handing150w
Sensitivity108dB
Frequency Range500-18.5 KHz
Recommended Crossover1.0 KHz
Voice Coil Diameter75mm (3.0 in)
Overall Diameter170mm (6.7 in)
Net Weight4.85kg (10.67 lb)
