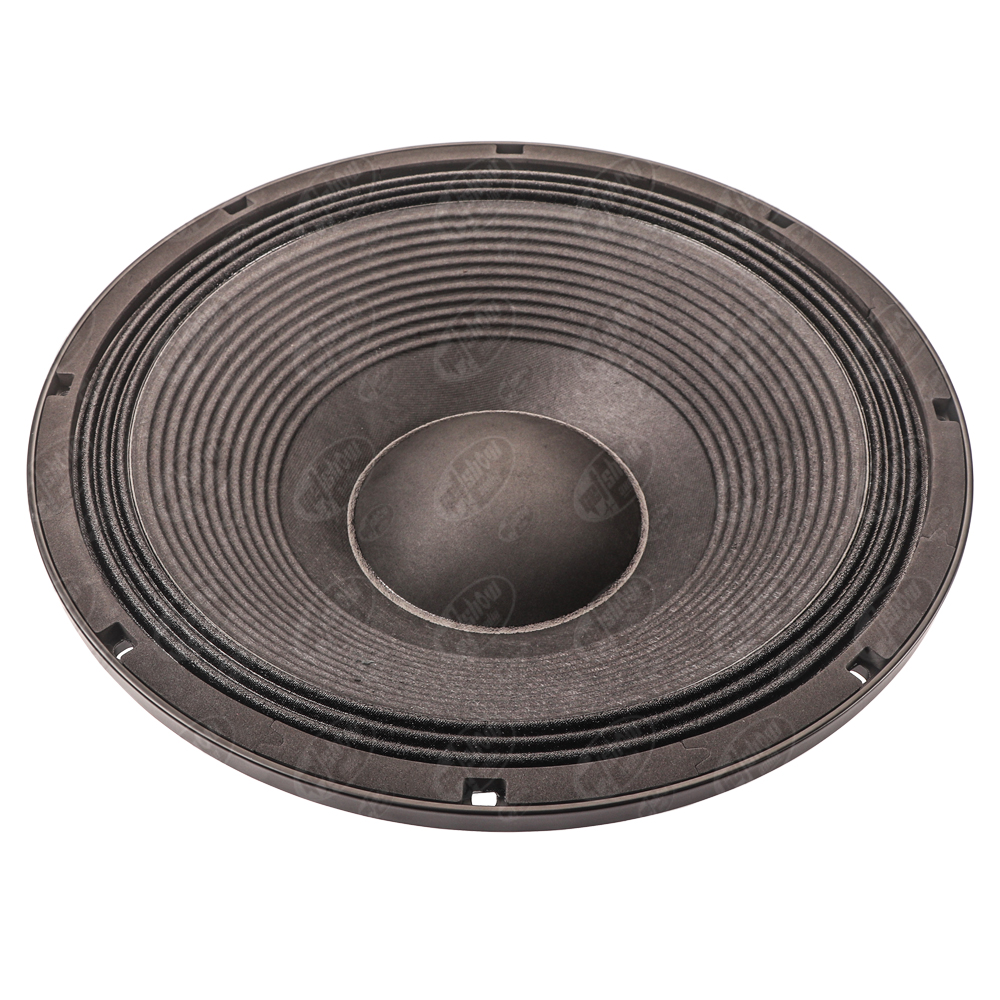

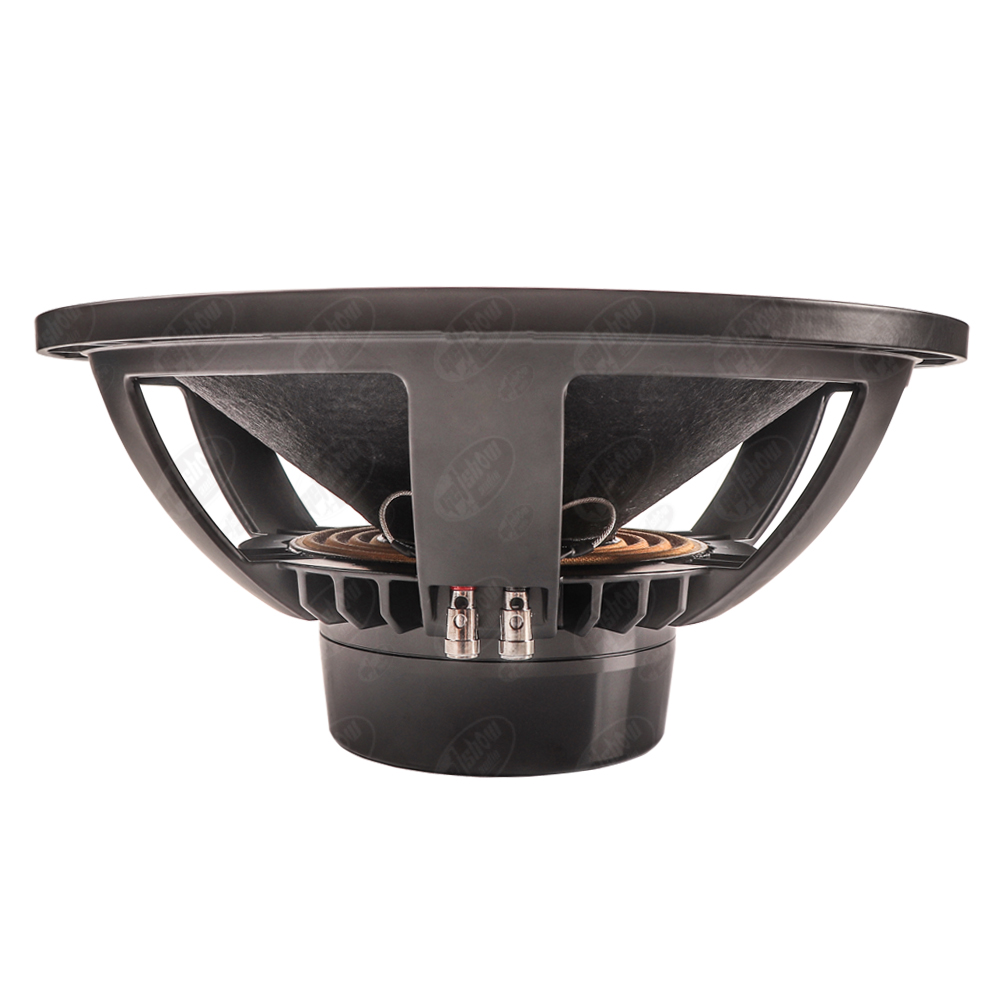

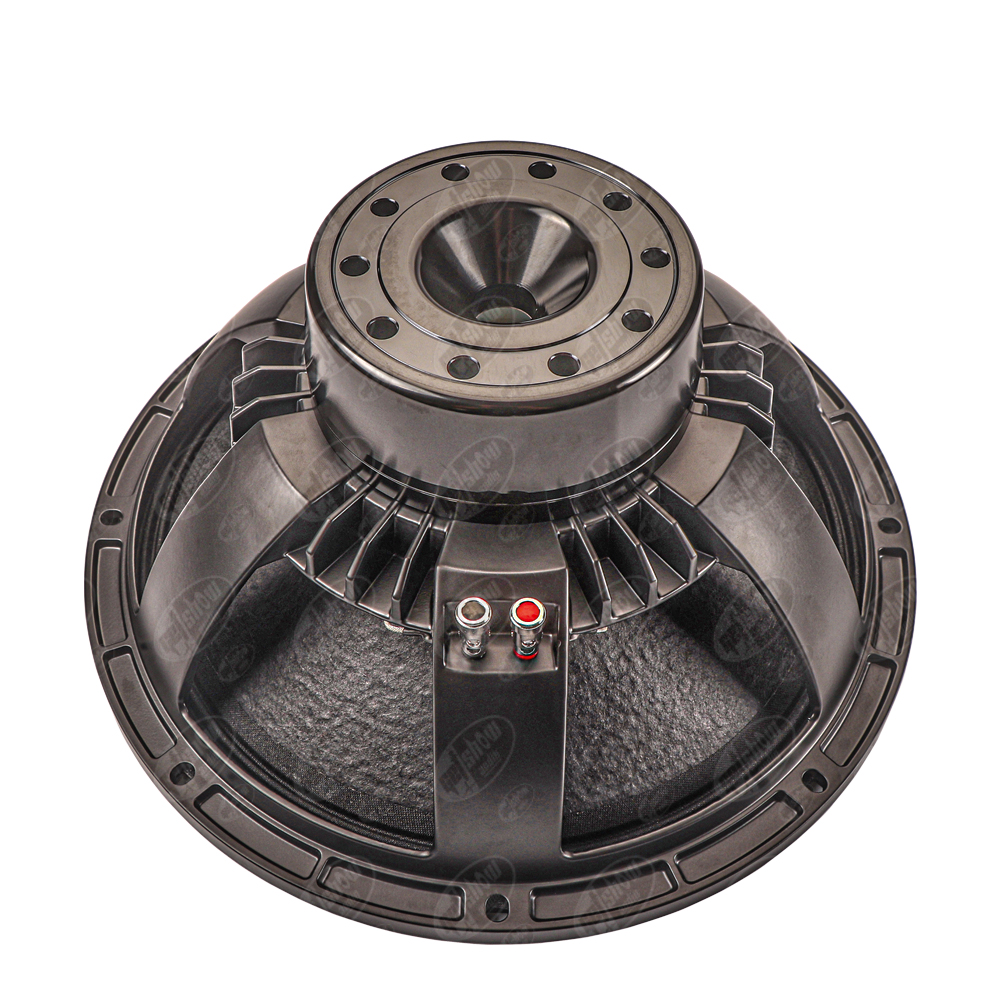

YN1541-15 inch NEO speaker - -
- 15 inch woofer
- 8 Ohms
- (RMS):1600 Watts
- Voice Coil Diameter: 3 inch
- Product description: YN1541-15 inch 8 ohm 1600 watts woofer speaker LF driver loudspeaker
15 inch 8 ohm 1600 watts woofer speaker LF driver loudspeaker
| Specification | Design | |
| Nominal Diameter: 15 inch | Surround Shape:Triple Roll | |
| Nominal Impedance: 8 ohm | Cone Shape:Radial | |
| Minimum Impedance: 6.5 ohm | Magnet Type:Neodymium Inside | |
| Continuous Power Handling: 1600 W | Spider:Big roll | |
| Nominal Power Handling(A.E.S.): 800 W | Pole Design:T-pole | |
| Sensitivity(1W/1m):96.5 dB | Recommended Enclosure Vol:dm3( ft3) | |
| Frequency Range: 50Hz - 2000Hz | Recommended Tuning Frq:50 Hz | |
| Voi:ce Coil Diameter: 99.5mm (4in) | Parameters | |
| Winding Material:Copper | Fs :47 Hz | |
| Former Material:Glass Fibre | Re:5.0 ohm | |
| Magnet Material:Neodymium | Qes:0.38 | |
| Winding Depth:28 mm (1.1 in) | Qms:5.5 | |
| Magnetic Gap Depth:13 mm (0.51 in) | Qts:0.35 | |
| Flux Density :1.3 Tesla | Vas:101 dm3( ft3) | |
| Mounting &Shipping | Sd:881 cm2 ( in2) | |
| Overall Diameter ：395 mm (15.6 in) | EtaZero：2.77% | |
| Bolt Circle Diameter ：374 mm (14.7 in) | Xmax：+-11.8 mm | |
| Baffle Cutout Diameter ：354.5 mm (13.96 in) | Xvar：+-14 mm | |
| Depth：180.8 mm (7.12 in) | Mms: 123 g | |
| Flange Gasket Thickness：12.8 mm (0.5 in) | Bl：22 TxM | |
| Air volume Occupied by driver：11.5 dm3( ft3) | Le：1.6 Mh | |
| Net Weight：8.3 kg( 18.3 lb) | EBP：134 | |
| Shipping Weight：9.8 kg( 21.61 lb) | ||
| Shipping Box：420*420*200mm (16.5x16.5x7.9 in) | ||
