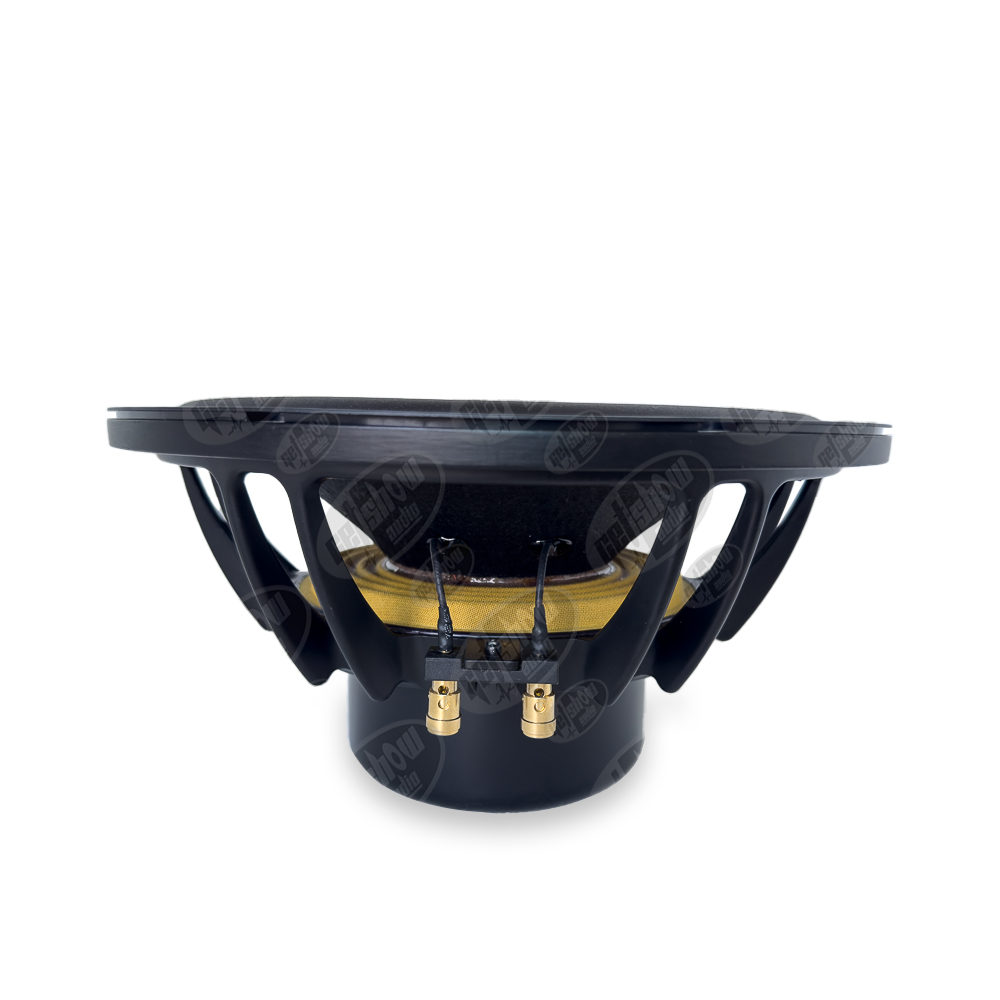

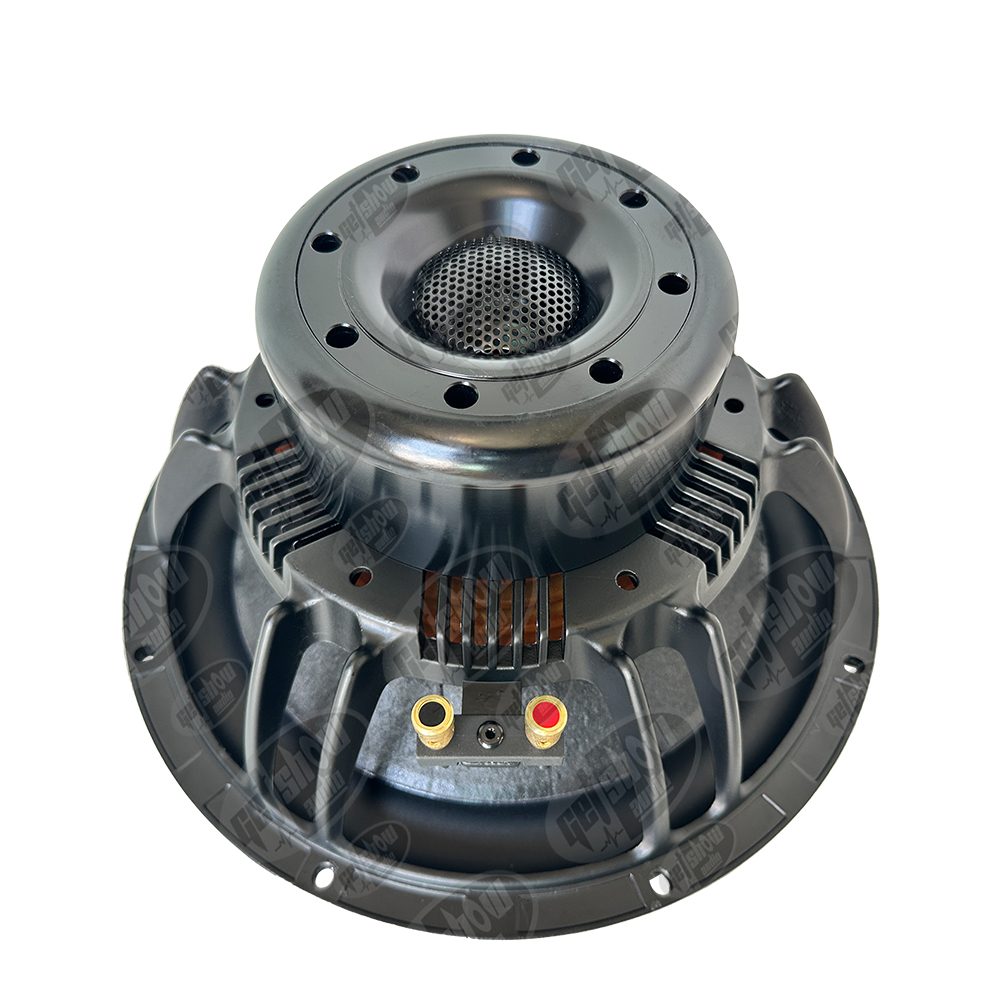

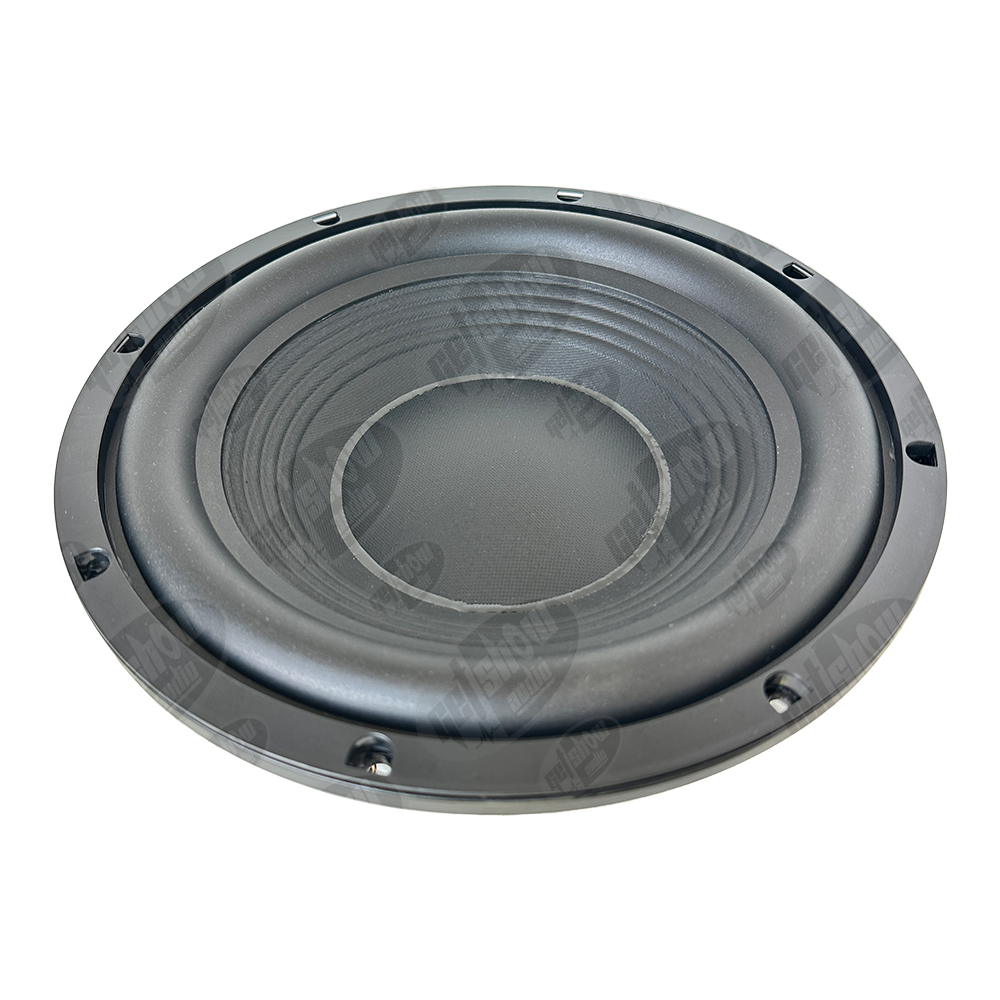

812-8-12 inch NEO speaker - -
- 12 inch woofer
- 8 Ohms
- (RMS):1000 Watts
- Voice Coil Diameter: 4 inch
- Product description: 12 inch 8 ohm 2000 watts woofer speaker LF driver loudspeaker
12 inch 8 ohm 2000 watts woofer speaker LF driver loudspeaker
The Getshow 812-8 will sure change the game on vocal reproduction! Features a large 4” voice coil that results in very high efficiency while providing smooth and accurate response.
Highlights
* Nominal Impedance: 8 Ohms
* Rated AES Power Handling (RMS): 1000 Watts
* Program Power: 2000 Watts
* Voice Coil Diameter: 4″

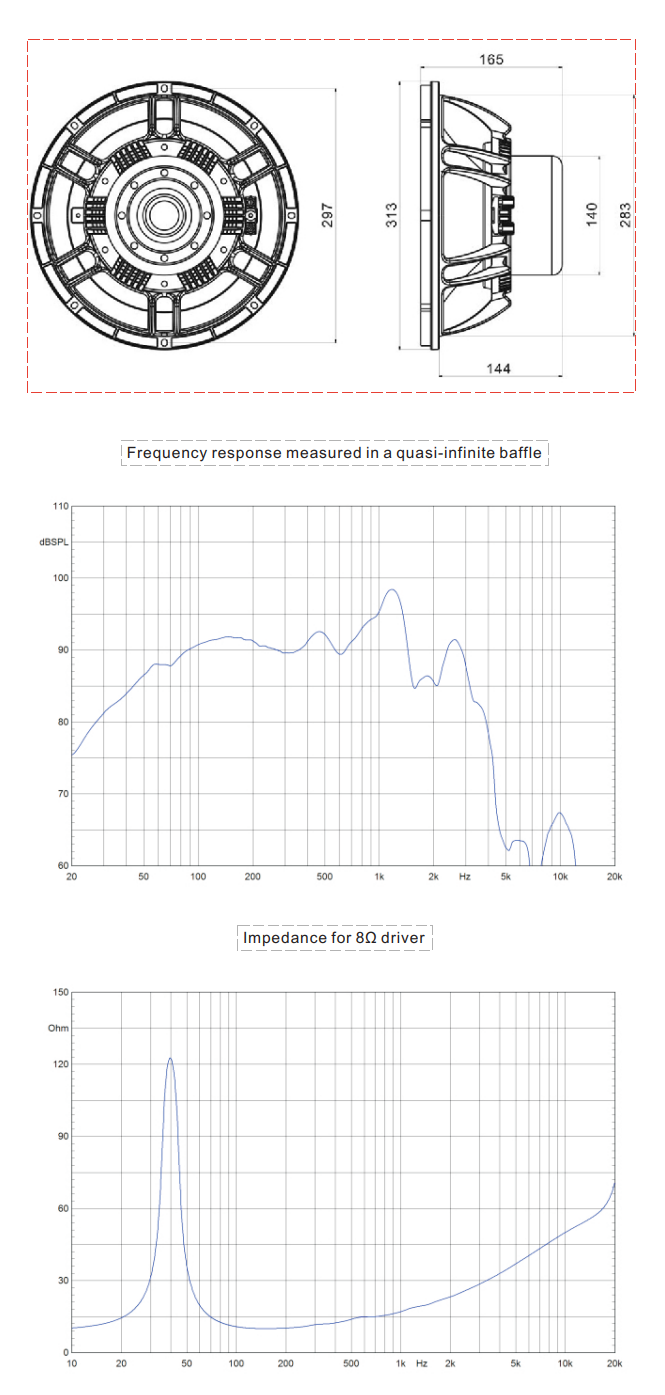

| Specification | Mounting Information | |
| Nominal Diameter: 12 inch | Overall Diameter: 313mm | |
| Nominal Impedance: 8 ohm | Mounting Holes Diameter: 8x8mmx6.5mm | |
| Minimum Impedance: 6.8 ohm | Bolt Circle Diameter: 297mm | |
| Continuous Power Handling: 1600 W | Baffle Cutout: 283mm | |
| Nominal Power Handling(A.E.S.): 800 W | Overall Depth: 165mm | |
| Frequency Range: 39Hz - 1500Hz | Net Weight: 6.7kg | |
| Thiele&Small Parameters | ||
| Fs: 39.1Hz | Mechanical Parameters(using laser) | |
| Qms: 11.2 | ||
| Qes: 0.30 | ||
| Qts : 0.29 | ||
| Re : 5.2Ω | ||
| Sd ：491cm2 | ||
| Vas: 40.2L | ||
| BxL: 24.1Tm | ||
| Mms: 138.7g | ||
| Le(1kHz): 1.3mH | ||
| Xmax: ±7.5mm |
