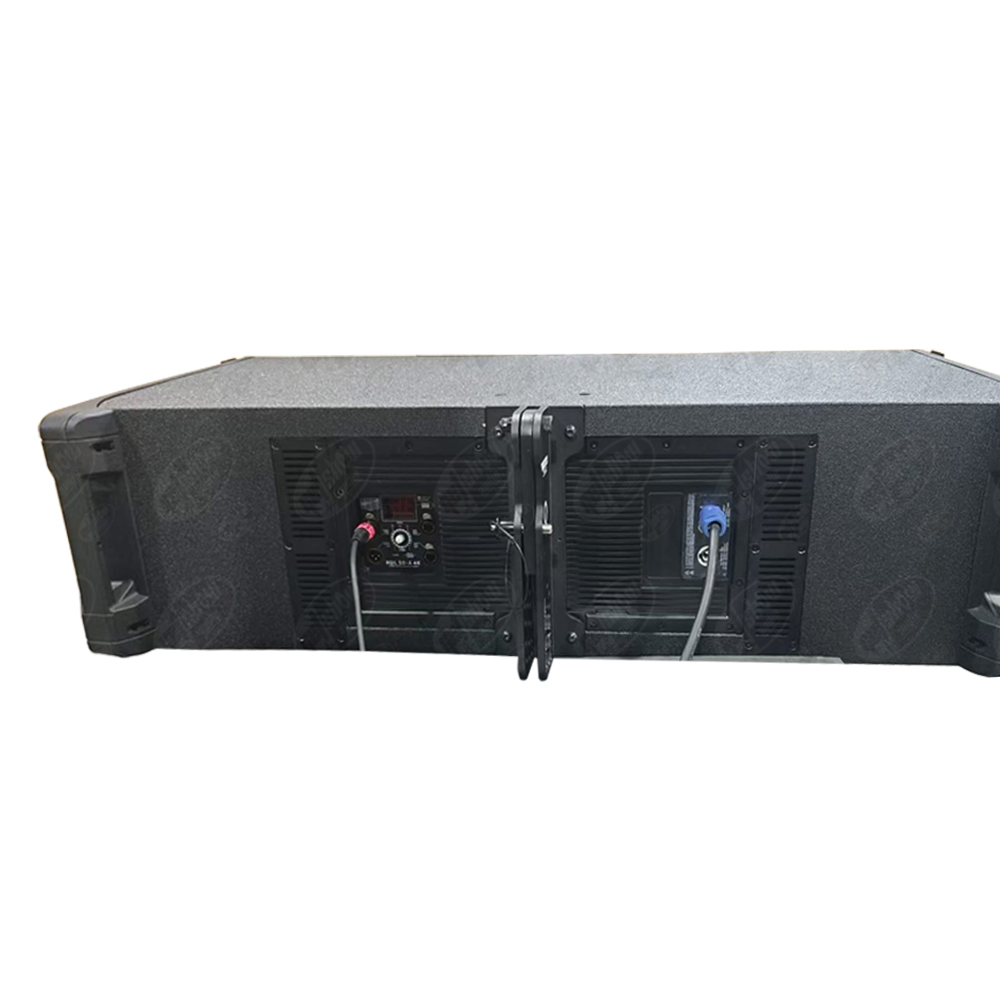

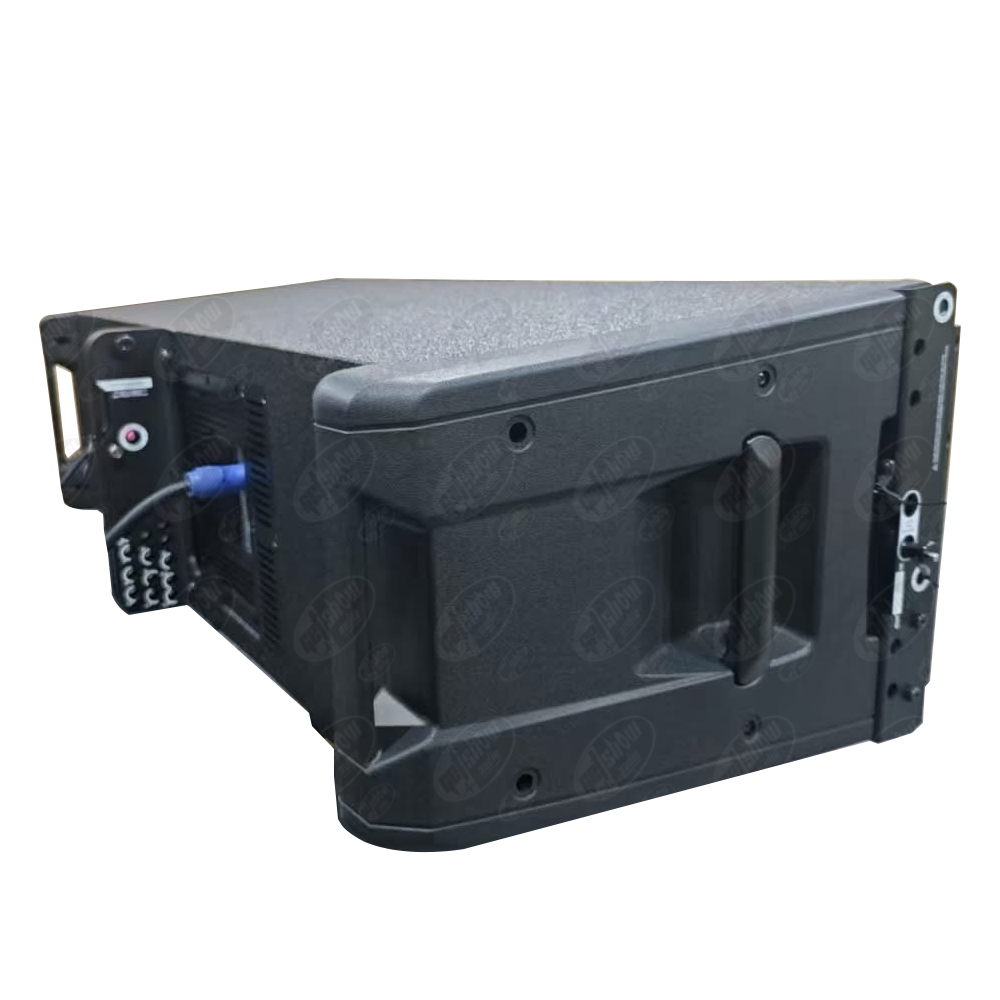

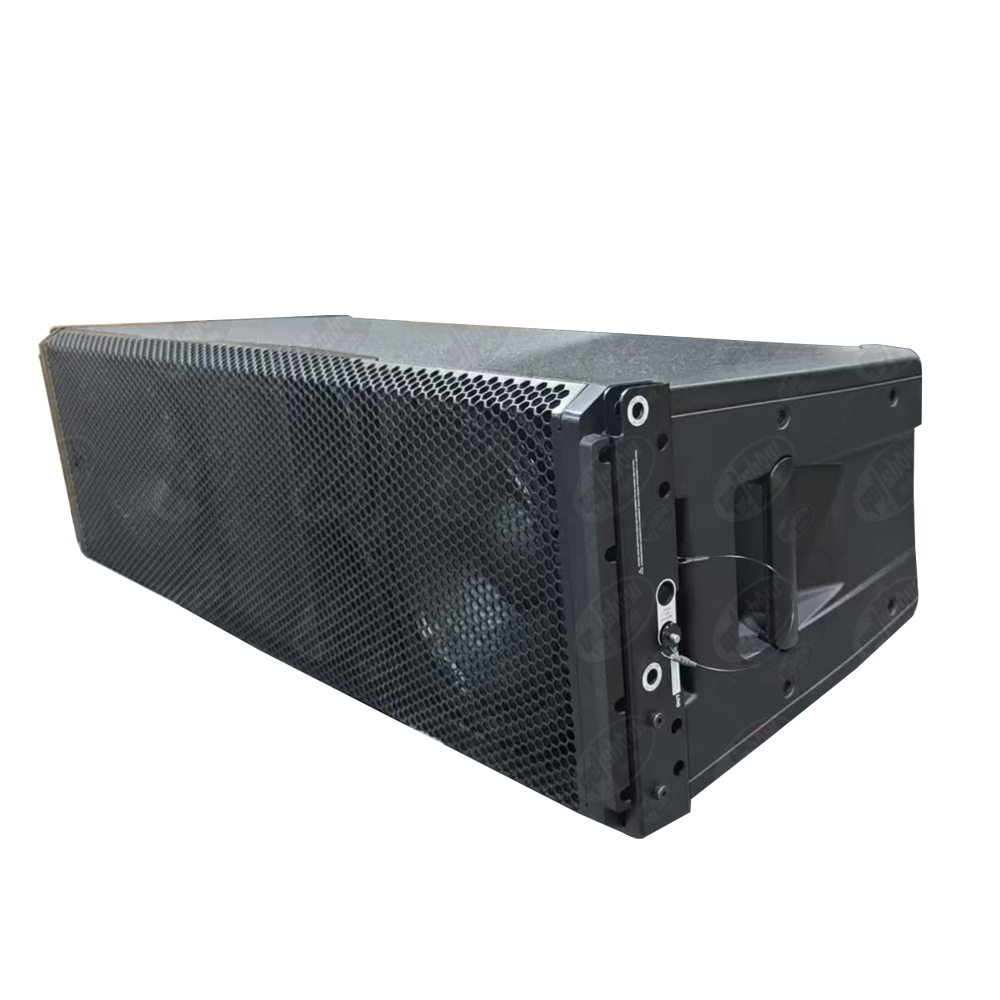

HDL-50A 2 Way Active Line Array Speaker -
- 2 x 12 inch Line Array Speaker
- NEO drivers
- RMS power：2200w
- built-in DSP module amplifier
- Product description: HDL-501A 2 Way Active Line Array Speaker
The HDL 50-A is a true active high power speaker system ready
to use touring system for large events,indoors and outdoors.
Equipped with 2x12” woofers,
4x symmetrical 6.5” midranges and two 2” drivers,
it offers excellent playback quality and high sound pressure levels with a built in 2200W RMS
powerful digital amplifier that delivers superior SPL, while reducing energy requirement.
| Specifications | |
| Frequency Response | 40 Hz - 20000 Hz |
| Max SPL @ 1m | 140 dB |
| Horizontal coverage angle | 90° |
| Vertical coverage angle | 10° |
| Compression Driver | 2 x 1.4'' neo, 3.0'' v.c |
| Midrange | 4 x 6.0'' neo, 2.0'' v.c |
| Woofer | 2 x 12'' neo, 3.0'' v.c |
| Total Power | 4400 W Peak, 2200 W RMS |
| High frequencies | 1100 W Peak, 550 W RMS |
| Mid frequencies | 1100 W Peak, 550 W RMS |
| Low frequencies | 2200 W Peak, 1100 W RMS |
| Cooling | Convection |
| Connections | Powercon IN/OUT |
| Height/Width/Depth | 366 mm x1171 mm x502 mm |
Weight | 56 kg |
