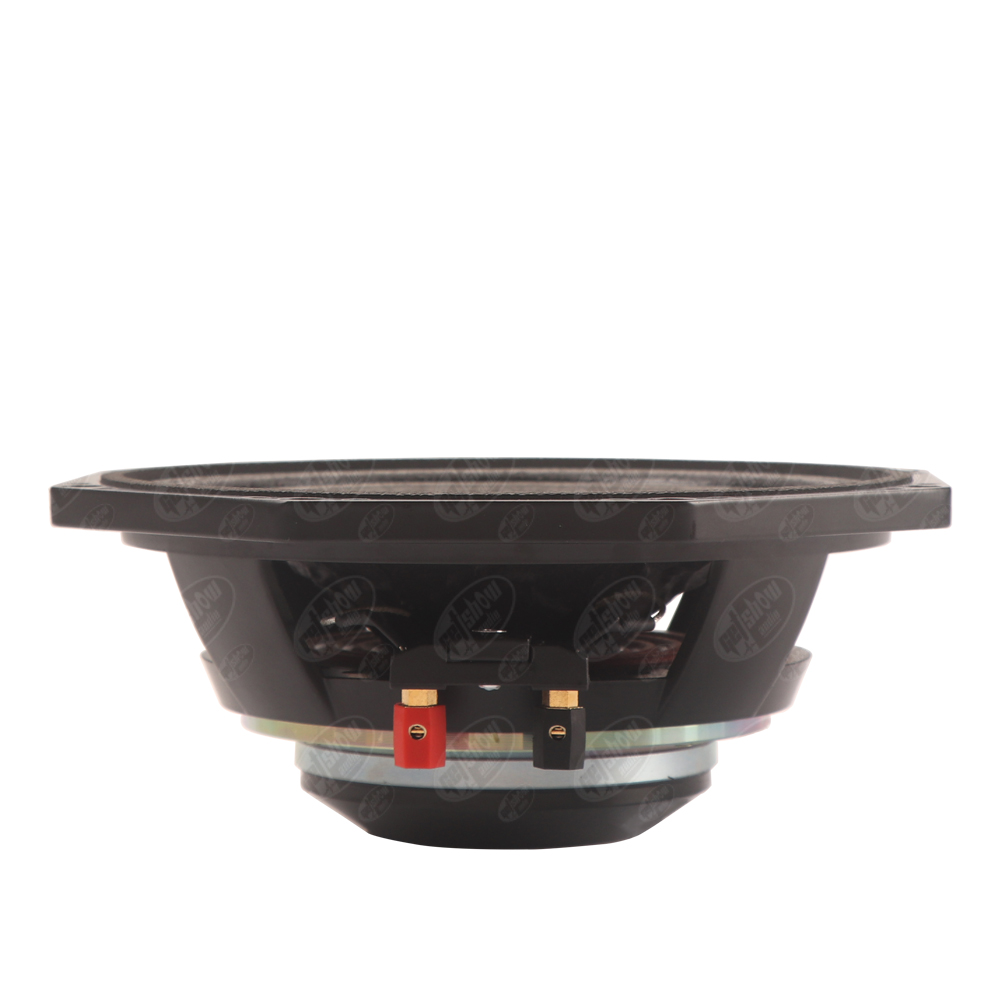

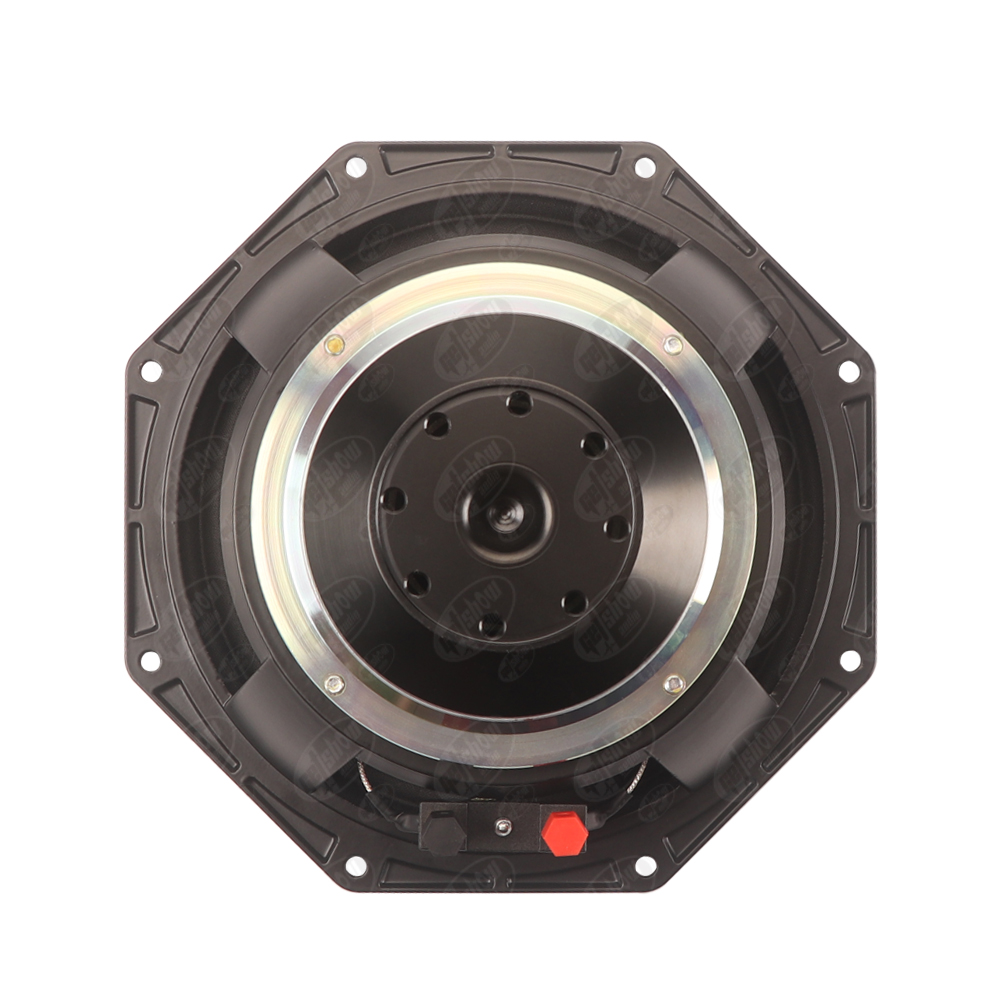

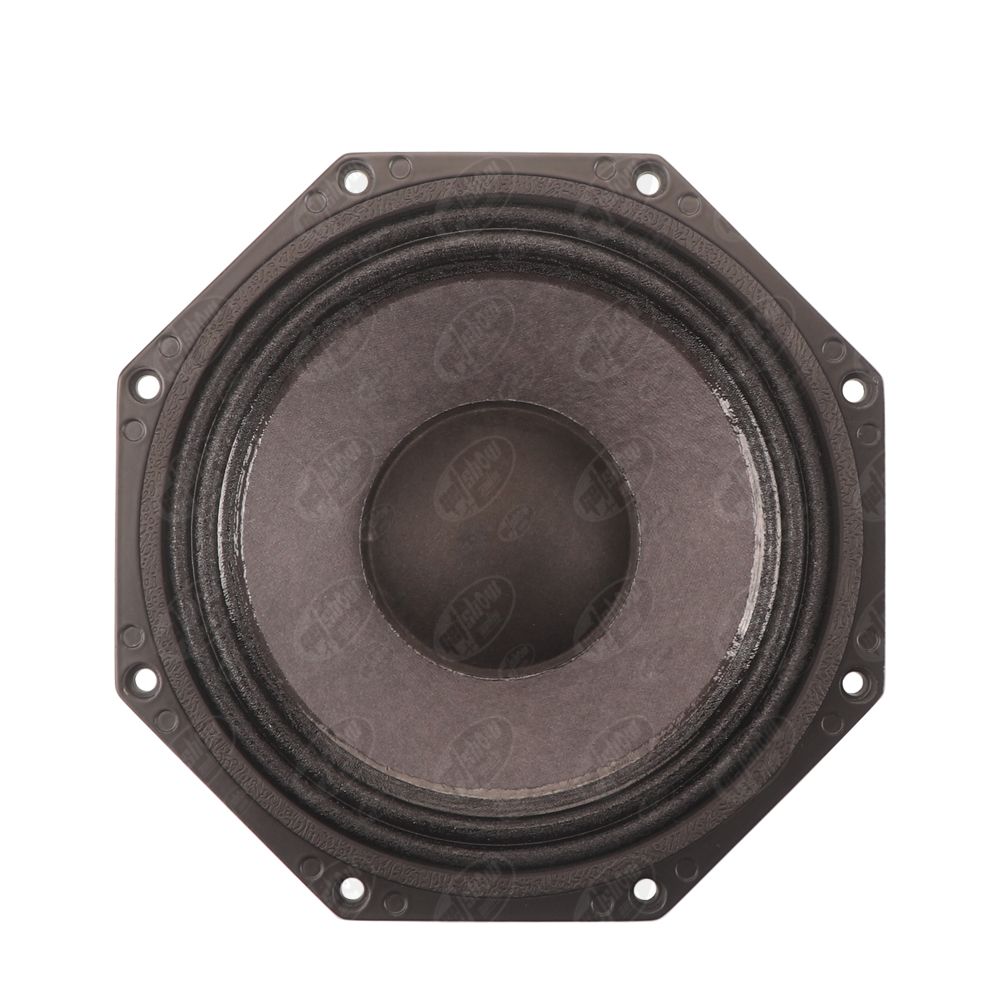

8A51NE-L 8 inch NEO speaker - - -
- 8 inch woofer
- 8 Ohms
- (RMS):150 Watts
- Voice Coil Diameter: 2 inch
- Product description: 8A51NE-L 8 inch 8 ohm 150 watts woofer speaker LF driver loudspeaker
8 inch 8 ohm 150 watts woofer speaker LF driver loudspeaker
| Specification | |
| Nominal Diameter： | 8 in |
| Nominal Impedance： | 8 ohms |
| Power Rating： | 150W RMS |
| Resonant Frequency： | 68Hz±10% |
| Frequency Range： | Fo—5 kHz |
| Sensitivity： | 96dB±2dB(1W/1m) |
| D.C.Voice Coil Resistance： | 6.3Ω±10%( at 20°C) |
| Voice Coil Diameter： | Φ51.5 mm |
| Voice Coil Winding Depth： | 13 mm |
| Voice Coil Wire Material： | Copper Clad Aluminum wire |
| Voice Coil Bobbin： | Glass Fiber |
| Magnet Depth： | 7.5 mm |
| Magnet Material/Size： | Neodymium/Φ102×Φ60×7mm |
| Frame Material： | Cast aluminum |
| Surround、Cone and Dust Cap： | Treated cloth / paper cone |
| Overall Diameter and Depth： | 208.7 mm×H85 mm |
| Net weight ： | 2.145 Kg |
