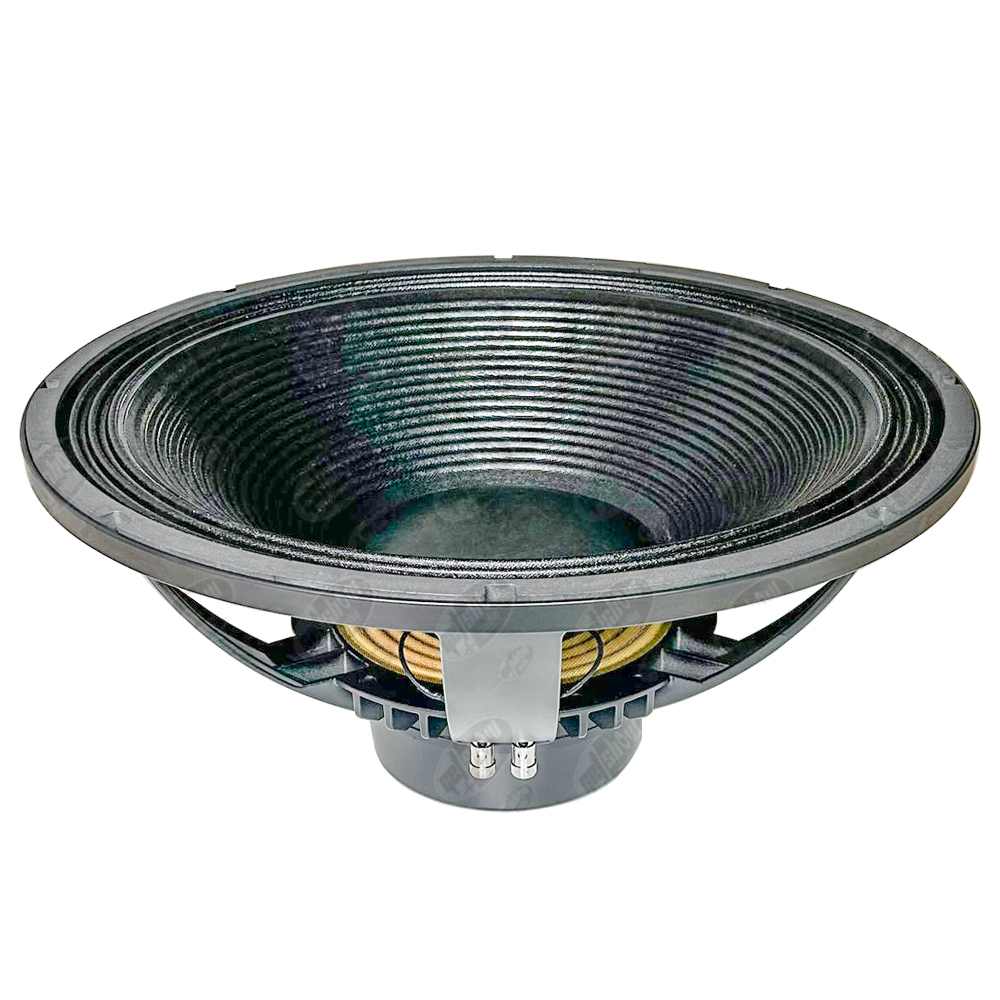

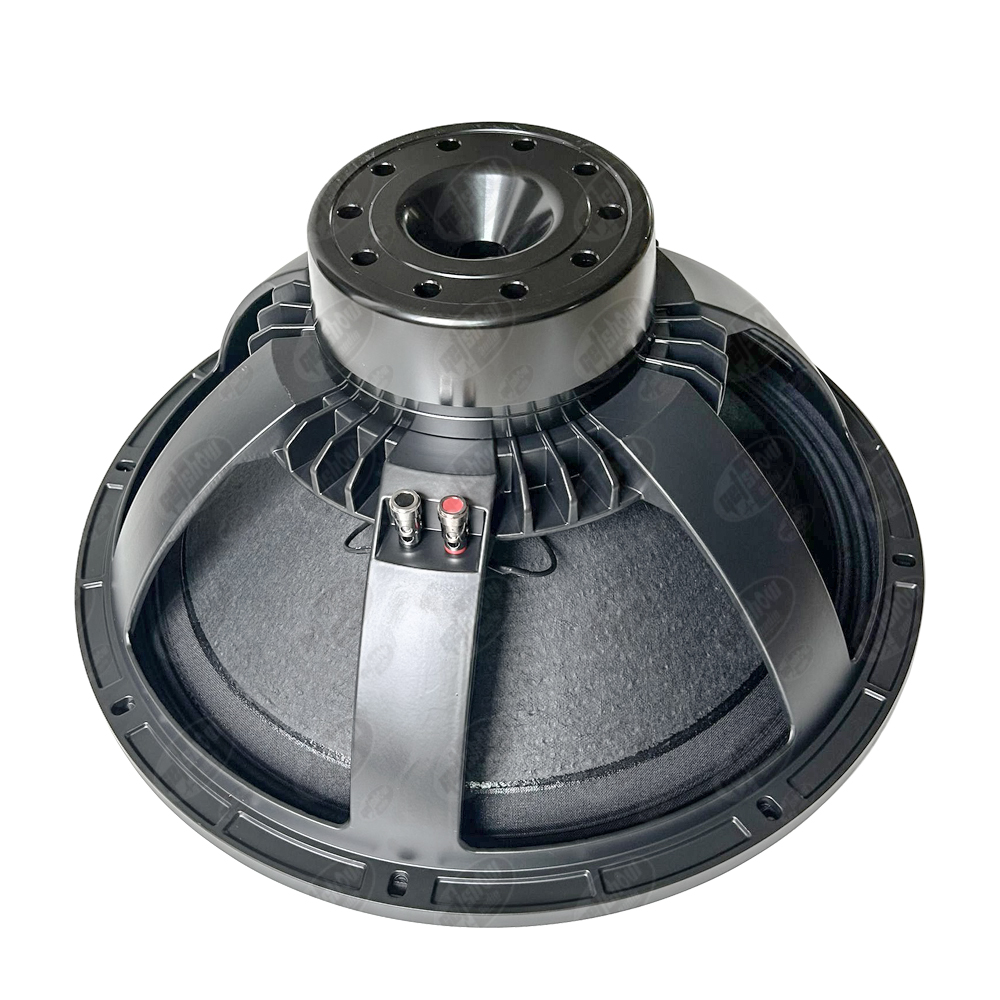

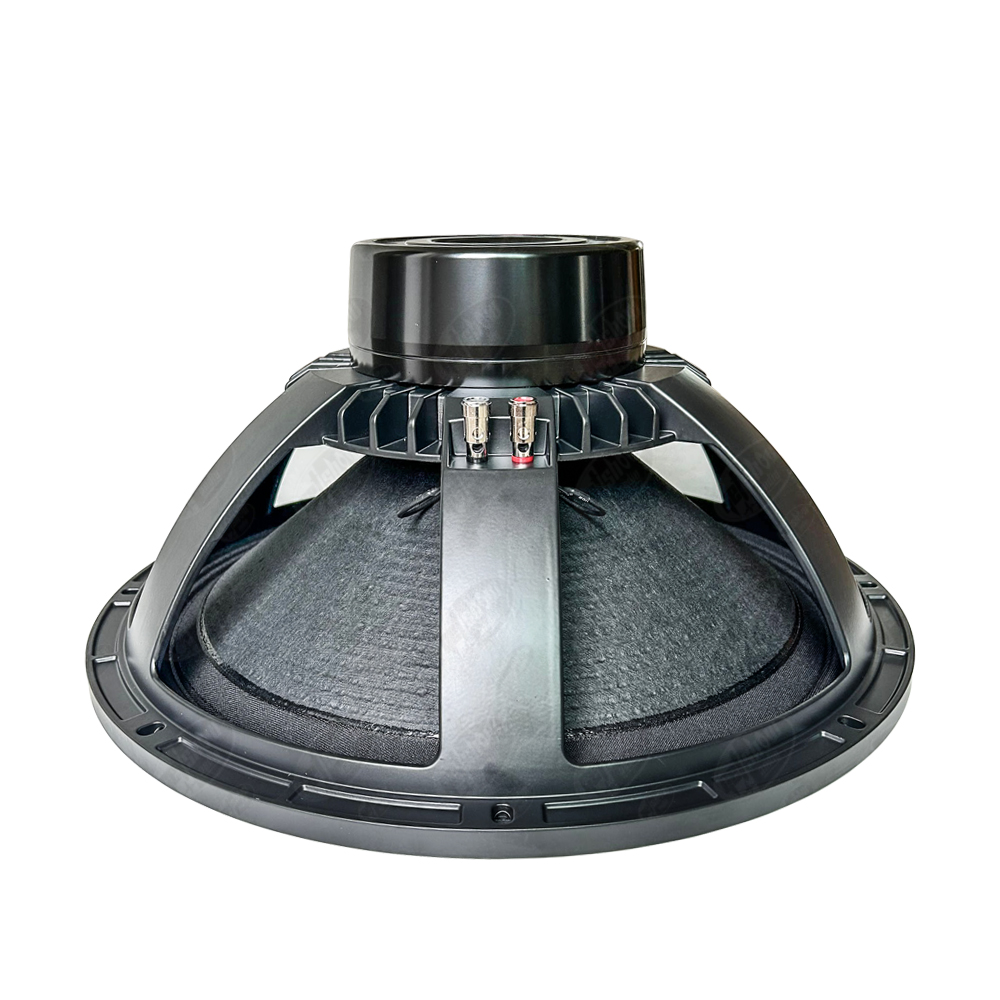

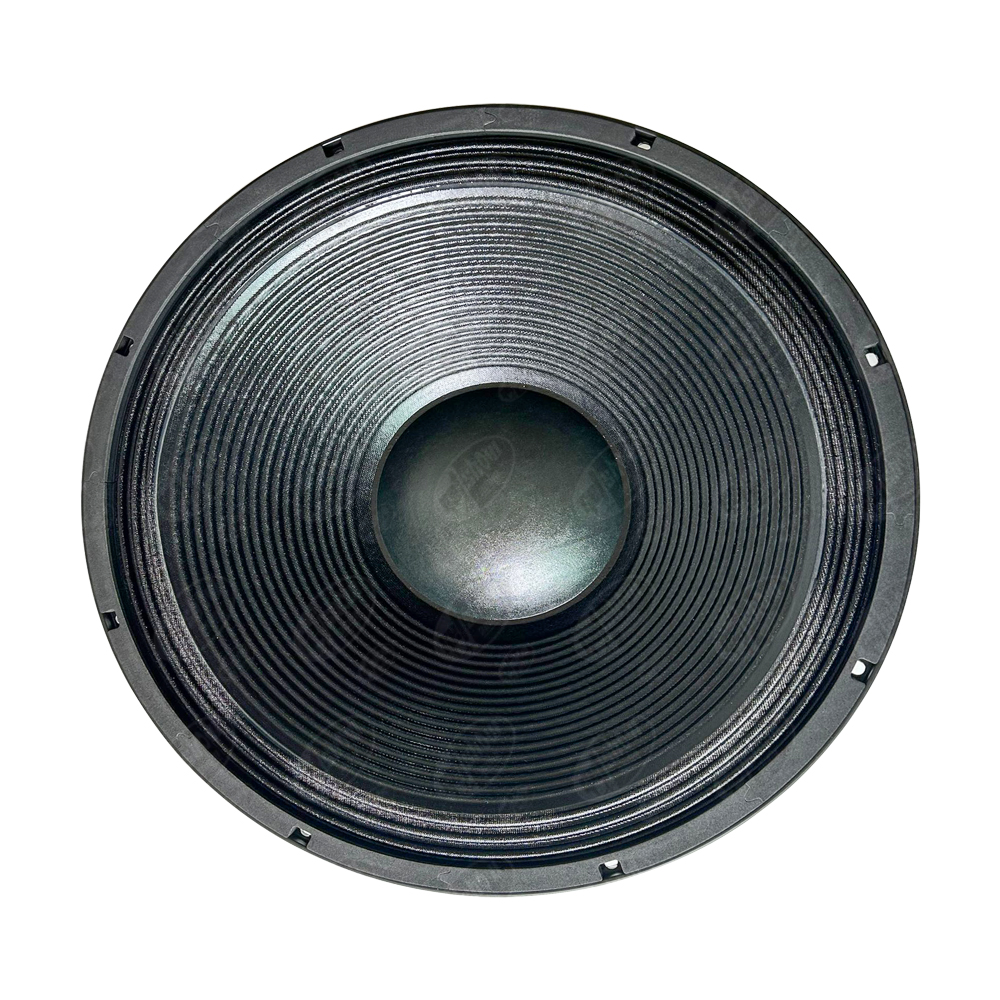

YN1841N-8 18 inch NEO speaker - - -
- 18 inch woofer
- 8 Ohms
- (RMS):1000 Watts
- Voice Coil Diameter: 4 inch
- Product description: YN1841N-8 18 inch 8 ohm 1000 watts woofer speaker LF driver loudspeaker
18inch 8 ohm 2000 watts woofer speaker LF driver loudspeaker
| Specification | Design | |
| Nominal Diameter:18 inch | Surround Shape:Triple Roll | |
| Nominal Impedance: 8 ohm | Cone Shape:Radial | |
| Minimum Impedance: 6.5 ohm | Magnet Type:Neodymium Inside | |
| Continuous Power Handling: 2000 W | Spider:Big roll | |
| Nominal Power Handling(A.E.S.): 1000 W | Pole Design:T-pole | |
| Sensitivity(1W/1m):96.5 dB | Recommended Enclosure Vol:dm3( ft3) | |
| Frequency Range: 45Hz - 2500Hz | Recommended Tuning Frq:45 Hz | |
| Voi:ce Coil Diameter: 99.5mm (4 in) | Parameters | |
| Winding Material:CCAW | Fs :45 Hz | |
| Former Material:Glass Fibre | Re:5.1 ohm | |
| Magnet Material:Neodymium | Qes:0.6 | |
| Winding Depth:30 mm (1.1 in) | Qms:6.5 | |
| Magnetic Gap Depth:13 mm (0.51 in) | Qts:0.55 | |
| Flux Density :1.3 Tesla | Vas:203 dm3( ft3) | |
| Mounting &Shipping | Sd:1250 cm2 ( in2) | |
| Overall Diameter ：460.5 mm (18.13 in) | EtaZero：2.90% | |
| Bolt Circle Diameter ：440 mm (17.32 in) | Xmax：+-12.8mm | |
| Baffle Cutout Diameter ：422.6 mm (16.6 in) | Xvar：+-15 mm | |
| Depth：210.5 mm (8.29 in) | Mms: 137 g | |
| Flange Gasket Thickness：16.2 mm (0.64 in) | Bl：18 TxM | |
| Air volume Occupied by driver：17.7 dm3( ft3) | Le：1.3 Mh | |
| Net Weight：8.8 kg( 19.4 lb) | EBP：82 | |
| Shipping Weight：10.1 kg( 22.27 lb) | ||
| Shipping Box：490*490*280mm (19.3x19.3x11 in) | ||
