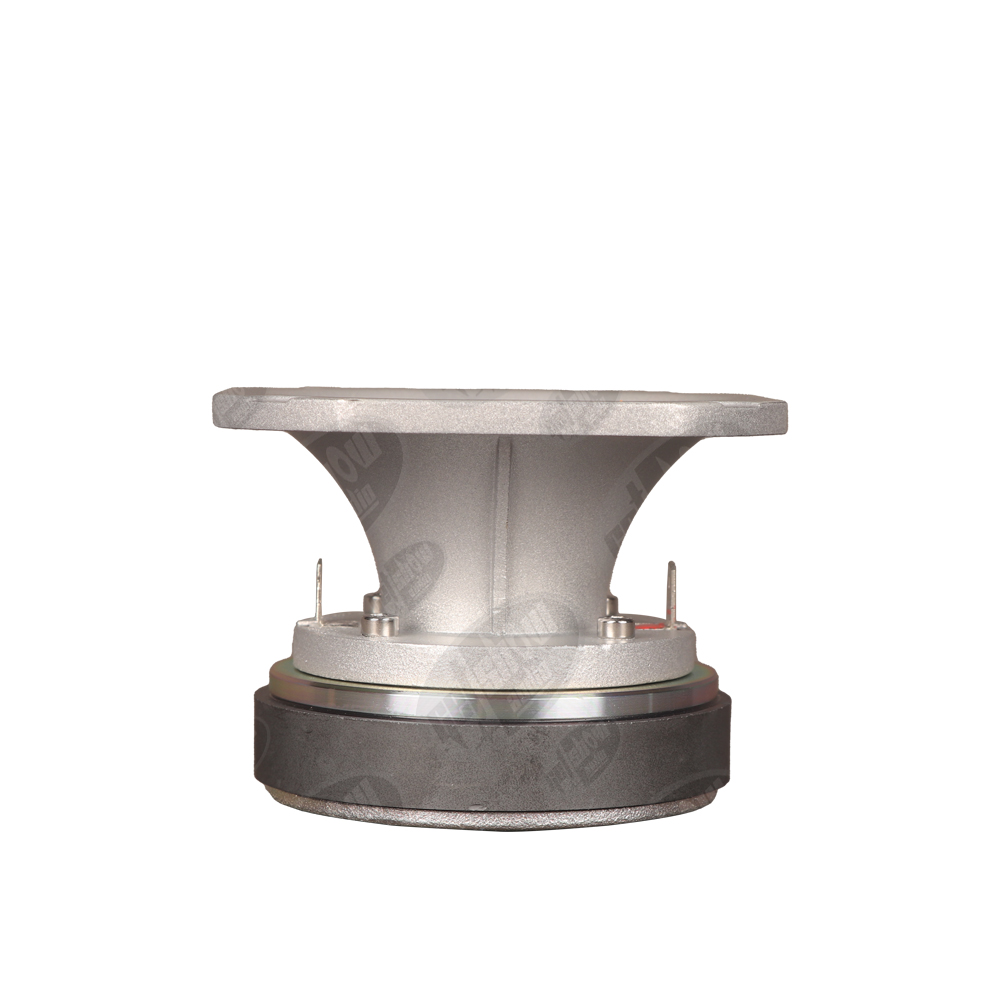

HD3802-38mm Horn Tweeter
- 38mm HF
- 8 ohms
- (RMS): 30 Watts
- Voice Coil Diameter: 1.5 inch
- Product description: HD3802-38mm Horn Tweeter
HD3802-38mm Horn Tweeter/ Compression Driver with Horn/ Horn-loaded Tweeter
| Specification | |
| Throat Diameter | 38 mm （1.49 in） |
| D.C. Resistance | 4.8 Ω |
| Nominal Impedance: | 8 Ω |
| Power handling capacity | 30W ( AES above 2 kHz) |
| Frequency Range | 2 -24 kHz |
| Sensitivity | 106dB±2dB(1W@1m,on-axis on horn) |
| Recommended crossover | 2 kHz (12 dB/oct or higher slope high-pass filter) |
| Voice Coil Diameter | Φ38 mm (1.49in.) |
| Winding Material | Copper Clad Aluminum |
| Diaphragm material | Polymer |
| Magnet Material/Size | Ferrite Ring/Φ90mm×Φ40mmX 15mm |
| Overall diameter | 112x112mm |
| Depth | 77.5mm |

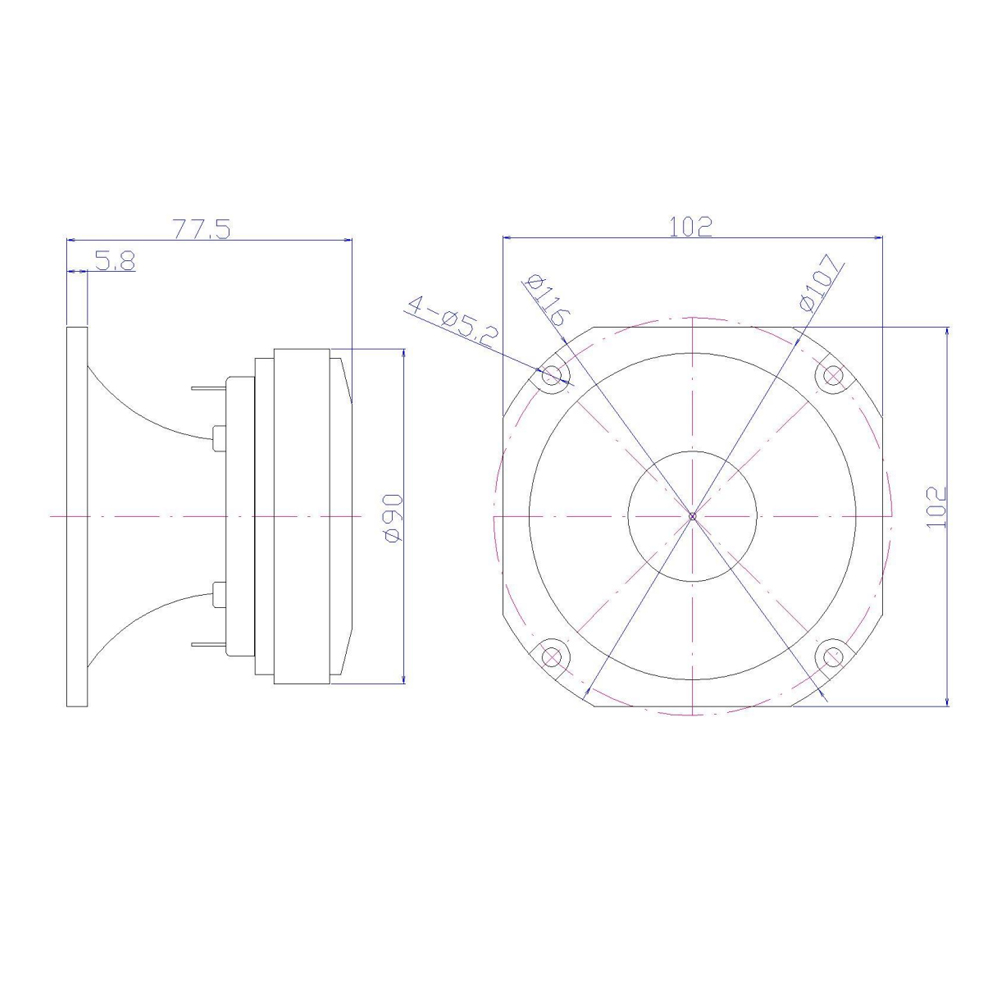

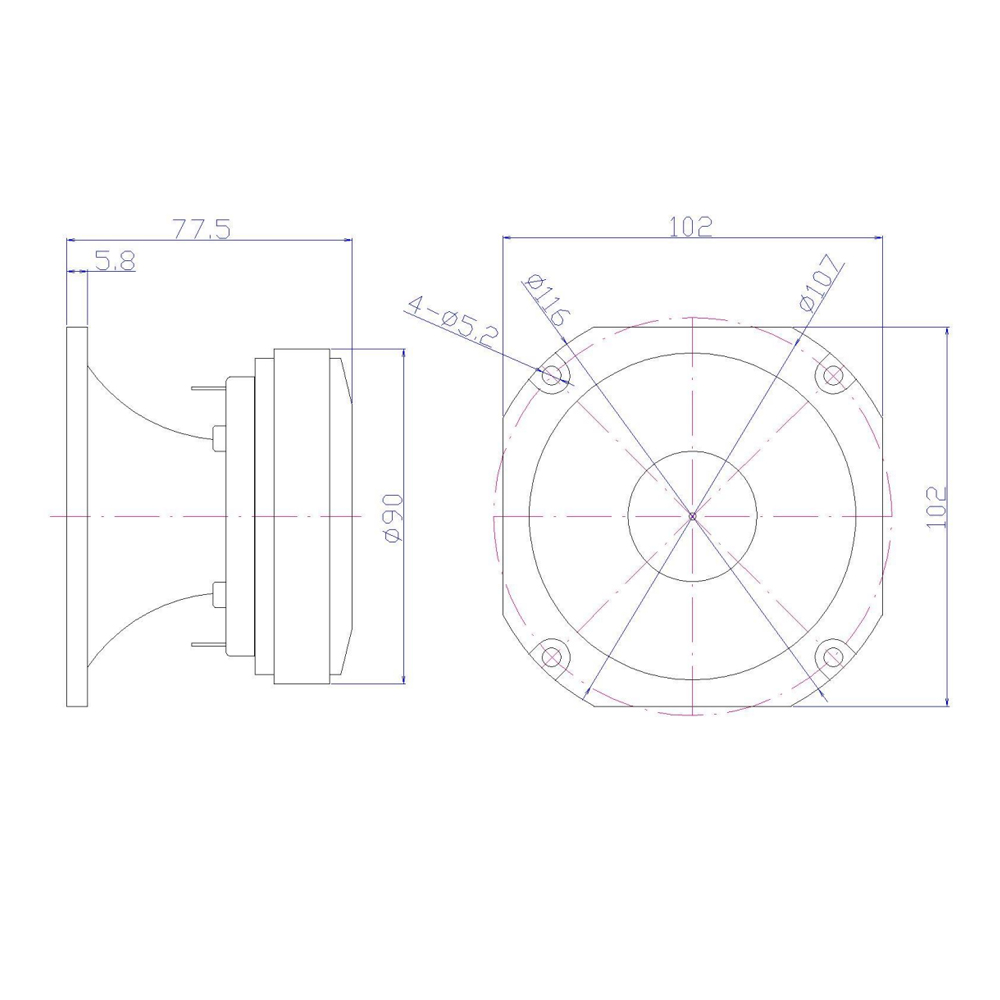

| Mounting | As shown in figure |
| Net weight | 1.13Kg |
