Introduction

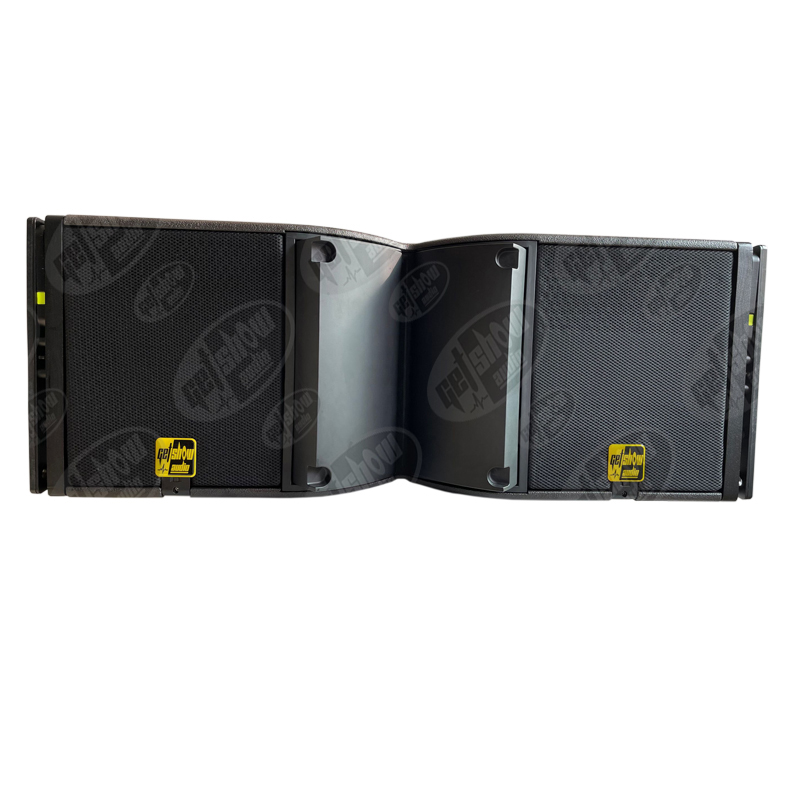

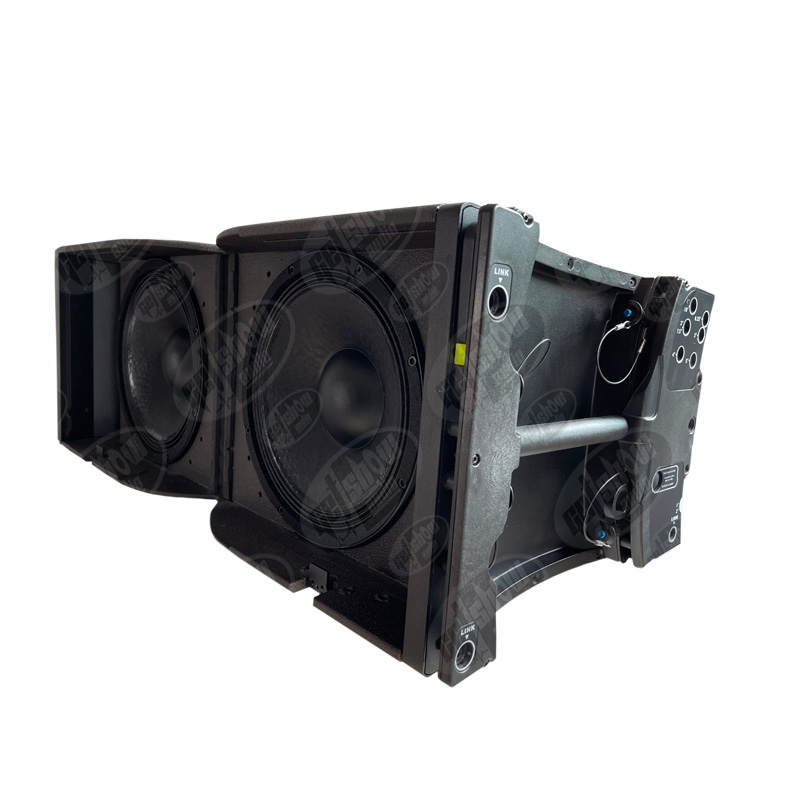

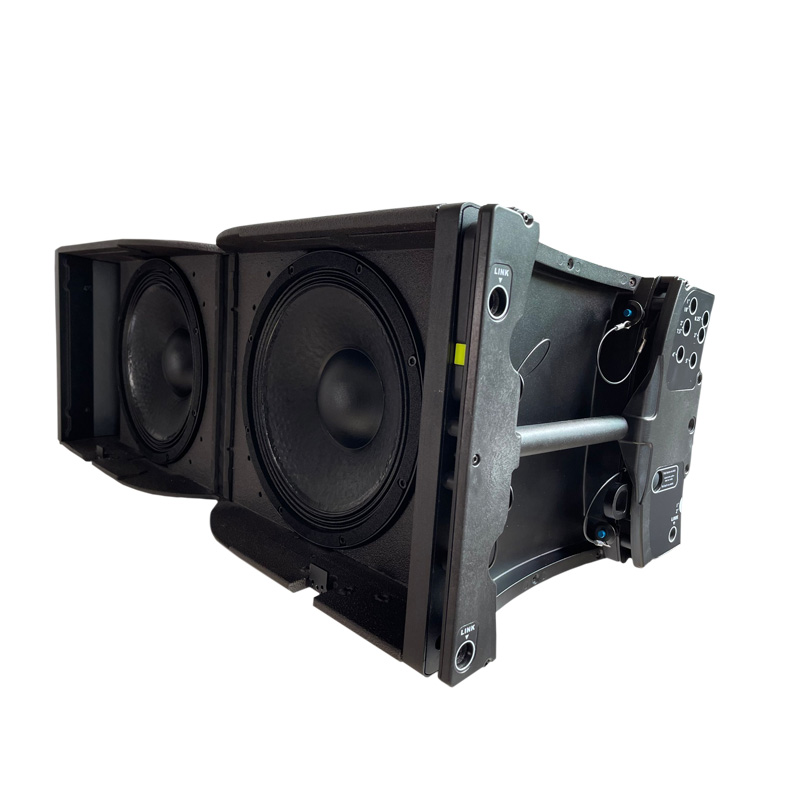

LK3 ----long throw line source



LK3 is a full range line source system designed for mid-sized mobile applications. Housing the components into a compact enclosure, LK3 is ideal for applications that require long throw, reinforced low-frequency contour, broad bandwidth and limited footprint such as live events in mid-sized festivals, and tours, performing arts, corporate events in large exhibition halls or special events. With exceptional bandwidth for its size - 42 Hz - 20 kHz - LK3 can be used as a stand-alone system boasting strong output and innate reinforced LF contour without the need of a own companion subwoofer. For infra reinforcement and augmented LF resources, LK3 can be supplemented by the LKS28 subwoofer. LK3 features to offer four horizontal directivity patterns: 70° or 110° symmetrical or 90° asymmetrical on either side. With inter-element angles ranging from 0° to 10°, a LK3 line source coverage can be precisely tailored to any audience geometry. On its own LK3 can be used as a main system for vocal and music reinforcement in most applications.Deployed with LKS28 subwoofer, LK3 is perfect as a compact main system for demanding live events.



Specification

Usable bandwidth (-10 dB):42 Hz – 20 kHz

Maximum SPL:                      143 dB

Nominal directivity (-6 dB):Horizontal: 70° / 110° symmetric or 90° asymmetric

                                                   vertical: depending on number of elements and array curvature

Transducers:                          LF: 2 × 12″ neodymium cone driver

                                                    HF: 1 × 4″ diaphragm compression driver, neodymium

Nominal impedance:            LF : 8 Ω

                                                    HF : 8 Ω

Connectors:                           2 × 4-point speakON

Rigging and handling:          Flush-fitting 4-point rigging system

                                                    2 handles

                                                    inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°

Weight (net):                         42 kg

Cabinet:                                  Premium grade birch plywood

Front:                                      Coated steel grill
